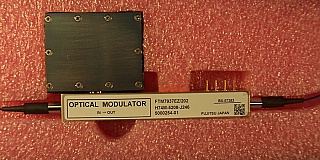

40Gb/s optical amplitude modulator, with modulator driver. 1530-1610nm. Ultra low drive voltage. Dual RF drive (GPPO ineterface). Modulator: Fujitsu model: FTM7937EZ/202; Opnext Assy P/N: 7000215-00. S/N test data "FAIL"
Next image
Zoom image

40Gb/s optical amplitude modulator, with modulator driver. 1530-1610nm. Ultra low drive voltage. Dual RF drive (GPPO ineterface). Modulator: Fujitsu model: FTM7937EZ/202; Opnext Assy P/N: 7000215-00. S/N test data "FAIL"


Not rated yet

S/N test data is lower than required and shows "FAIL", but you may still use it for your research. Only last 3 photos are from actual sample, rest photos are from different sample with same cosmetic condition and part number.

H74M-5208-J246 is also marked on modulator case. FTM7937EZ offers dual RF drive, while FTM7938EZ can only use single RF drive, it is major difference between these two models, rest specifications and performance are very similar, though similar model FTM7938EZ datasheet at 3rd pdf link below and sample test data at the 5th pdf link below are also helpful.  See pinout info at last pdf link below from different sample of FTM7937EZ, we do not have extra technical info.

Assembly of modulator module and modulator driver amplifier module: Opnext Assy P/N: 7000215-00. Description: ASSY, OG3 DRIVER AMP, OPT. MOD.
Modulator module: Fujitsu model: FTM7937EZ/202, P/N: 5000106-00.
Modulator driver amplifier module: P/N: 7000207-00. See modulator driver at the 5th and 6th photos below(in square shape, with dual GPPO input connector and dual GPPO output RF connector at two sides, with 2x12 electrical pins at the bottom.)

We do not know how to use this modulator driver and we cannot find any technical info, you have to do your own research. Or you may unplug this modulator driver and use your own modulator driver instead.

FC/PC PMF connector (we see panda image with fiber scope) at input, LC/PC fiber connector at the output.

Out of stock
  • US$350.00
Add a different product to compare
    CONDITION:

    Signal to Noise Ratio test data in manufacture test sheet in the 6th photo below shows : "FAIL". Though S/N = 8.38 dB is a little lower than expected, it is still ok for research use. New in original product case. With manufacturer test sheet, see the 6th pdf link above. We verified that red light can pass modulator, we cannot do further test.


  • DIM Weight
    1.0000 kg
  • Store Part No.
    OSC-MOD-40Gb-457C
  • Manufacturers
    • Manufacturer
      Fujitsu
