10Gb optic modulator from Nortel system. For 1.55um C-band
Next image
Zoom image

10Gb optic modulator from Nortel system. For 1.55um C-band


Not rated yet

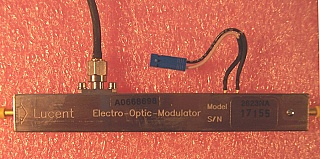

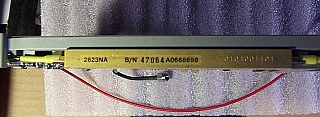

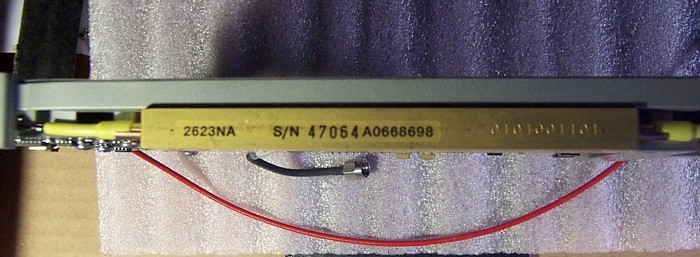

It was standard Lucent 2623NA 10Gb amplitude modulator. It was used in standard Nortel OC-192 long haul system. We have some product publications for standard Nortel OC-192 long haul system which include this modulator info.

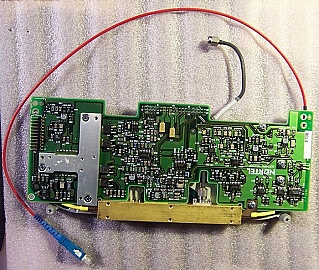

Fusion-spliced with 20mW laser with PMF(price below is for modulator only). With external fiber tap photo detector. With pin-out info. The price only includes 10Gb modulator. Since it is fusion-spliced with laser together, so we prefer to sell together, we cannot reduce price if only for modulators.

There are no fiber connectors at both fiber ends of modulator.

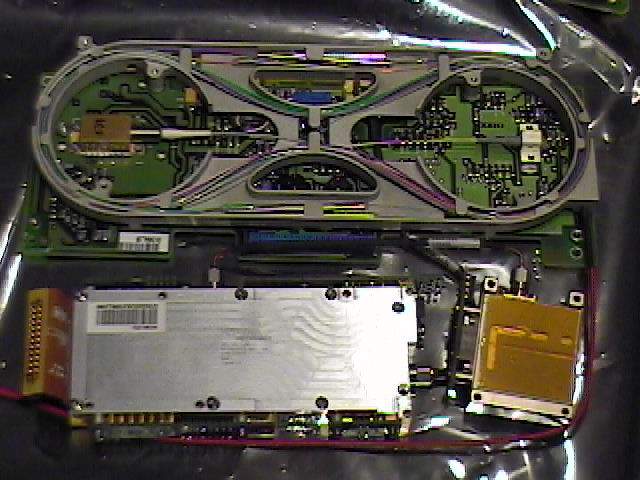

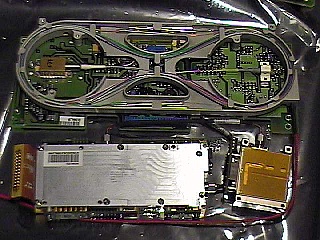

Available OC-192 DWDM Tx cards info on Dec. 28, 2017:
Card type 1: NTCA01HK. SNT3F91CAA. 1541.35nm +/-CHIRP. SC/PC out. 99/07/07 or 00/11/21. 2pc available (1pc of them has only modulator and laser without major PCB).
Card type 2: NTCA01VK. SNT3F04CAB. 1550.92nm +/-CHIRP. SC/PC out. 00/08/17. 1pc available.
Card type 3: NTCA01KK. SNT3F02CAA. 1552.52nm +/-CHIRP. SC/PC out. 00/08/09 or 00/07/20. 2pc available.
Card type 4: NTCA01EK. SNT3F61CAA. 1530.33nm +/-CHIRP. SC/PC out. 00/08/07. 1pc available.
Card type 5: NTCA01QA. SNT4BBJBAA. 1538.19nm +/-CHIRP. FC/PC out. Datecode: 99/05/05. 1pc available.
Card type 6: NTCA01GA. SNT3F8ECAA. 1535.04nm +/-CHIRP. FC/PC out. Datecode: 98/12/15 or 98/05/05. 2pc available.
Card type 9: NTCA01XK. SNT3F05CAA. 1555.75nm +/-CHIRP. SC/PC out. Datecode: 00/08/31. 1pc available.
Card type 10: NTCA01RA. SNT5MGBAAA. 1539.77nm +/-CHIRP. FC/PC out. Datecode: 99/04/24. 1pc available.
Card type 11: NTCA03VA. SNT3EOUCAA. 1550.92nm +/-CHIRP. FC/PC out. Datecode: 99/02/04. 1pc available.

In stock (11 items available)
  • US$285.00
Qty:
Add a different product to compare
    CONDITION:

    to be removed from unused system. We will only verify the fiber is not broken around modulator before shipping, by fiber fault locator.


  • DIM Weight
    1.3000 kg
  • Store Part No.
    OSC-MOD-10Gb-003
  • Manufacturers
    • Manufacturer
      jds
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)
