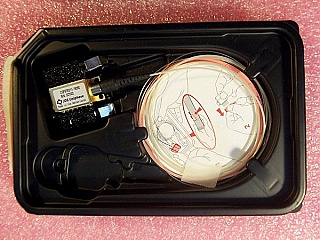

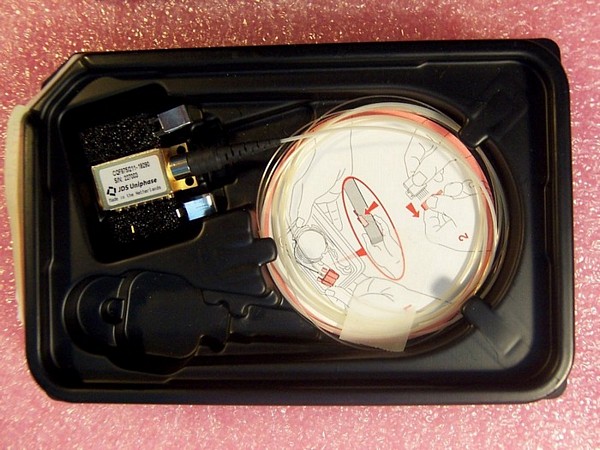

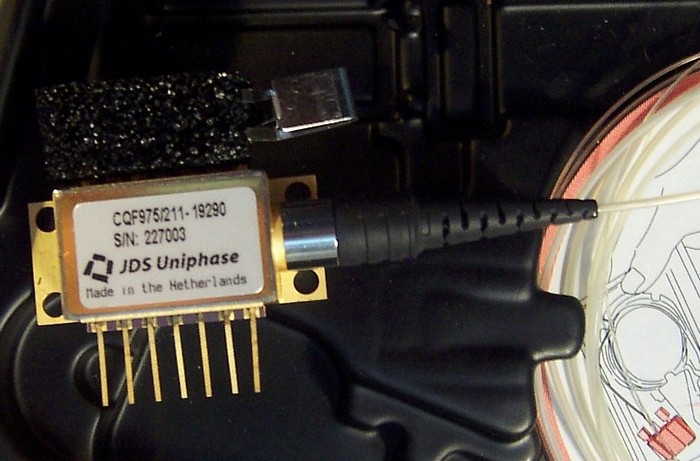

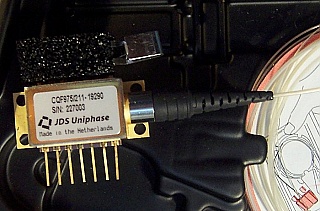

1552nm and 1554nm dual line 14-pin butterfly DFB laser module, Pop=10mW. JDS model: CQF975/211-19290. With FC/PC connector. 'Sell As Is', 'No Return'

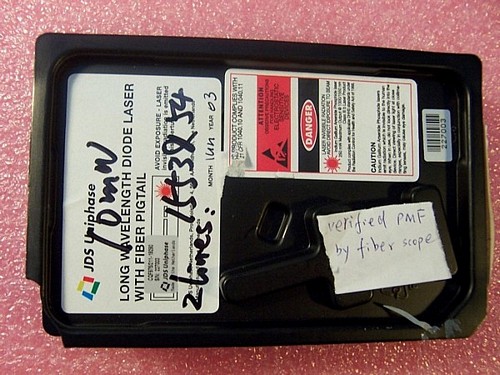

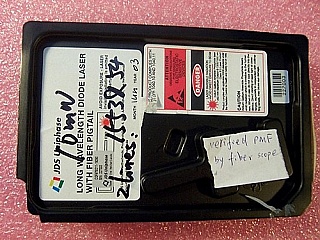

Center wavelength: 1560.61nm. channel number : 19210. With actual testsheet, but test sheet below may be from a different channel code. More wavelengths may be available upon request. With integrated wavelength monitor. 900um-buffered PMF, with FC/PC connector (Connector made by Diamond with high return loss, so it is equivalent to FC/UPC) , PMF connector key is aligned to slow axis (sample verified by our lab). There is a label around fiber connector: "DIAMOND, HPC-S0.6/POL", here "POL" means polarization. The pdf link below is for 20mW version. There are 2 lasing wavelength peaks, 1552nm and 1554nm. See our contractor test data at last pdf link below.900um-buffered PMF.

Similar-model PDF datasheet 20.6 kB
Manufacturer test data of sample 1 20.6 kB
Our lab test data of sample 1 20.6 kB
