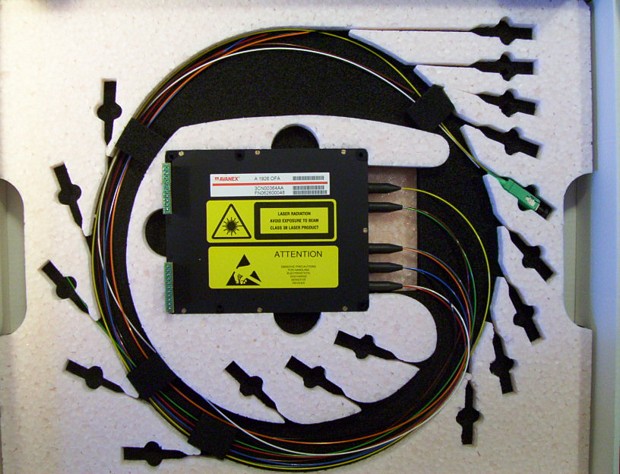

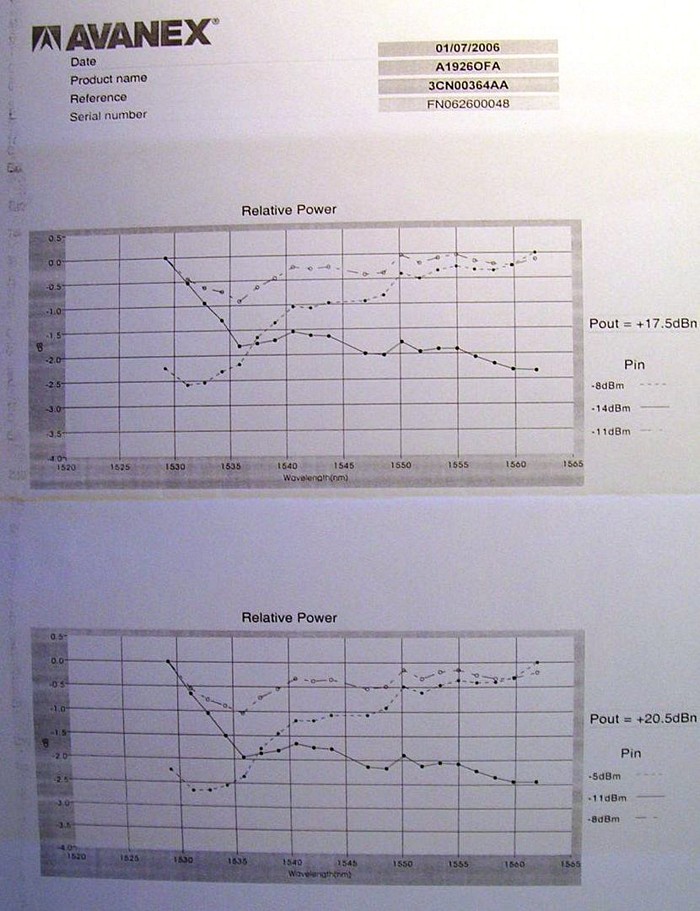

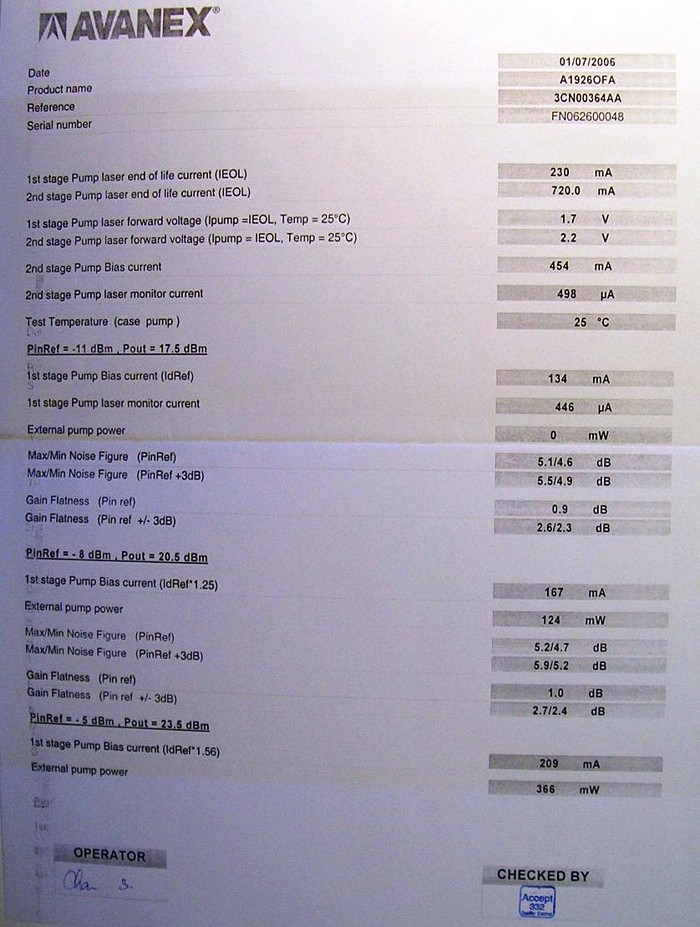

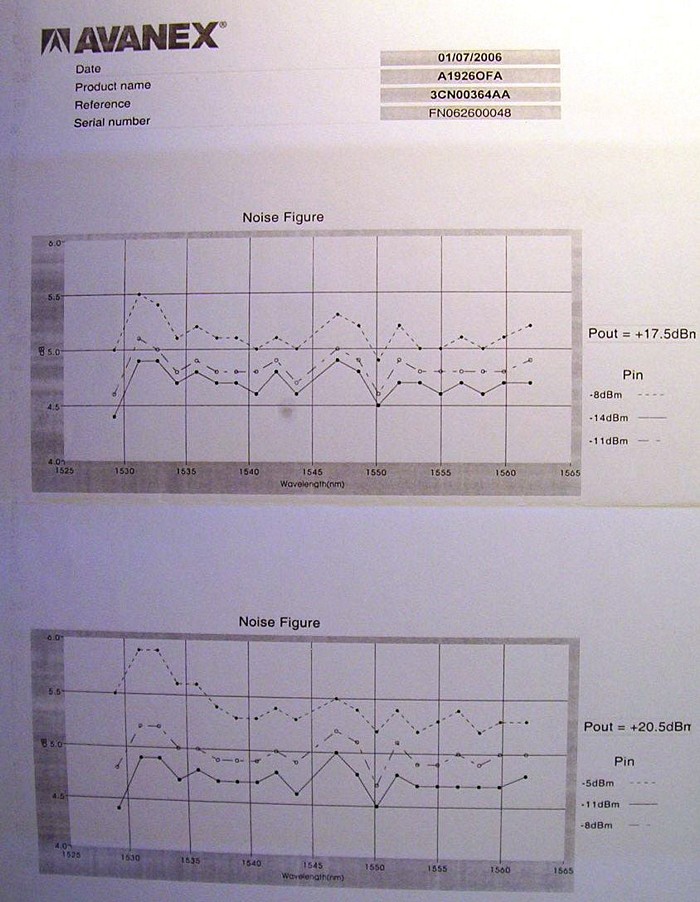

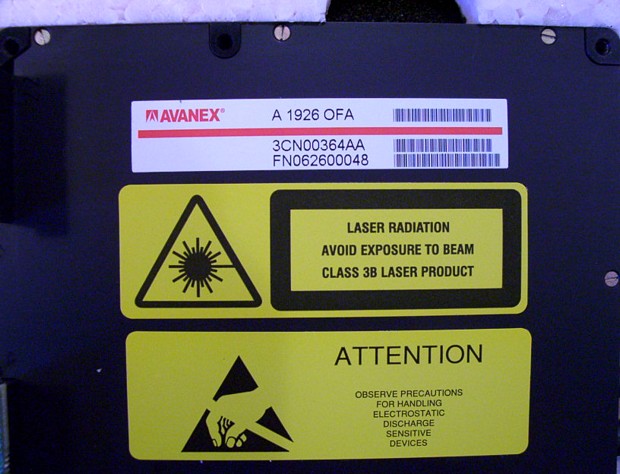

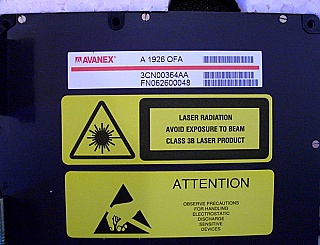

Dual-stage basic unit can offer 17dBm output without external pump, it can also offer 20dBm (at 89mW or higher 1480nm external pump input ) or 23 dBm output (at 275mW or higher 1480nm external pump input, see test sheet). 28dB gain version. At the mid-stage port, it allows to insert 9-dB loss unit, such as DCM, OADM, DGFF, VOA.With one SC/APC fiber connector for external pump input, no other fiber connectorDescriptionThe Alcatel 1926 OFA (Optical Fiber Amplifier) is designed to offer excellent Performance characteristics for WDM systems in the 1529.1 - 1561.8 nm wavelength range.The standard, double-stage 17 dBm unit can be supplemented using external pump modules to achieve outputs of 20 dBm or 23 dBm.A 9 dB mid-amplifier loss port has been designed in to allow for A/DMUX functions, dispersion compensation, etc.Tap couplers at each signal port offer full monitoring capability. The Alcatel 1926 OFA achieves very flat gain in excess of 23 dBm or 26 dBm, while limiting gain excursion to less than 1 dB (typical) over the entire 32.7 nm wavelength range.Optimization of the architecture yields very low typical noise figures less than 5 dB for the 17 & 20 dBm configurations.FeaturesOptimized for D-WDM transmissionDual-stage 17 dBm basic unit can be equipped with external pump modules to offer 20 or 23 dBmLow-noise figure for optimal SNR Flat gain across wide bandwidth rangeIntegrated 9 dB mid-amplifier loss port allows ADM functional customizationPolarization independent & bit-rate transparentOptical isolators at input, monitor taps, and outputs minimize system susceptibility to reflectionCompact, rugged low profile packageApplicationsUsed in telecommunications and Power booster for D-WDM systemsOptical Add / Drop MultiplexerLow-noise in-line amplifier for transport systems.
