1x4 JDS 200GHz mux/demux with upgrade port, 1st ch: 1538.19nm. Model No: DWDM24D3LMN01-003
Next image
Zoom image

1x4 JDS 200GHz mux/demux with upgrade port, 1st ch: 1538.19nm. Model No: DWDM24D3LMN01-003


Not rated yet

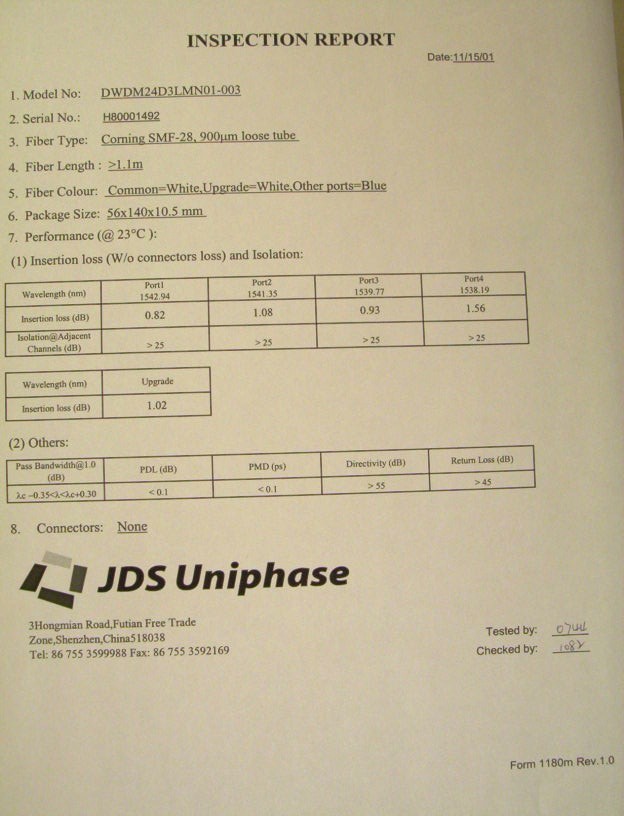

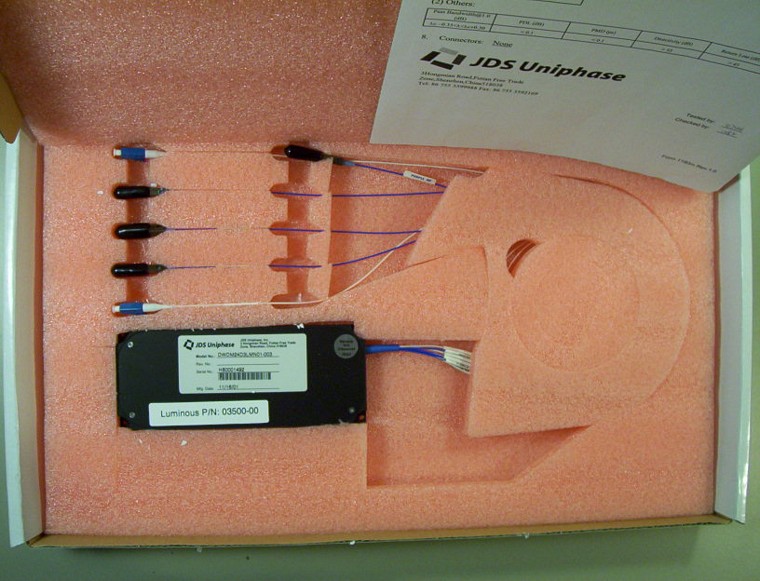

4 mux/demux channel wavelengths: 1538.19, 1539.77, 1541.35nm, 1542.95nm. With individual test sheet. See test sheet in the photo below. Common port and upgrade port are with LC/PC connectors, 4 mux/demux channels are with MU connectors. Supplied for PCI.

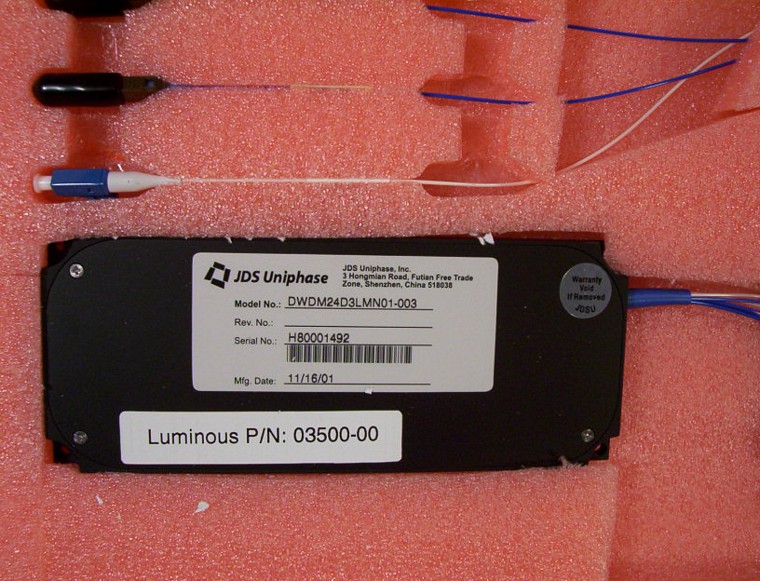

Model No: DWDM24D3LMN01-003. There is character "D" rather than "M" after "DWDM24", which is different from DWDM24M3LMN01-003 of store product code : FFC-MUX-028D, so it seems demux rather than mux.

In stock (Only 4 left in stock)
  • US$120.00
Qty:
Add a different product to compare
    CONDITION:

    new in product box


  • DIM Weight
    1.2000 kg
  • Store Part No.
    FFC-MUX-028C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      jds
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
