7-pin butterfly terminal/socket with clamp, to make 7-pin or 14-pin butterfly laser mount. Azimuth P/N: P/N: 5253-100-7-S
Next image
Zoom image

7-pin butterfly terminal/socket with clamp, to make 7-pin or 14-pin butterfly laser mount. Azimuth P/N: P/N: 5253-100-7-S


Not rated yet

It is same or similar to as the socket used in Newport 740 series and ILX LDM 4980 series 14-pin butterfly laser mounts (see last 2 pdf links below), you may be able to replace the sockets of Newport or ILX laser mount. There are three different pin version/profiles 5253-100-7-S/R, 5253-100-7-S1/R1, 5253-100-7-S2/R2, you have to check your PCB of laser mount to figure out which version fits your PCB.

You may use them to make customized 7-butterfly laser mount, such as 10Gb EML. Price is for one 7-pin terminal/socket only.

It can fit standard prototyping boards and breadboards which pitch (space) is 0.1 inch (2.54cm).


Ideally, you need a 5253-100-7-S and a 5253-100-7-R socket pair to test popular 14-pin butterfly lasers.

We do not have 5253-100-7-R at this moment. For lab project, you  can still use two 5253-100-7-S sockets mounted on a standard prototyping board or breadboard to test a  14-pin butterfly laser.


In stock (250 items available)
  • US$17.50
Qty:
Add a different product to compare
    CONDITION:

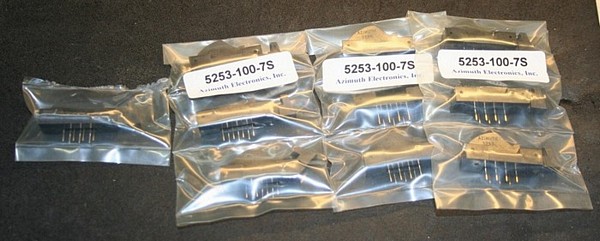

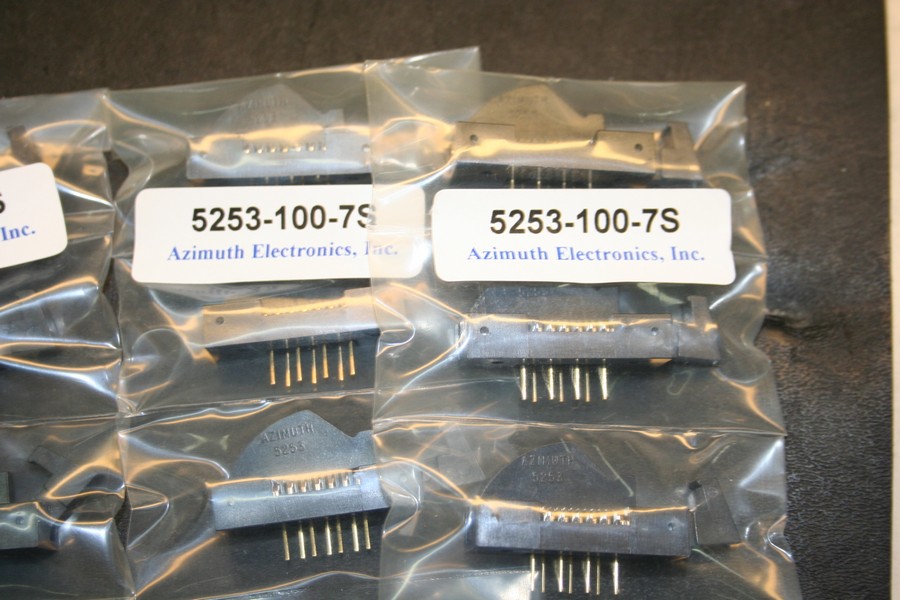

    New individual original plastic bag, as shown at the photos below.


  • DIM Weight
    0.0300 kg
  • Store Part No.
    OTI-LDC-506C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      Azimuth
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
