| Features | Applications | |
| • Low insertion loss and high isolation | • Dense WDM systems | |
| • High stability and high reliability | • nidirectional/Bi-directional systems | |
| • Epoxy-free optical path | • ATV fiberoptic links |
| Channel Number |
|
4/8 |
|
16/20 |
| Central Wavelength |
(nm) |
ITU-T Grid, C-band: 1528 - 1568 , L-band: 1568 -
1610 | ||
| Channel Passband |
(nm) |
|
ITU ± 0.25 |
|
| Passband Ripple |
(dB) |
|
 0.5, typ. 0.3 |
|
| Max. Insertion Loss |
(dB) |
2.0/3.0 |
|
3.5/4.0 |
| Adjacent Channel Isolation |
(dB) |
|
 30 |
|
| Non-adjacent Channel Isolation |
(dB) |
|
40 |
|
| Wavelength Thermal Stability |
(pm/°C) |
|
1.0 |
|
| Insertion Loss Thermal Stability |
(dB/°C) |
0.007 |
|
0.008 |
| Polarization Dependent Loss |
(dB) |
0.15 |
||
| Return Loss |
(dB) |
45 |
||
| Operation Temperature |
(°C) |
|
-5 ~ +65 |
|
| Storage Temperature |
(°C) |
|
-40 ~ +85 |
|

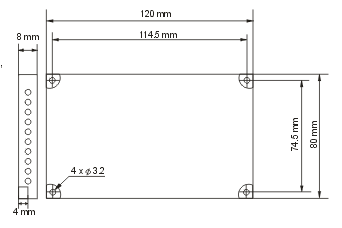

| Package Dimensions |
(mm)3 |
120 × 80 × 8 |
|
120 × 80 × 15 |
Click
here for LGX dimensions
- - - - Connectors: LC/PC,
MU/PC, E2000/APC, E2000/PC, FC/APC,
