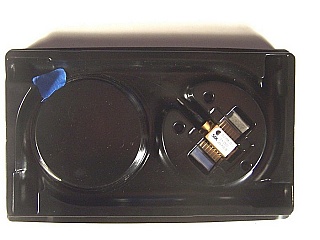

0.98um >125mW kink-free pump laser with FBG stabilizer. JDSU(SDL) product code: SDLO-2564-125-CJ.
Next image
Zoom image

0.98um >125mW kink-free pump laser with FBG stabilizer. JDSU(SDL) product code: SDLO-2564-125-CJ.


Not rated yet
115mW output operating power. With 250um bare fiber without fiber connector.The JDS Uniphase 2500 Series 980 nm pump module is currently deployed in many of today’s DWDM systems and CATV distribution systems. This module has proven reliability with Telcordia GR-468-CORE qualification and more than 100 million field deployed hours of operation.The 2500 Series pump module uses fiber Bragg grating stabilization to “lock” the emission wavelength and provides a noise-free narrow band spectrum even under changes in temperature, drive current and optical feedback.Key Features• High kink-free powers to 170 mW• Fiber Bragg grating stabilized• Wavelength selection available• Superior tracking error and tracking ratio• Integrated TEC and thermistorApplications• DWDM EDFAs• High bit rate, high channel count EDFAs• CATV distribution
Out of stock
  • US$186.00
Add a different product to compare
    CONDITION:

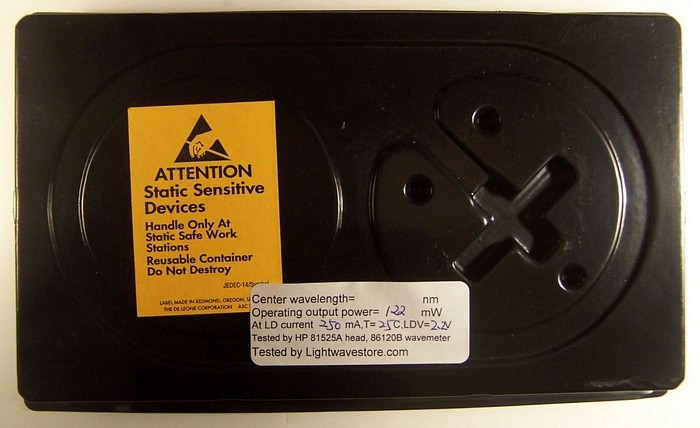

    Unsued in original product case. Fiber is very long with FBG stablizer. Without manufacturer test sheet. Verified good at our lab, see our rest result at the label of 2nd photo below .

  • DIM Weight
    0.3500 kg
  • Store Part No.
    OSC-PUMP-980-021H
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      SDL
