0dBm 1.55um laser source, handheld. Made by Wave Optics
Next image
Zoom image

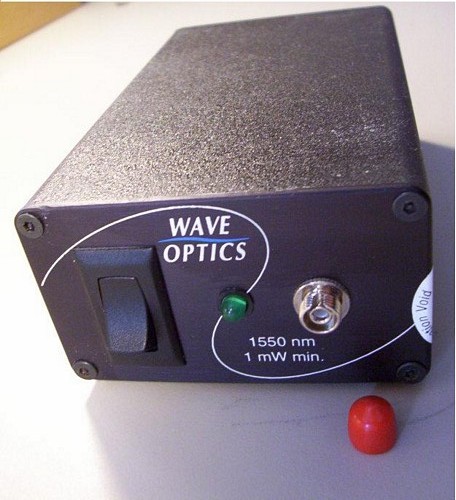

0dBm 1.55um laser source, handheld. Made by Wave Optics


Not rated yet

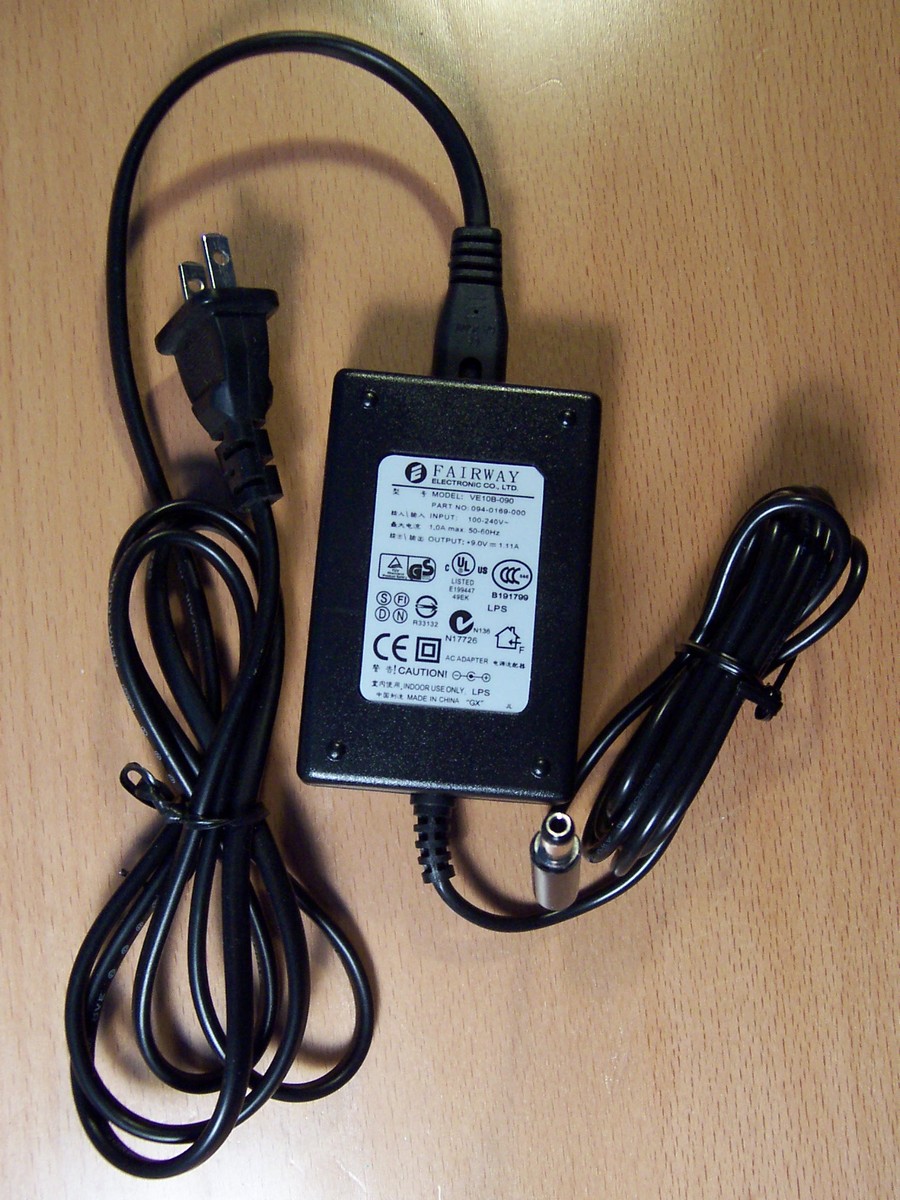

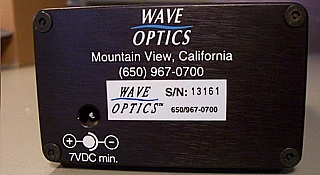

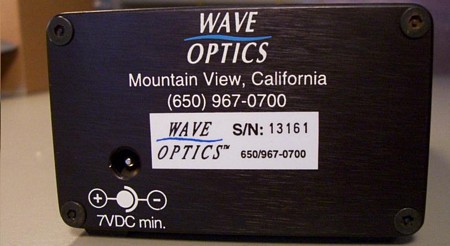

Tested >=0dBm with SMF jumper. Peak is around 1555nm. FP multimode lasing. FC fiber interface. We verified that DC power socket is 2.5mm type. There is Wavelength-electronics LDD200-1M laser driver module (see specification at the last pdf link below) inside the system, so it needs 5V - 12V DC power supply (not attached in this sale), but actually it is requires min 7V. You can use Wavelength-Electronics PWRPAK series power supply, see specification at the 1st pdf link below, or equivalent power supply with equivalent or better regulation and ripple specification (We tried CUI P/N: DPR090080 power supply, working well). It comes with a new replacement 12V power supply, Fairway VE10B-090, see last photo below, low ripple, verified working well. So this laser source is ready for you to use.
In stock (Only 1 left in stock)
  • US$175.00
Qty:
Add a different product to compare
    CONDITION:
    multimode laser 1555 or 1556nm peak, drift <0.02dB within 1 minute

  • DIM Weight
    0.4500 kg
  • Store Part No.
    OTI-Tx-S-003C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      Wave Optics
