1.31um Digital DFB Laser Module, 10 Gb DML Module, model:1861A
Next image
Zoom image

1.31um Digital DFB Laser Module, 10 Gb DML Module, model:1861A


Not rated yet

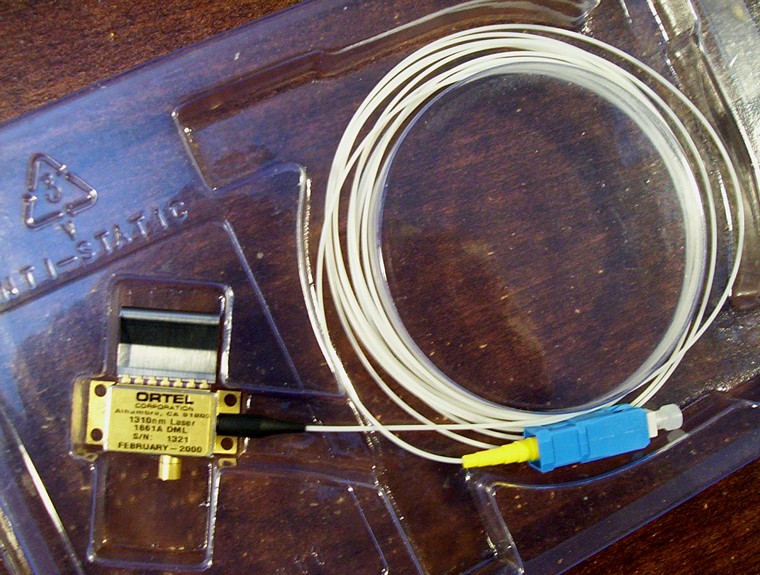

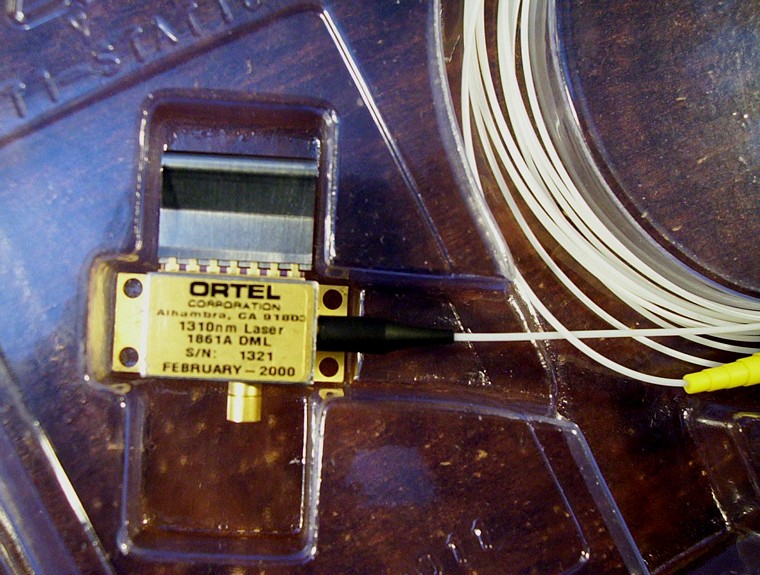

With SC/PC connector. by Ortel(sold to Lucent Agere), See pdf link below for general datasheet for model 1861. The electrical pin is wider than the slot of 14-pin butterfly laser mount. We use two wire clamps directly connect to DC bias of laser controller, without applying TEC. Below is the test result at our lab by OSA (RBW of OSA =0.5nm)Ith=15mA. Pop=6.9dBm and peak WL =1316.8nm at Iop=Ith +30mA =45mA
Out of stock
  • US$350.00
Add a different product to compare
    CONDITION:
    unused in original case

  • DIM Weight
    0.5000 kg
  • Store Part No.
    OSC-LDS-D1300-001
  • Manufacturers
    • Manufacturer
      Ortel
