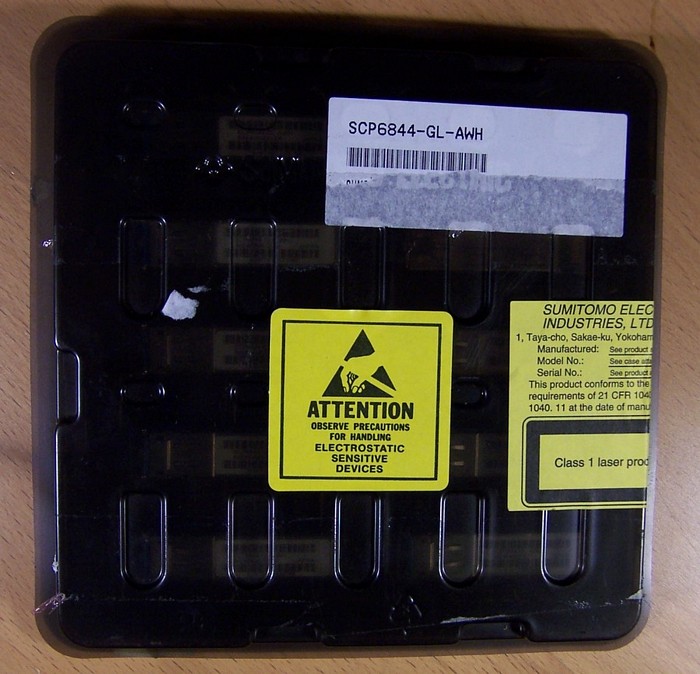

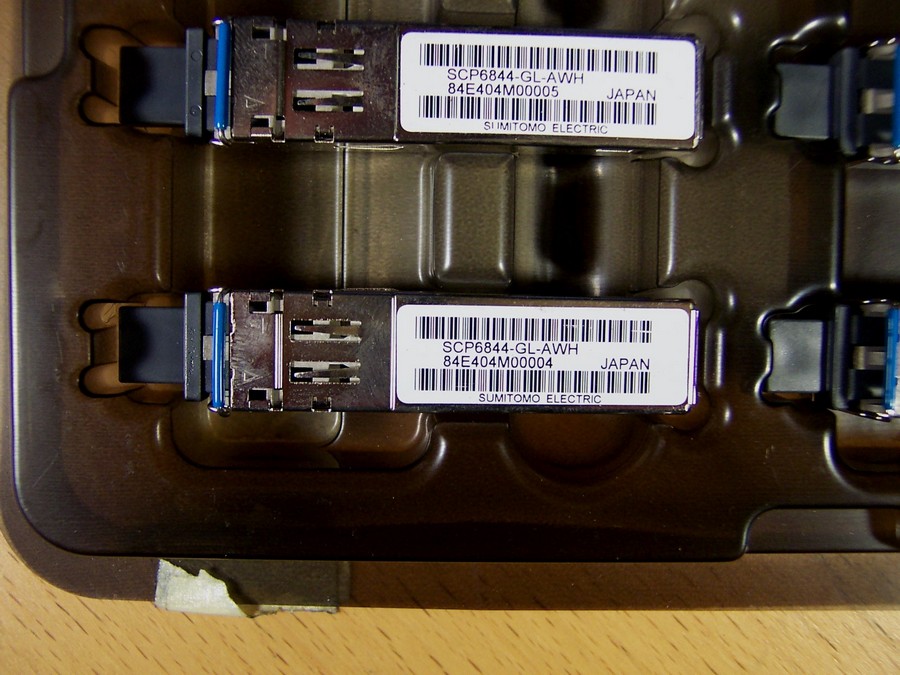

1.3um 1.06Gb/1.25Gb FP-laser SFP transceiver. -6/-7 dBm typical, SMF/MMF. Duplex LC/PC interface. SUMITOMO P/N: SCP6844-GL-AWH

Features
* 1.0625GBd Fibre Channel 100-SM-LC-L FC-PI Rev.13 Standard Compliant
* Compliant with SFP MSA ( Alternative options available ) and IEEE802.3 1000Base-LX Ethernet.
* SFF-8472 rev9 compliant diagnostic monitoring implemented. (SCP6844-GL-##E, SCP6844-GL-##H)
* Power Supply Voltage Single +3.3V
* Compact Package Size 56.5 X 13.7 X 8.6 mm
* Electrical Interface AC coupled for DATA, LVTTL for Tx Disable, open collector output for LOS and Tx Fault.Circuit ground is internally isolated from frame ground.
* Distance <10km ( SMF ) (*1) <550m ( MMF ) (*1)
*1 Use optical cables that meet IEEE standards.
* 1310nm FP-LD
* Fiber Coupled Power -9.5 to -3dBm ( SMF ) -11.5 to -3dBm ( MMF ) (*2)
*2 Transmitter shall be coupled through a single mode fiber offset-launch mode-conditioning patch cord.
* Input Power Range -20.5 to -3dBm
* Connector Interface LC Duplex Connector
* Serial ID Functionality
* Alarm and Warning Flags (SCP6844-GL-##E, SCP6844-GL-##H)

PDF datasheet 20 kB
