1.3um 2.5Gb 0.5dBm DFB-laser transmitter module. Model: SDT8018-TD-QN
Next image
Zoom image

1.3um 2.5Gb 0.5dBm DFB-laser transmitter module. Model: SDT8018-TD-QN


Not rated yet

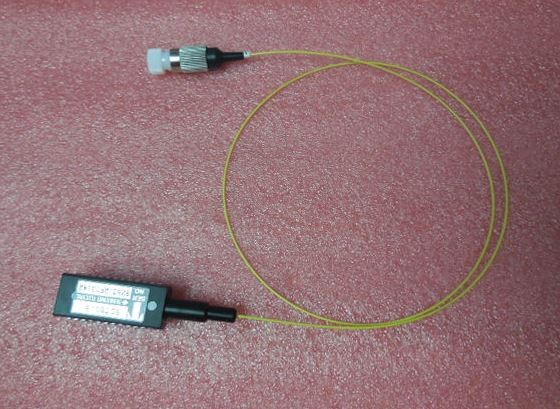

With FC/PC connector in 900um-buffer SM fiber (verified SMF under fiber scope).
* Output Power : -2 dBm min, 3.0dBm max.
* Center Wavelength: 1280nm min, 1335nm max
* Spectral Width (-20dB): 1nm max (so it is DFB laser)

Features of SDT8018-T_-Q_ are listed below:
* SDH STM-16 L-16.1 / SONET OC-48 LR-1 Compliant
* Power Supply Voltage Single +5V ( or -5V )
* Low Power Supply Current 150mA (typ.)
* Compact Package Size 36 X 15 X 9 mm
* Pin Configuration 24 pin Dual in Line
* Uncooled Laser Diode with Automatic Optical Power Control Circuit
* Laser Diode 1300nm InGaAsP / InP, FP-LD
* Optical Output Shut-down Function (Disable Function)
* Laser Bias Current Alarm Function.
* Laser Bias Monitor / Rear Facet Monitor Function.
* Clocked / Non-clocked mode selector
* Optical Connector Interface FC/PC connector

In stock (Only 2 left in stock)
  • US$30.00
Qty:
Add a different product to compare
    CONDITION:

    new in product case


  • DIM Weight
    0.4100 kg
  • Store Part No.
    OMS-Tx-1300-030C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      Sumitomo
