1.55um C-band 10Gb and up to 11.1Gb intensity LN modulator, dual drive, without RF connectors. To be removed from unused systems. Fujitsu P/N: H74M-5208-J098
Next image
Zoom image

1.55um C-band 10Gb and up to 11.1Gb intensity LN modulator, dual drive, without RF connectors. To be removed from unused systems. Fujitsu P/N: H74M-5208-J098


Not rated yet

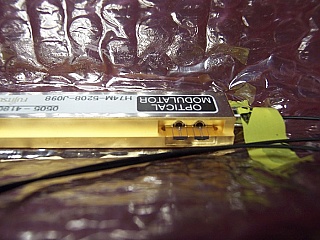

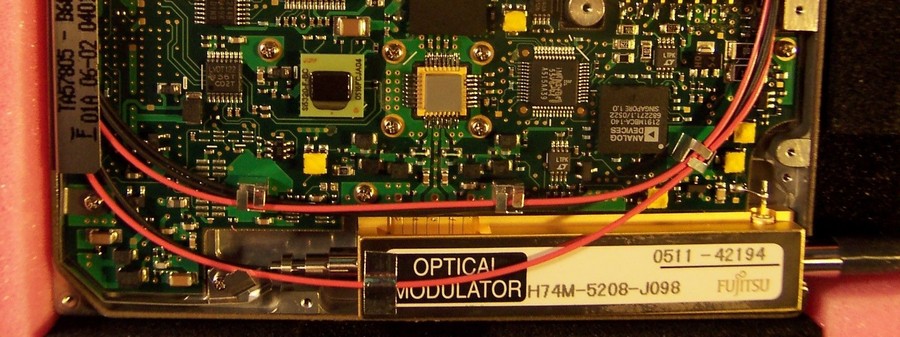

It is inside of unused 10Gb transponder subsystem of Store Product CODE OMS-TRx-1550-026E (see photos 2-4). Dual-drive 10Gb modulator (Fujitsu P/N: H74M-5208-J098 for transponder models FIM83011/5252W9xxx and FIM83011/5352W9xxx), (Fujitsu P/N: H74M-5208-J131 for transponder model FIM83011/5052W9xxx has been sold), it looks similar to FTM7921ER, except that two RF ports are without connector interface, two RF copper stripes are soldered on PCB, the other 3 soldering points around RF solderings are ground, as shown at the 5th, 6th, 7th photos. Fibers are in 900um buffer, input PMF fiber is without connector in black color, 0.7 meter long. Output SMF fiber is with MU connector(with boot parts in small bag, so connector is in full kit) in blue color, one meter long.

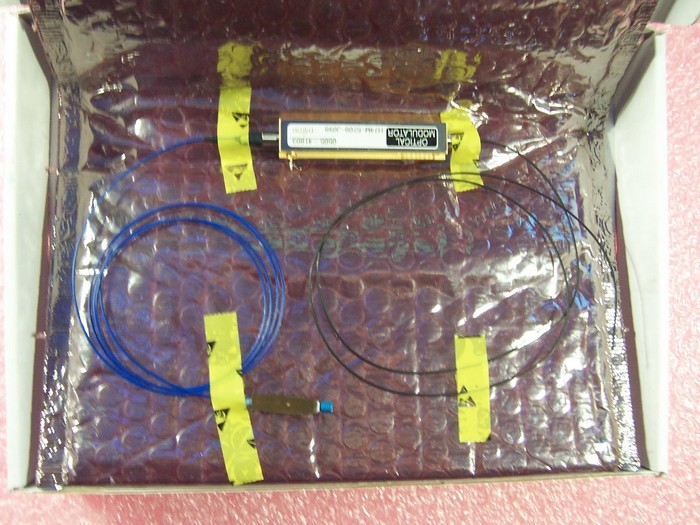

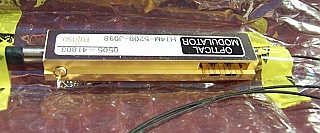

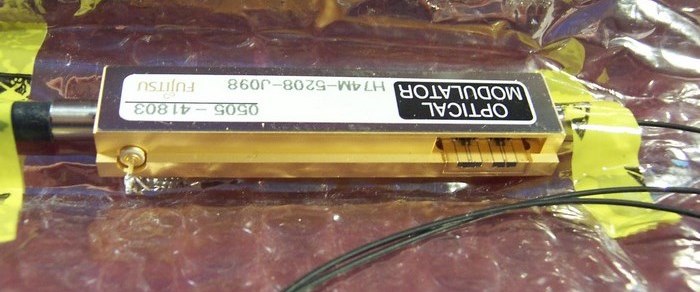

We will remove laser and receiver from transponder module and sell rest with PCB to you as modulator, or only modulator (see last 3 photos).

It looks like the modulator cannot match GPPO cable directly.

Store Part No. Choose option with PCB or without PCB Qty Price Buy
OSC-MOD-10Gb-016Q1 Modulator with PCB 0 US$100.00 Out of stock
OSC-MOD-10Gb-016Q2 Modulator without PCB (see last 3 photos above) 0 US$100.00 Out of stock
Add a different product to compare
    CONDITION:

    It comes with PCB which will be removed from unused long-reach 10Gb (up to 11.1Gb based on manufacture test data) transponder subsystem. We will remove laser module (Sell as Store Product Code: OSC-LDPM-C-014S) and FRM5N141GW receiver module(This up-to-12.5Gb receiver sell as Store Product Code ODC-Rx-10Gb-030N), then you will have rest of parts of transponder subsystem including whole PCB. Input fiber will be quite long, cut from the fusion splice point between modulator and laser fiber.


  • DIM Weight
    1.2000 kg
  • Store Part No.
    OSC-MOD-10Gb-016Q1
  • Choose option with PCB or without PCB
    Modulator without PCB (see last 3 photos above), Modulator with PCB
  • Manufacturers
    • Manufacturer
      Fujitsu
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
