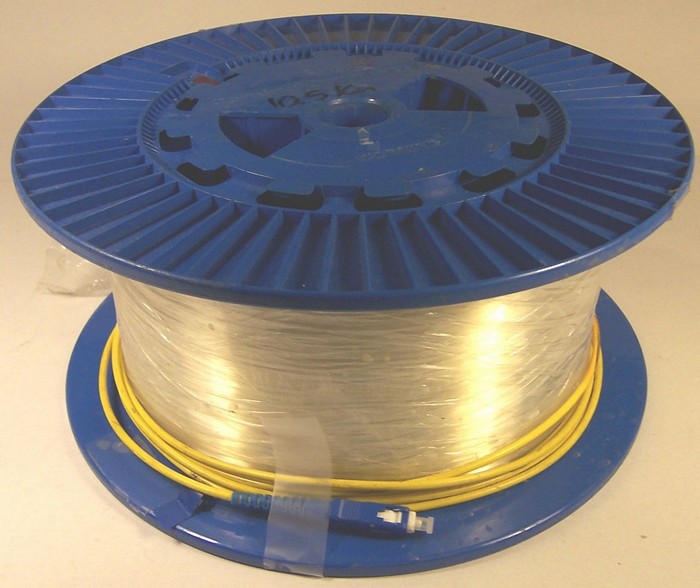

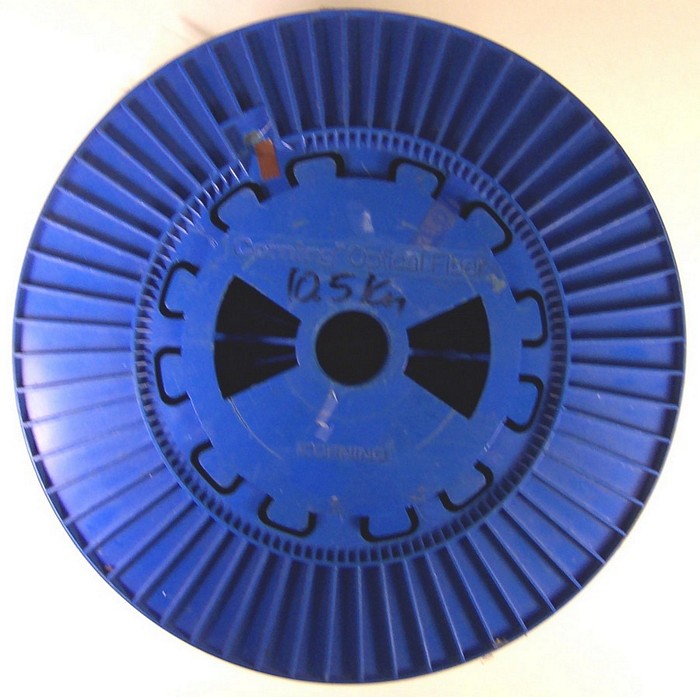

10.56km SMF-28 bare fiber spool, with one SC/PC connector. Internal fiber end is not accessible
Next image
Zoom image

10.56km SMF-28 bare fiber spool, with one SC/PC connector. Internal fiber end is not accessible


Not rated yet
Internal fiber end is not accessible, so you cannot use it for optical transmission test. With SC/PC fiber connector in 3mm cable at external fiber end of spool. See year 2002 datasheet in 1st pdf link and year 2000 datasheet in 2nd pdf link below.
Out of stock
  • US$160.00
Add a different product to compare
    CONDITION:

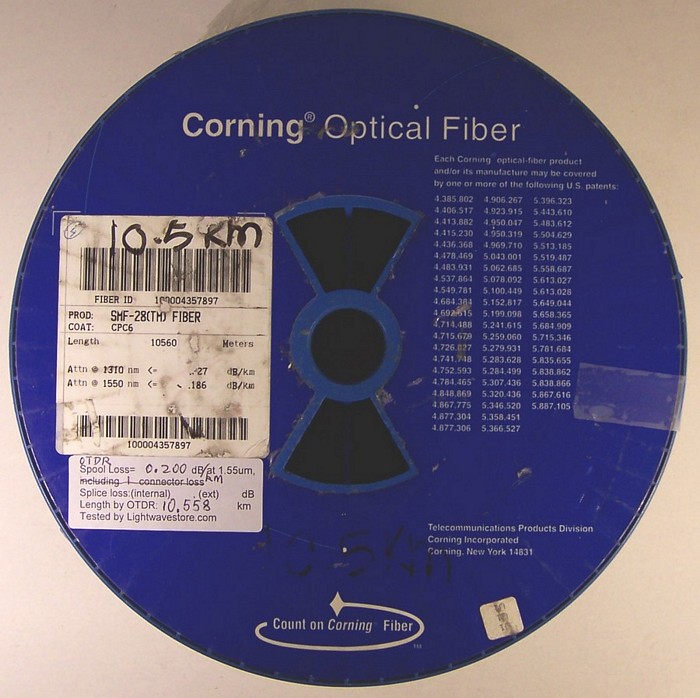

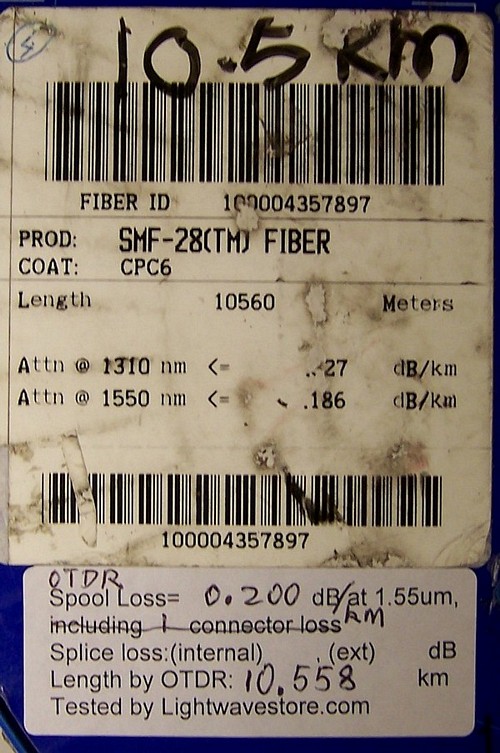

    Fiber roll looks ok. Tested fiber length is very close to 10.56km by OTDR at our lab, which is within instrument accuracy, considering the factors of group index of refractive deviation (we set Neff as 1.4682) and extra fiber pigtail length spliced on each end of fiber spool. So fiber length 10.56km is approximately verified. Fiber attenuation (dB/km) was verified good. See our length and attenuation test result at the label of last photo below.

  • DIM Weight
    7.3000 kg
  • Store Part No.
    FSC-SMF-SPOOL-062E
  • Manufacturers
    • Manufacturer
      Corning
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
