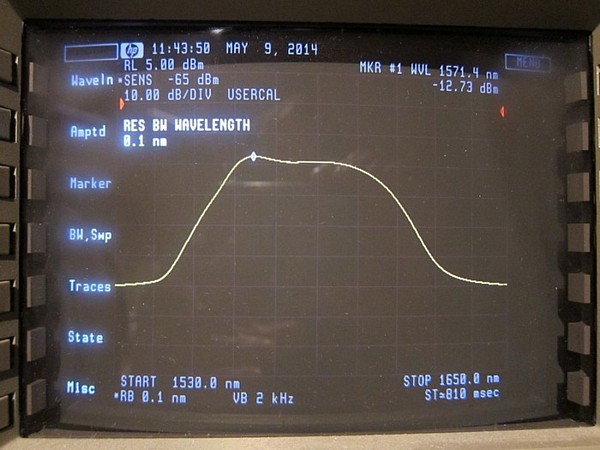

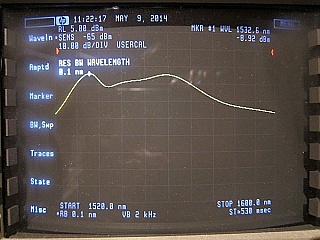

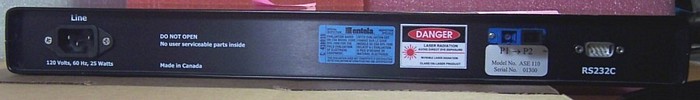

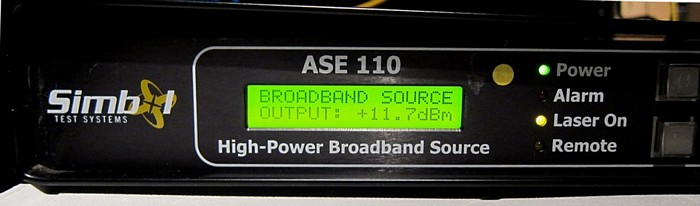

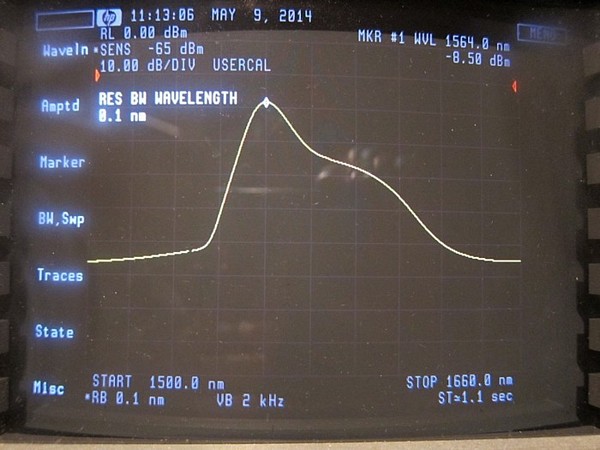

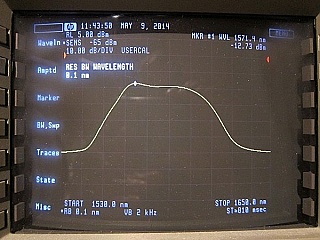

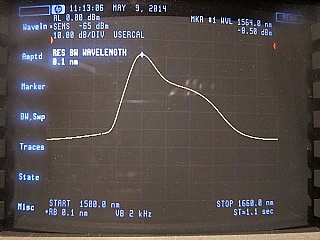

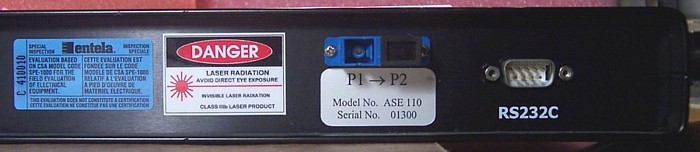

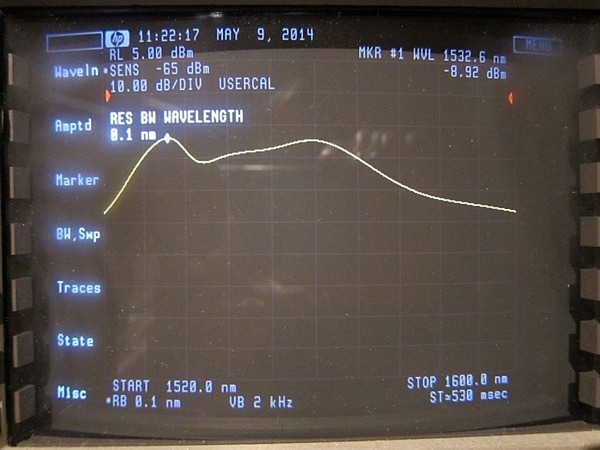

11.7dBm optical output, SC/PC interface, Peak around 1560nm, 3 optical output ports at same time. Front panel output: 11.943dBm 1564nm narrow band (power is tested by power meter), see OSA spectrum at 7th and 8th photos below. Port 1 of rear panel: C-band plus lower power L-band, total 7.97dBm, see OSA spectrum at 9th photo. Port 2 of rear panel: L-band only, around 1580nm, total 12.286dBm, see OSA spectrum at 10th photo. (OSA wavelength and amplitude is not fully calibrated).

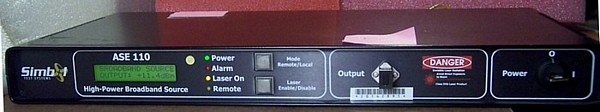

The ASE-110 is an ultra-wide, high-power,broadband source spanning both the erbium C and L bands. It utilizes amplified spontaneous emission (ASE) from diode-pumped Er3+ doped fiber to produce unpolarized light output spread over a 40-nm band centered at 1590 nm. With its broad, quasi-flat emission spectrum and eye-safe wavelength, the ASE-110 is well suited for a wide range of applications. These include wavelength-dependent loss and PMD measurements of DWDM-system components, gain and gain-flatness measurements of EDFAs, local networking by spectral slicing, fiber-optic sensors and white-light interferometry. An RS232 bus option is available.
