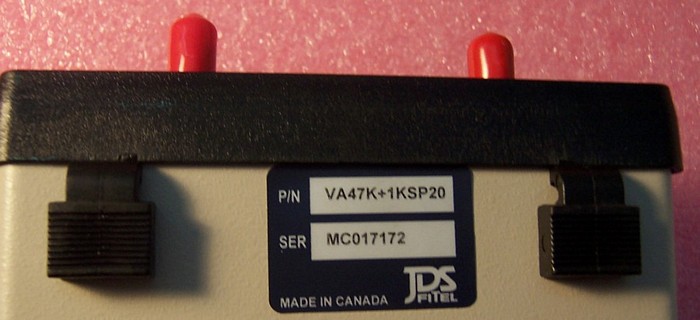

1300nm/1550nm Manual Variable attenuator, with 2 ST optical adapters. JDS VA4 series. JDS P/N: VA47K+1KSP20
Next image
Zoom image

1300nm/1550nm Manual Variable attenuator, with 2 ST optical adapters. JDS VA4 series. JDS P/N: VA47K+1KSP20


Not rated yet

9um/125um fibers. With 9V battery. See photos for actual equipment.

 Key Features & Benefits
• Precision attenuation
• Two calibration wavelengths
• Low insertion loss
• Return loss > 60 dB
• Very long battery life
• Portable for field use
• Optional universal connector adapter

Applications
• Optical power control
• Receiver testing
• Field system testing
• Power meter linearity checks

In stock (Only 1 left in stock)
  • US$360.00
Qty:
Add a different product to compare
    CONDITION:

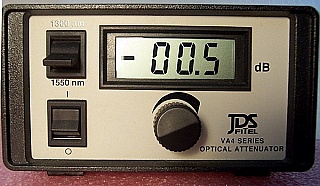

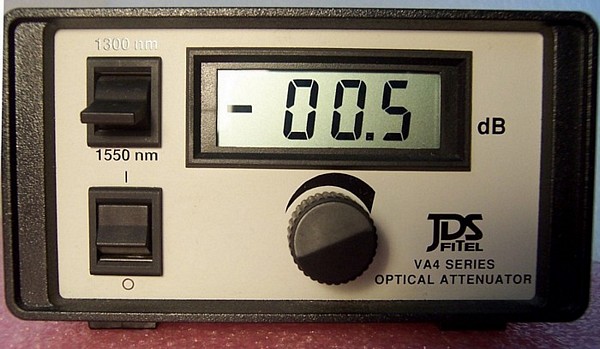

    Good cosmetic condition. LCD display is very clear. Variable attenuator is verified working at our lab.

    At 1550nm with SM fiber jumpers, we tested insertion loss (including one-connector loss) with HP81525A optical head:
    Set -0.5dB, IL=2.673dB. (This is minimum loss)
    Set 0dB, IL=3.190dB.
    Set 10dB, IL=13.621dB.
    Set 20dB, IL=24.238dB.
    Set 30dB, IL=34.374dB.
    Set 40dB, IL=44.400dB.
    Set 50dB, IL=53.55dB (accuracy is limited by optical head).


  • DIM Weight
    0.8700 kg
  • Store Part No.
    OTI-VOA-SM-010E
