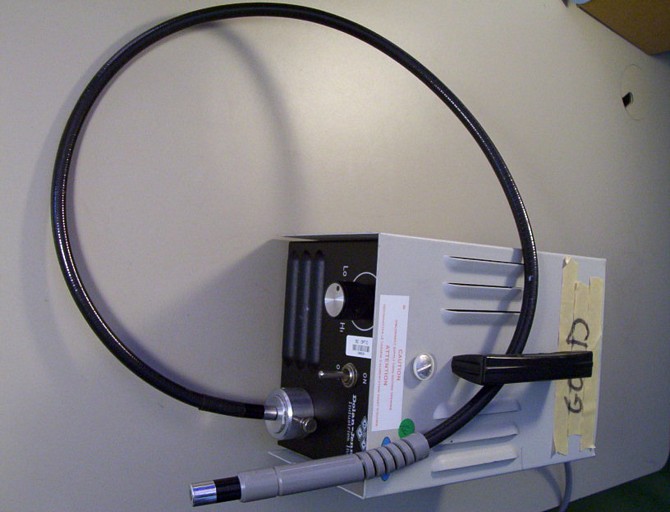

The fiber lightguide is not original and its diameter is a slightly smaller than original, but you can use it and you can approve it by filling in some soft material.

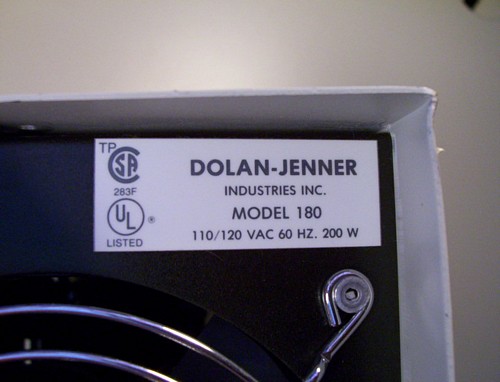

MODEL 180 - Standard 150 Watt, 115 VAC Illuminator, A3739P Ringlight, SX 10 Adapter /360-1 RL System

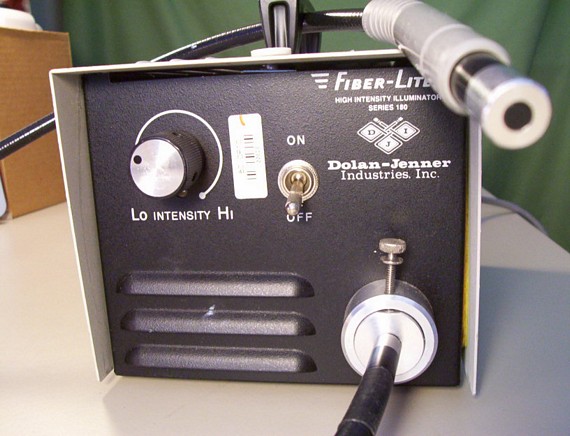

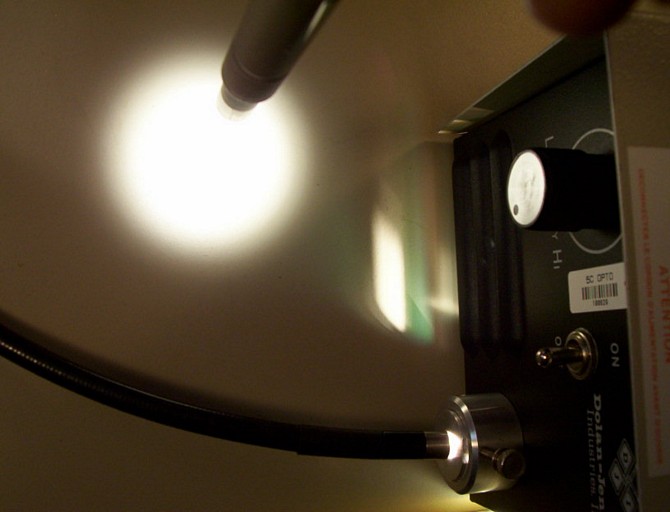

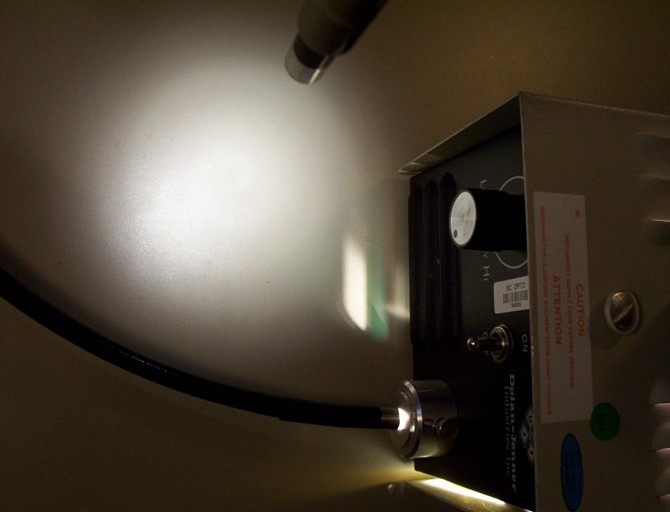

The Model 180 is a 150 Watt quartz halogen illuminator that can deliver upwards of 40,000 foot-candles of high intensity, cold illumination. It was specifically designed to be durable with the lowest possible audible noise and vibration levels typically required in most machine vision applications. The unit is compatible with all of the Fiber-Lite® standard and custom fiber optic light guides and is UL listed and CSA approved (Adapters required with mostfiber cables) 4.23
FEATURES:
110 or 220 VAC 50/60 Hz
Durable with low audible
noise (25dB) and vibration
levels
Rheostat controlled
intensity, 50-100%
40,000 footcandles of
high intensity, cold
illumination
Uses EKE lamp with
optional EJV lamp for
higher output
UL listed and CSA
approved
TECHNICAL INFORMATION:
Lamp:=EKE, 21 Volt, 150 watt/ EJV, 21 Volt, 150 watt
Lamp Life:=200 hours at full intensity/ 40 hours at full intensity
Color Temperature:=EKE 3250 degrees K, EJV 3350 degrees K
Intensity Control:=Reheostat 50-100%
Voltage:=110/120 VAC, 50/60 Hz or 220/230 VAC, 50/60 Hz
Fuse:=2.5A 250V 3AG slow blow (115 VAC), 1.25A 250V 3AG slow blow (230 VAC)
Noise Level:<25dB
Safety Approvals:UL, CSA
Dimensions:=5.87" x 6.5" x 9"
Weight:=9 Lbs.
Adapters:=A type adapter series
Housing Temperatures:
EKE, 21 Volt, 150 Watt EJE, 21 Volt, 150 Watt
200 Hrs. at full intensity 40 Hrs. at full intensity
3200K 3400 K
Reheostat 50-100%
110/120 VAC, 50/60 Hz, 220/230 VAC, 50/60 Hz
2.5A 250V 3AGslow blow (115 VAC)
1.25A 250V 3AGslow blow (230 VAC)
25 db
UL, CSA
5.87" x 6.5" x 9"; 14.9 x 16.5 x 22.9 cm
9 lbs.
A-type adapter series
100 F (37.8 C)
