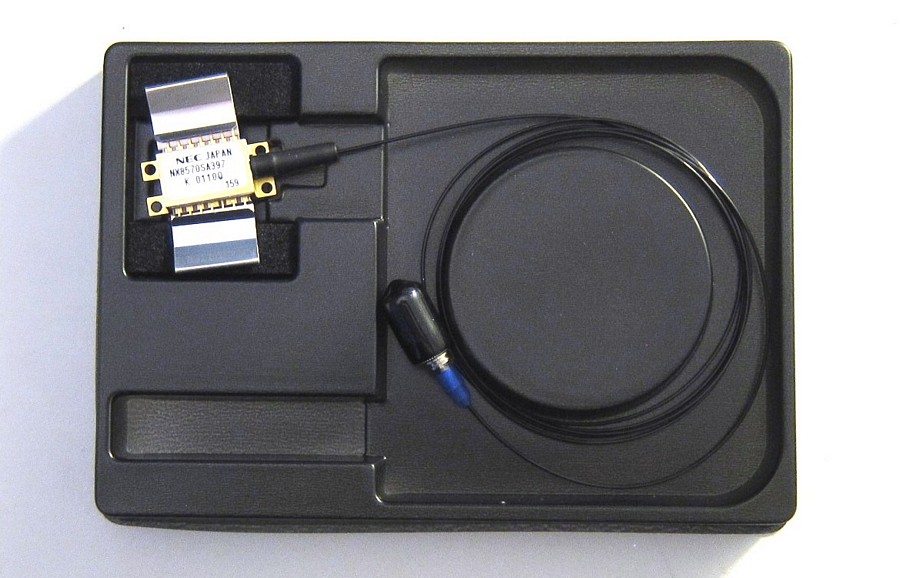

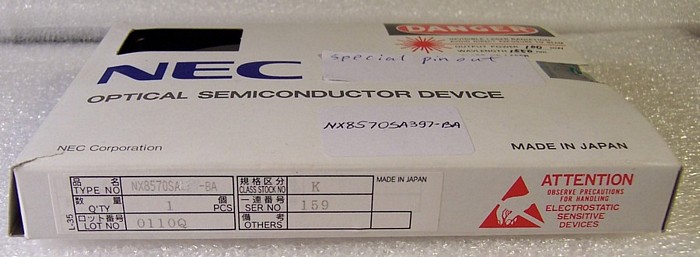

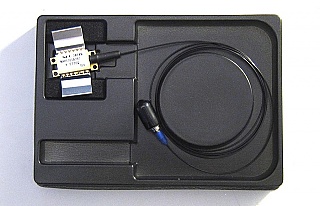

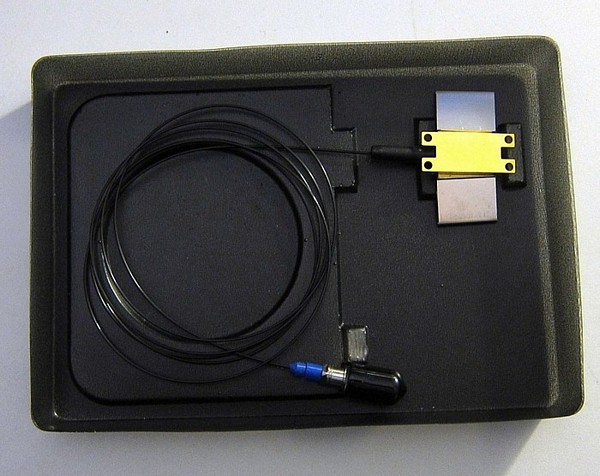

1539.76nm 20mW DWDM laser module, NEC P/N: NX8570SA397-BA. With integrated wavelength monitor and etalon filter. Non-standard pinout.
Next image
Zoom image

1539.76nm 20mW DWDM laser module, NEC P/N: NX8570SA397-BA. With integrated wavelength monitor and etalon filter. Non-standard pinout.


Not rated yet

See specification at 1st pdf link below. There is wavelength monitor function. With FC/PC fiber connector.

Pinout is not standard type-2. Only difference is: The laser anode and laser cathode are at different pins from standard type-2. TEC, thermistor, and power monitor pinout are same as standard type-2.

DESCRIPTION
The NX8570SA is a 1 550 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode module with wavelength monitor function. This device is designed as CW light source and ideal for transmission systems in which external modulators are used.

FEATURES
• Wavelength monitor function (Etalon Filter, Wavelength monitor PD)
• Output power Pf = 20 mW MIN.
• Available for DWDM wavelengths based on ITU-T recommendations (100 GHz grid, refer to ORDERING INFORMATION)
• Internal thermo-electric cooler and isolator
• Hermetically sealed 14-pin butterfly package
• Polarization maintain fiber pigtail

In stock (Only 1 left in stock)
  • US$300.00
Qty:
Add a different product to compare
    CONDITION:

    new in original product pack, without manufacture test data.


  • DIM Weight
    0.2500 kg
  • Store Part No.
    OSC-LDPM-C-616C
  • Manufacturers
    • Manufacturer
      NEC
