1544.389nm 50mW 14-pin butterfly DFB laser module. SEI model: SLT5411-CD/JD3
Next image
Zoom image

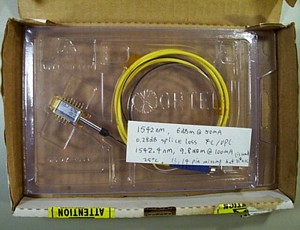

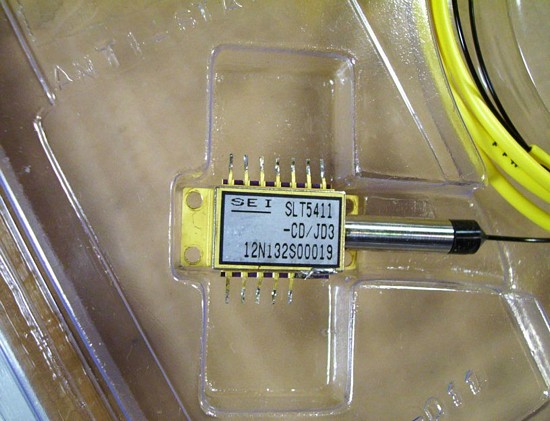

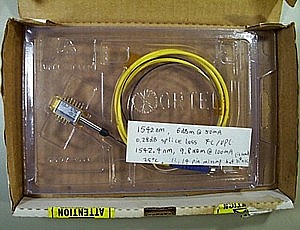

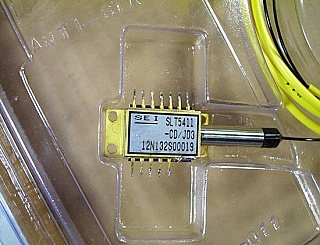

1544.389nm 50mW 14-pin butterfly DFB laser module. SEI model: SLT5411-CD/JD3


Not rated yet

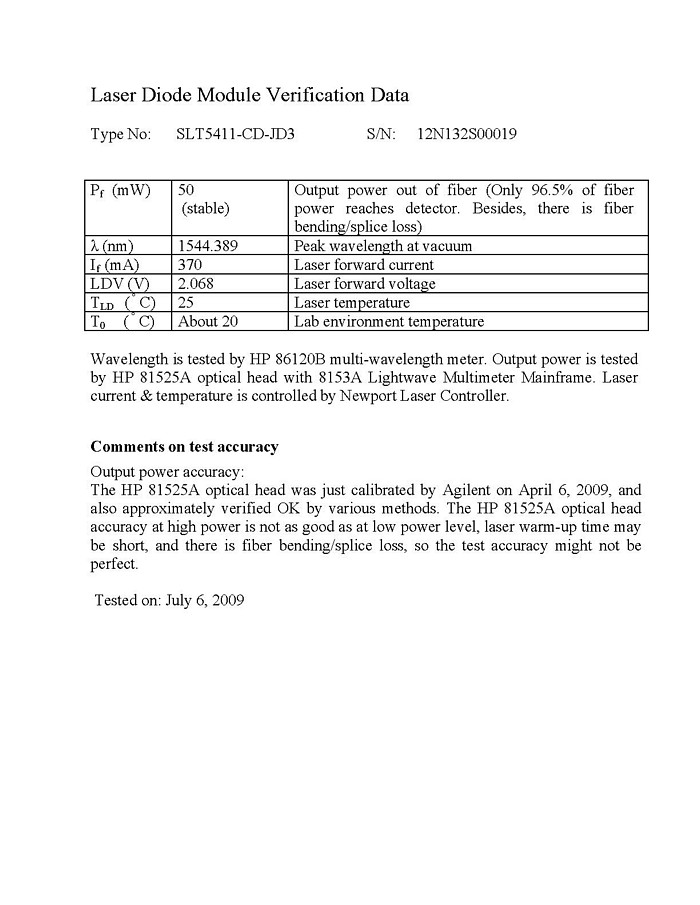

PMF pigtail, fusion-spliced with FC/PC connector with SMF in our lab (splice loss is high). CW Light Source for DWDM System with external modulation. Built-in TEC, Thermistor, Monitor PIN PD and Optical Isolator. See tested data by our lab in last photo below. The output power value is approximate limited by splice loss, one fiber connectors loss, and OSA accuracy. The pin13 and pin 14 are misiing, but pin 11 fuctions same as pin-13, so laser can still work properly.
Out of stock
  • US$440.00
Add a different product to compare
    CONDITION:
    desoldered. PMF pigtail, fusion-spliced with FC/PC connector with SMF in our lab (splice loss is high). Tested working well at our lab. See our test report at last photo.

  • DIM Weight
    0.4000 kg
  • Store Part No.
    OSC-LDPM-C-026C
  • Manufacturers
    • Manufacturer
      Sumitomo
