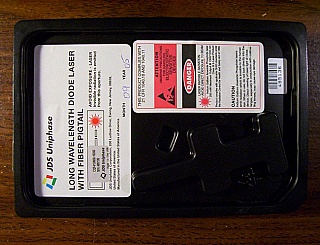

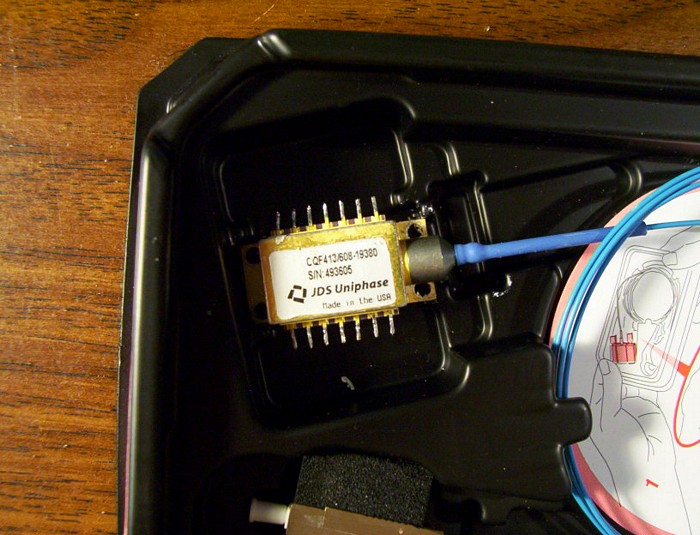

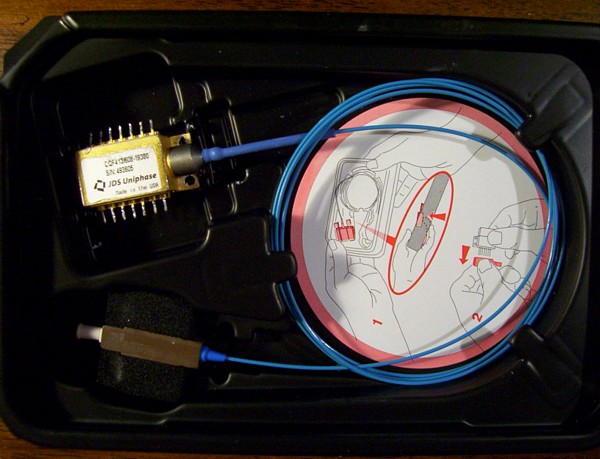

1548.51nm/1549.32nm 2-ch tunable 14-pin 5mW /10mW DFB laser. JDS model: CQF413/608-19360. 7dBm average, 10dBm peak.

10dBm peak, 7dBm average. 1548.51nm/1549.32nm . With MU fiber connector, 900um-buffered fiber. 14-pin butterfly packge.It is designed for 7dBm 2.5Gb directly-modulated DWDM transmitter (57TM series), see this transmitter datasheet in the pdf link below.With its CQF413 Series for 2.5 Gbps systems, JDS Uniphase is among the first to introduce temperature-tunable DMLs. These products are two-channel tunable for the 100 GHz ITU and are available in both 100 km and extended-reach 180 km versions and for both low (2.5 mW) and high (10 mW) peak output power levels.
