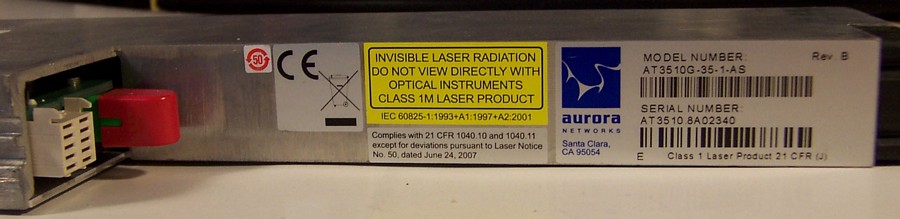

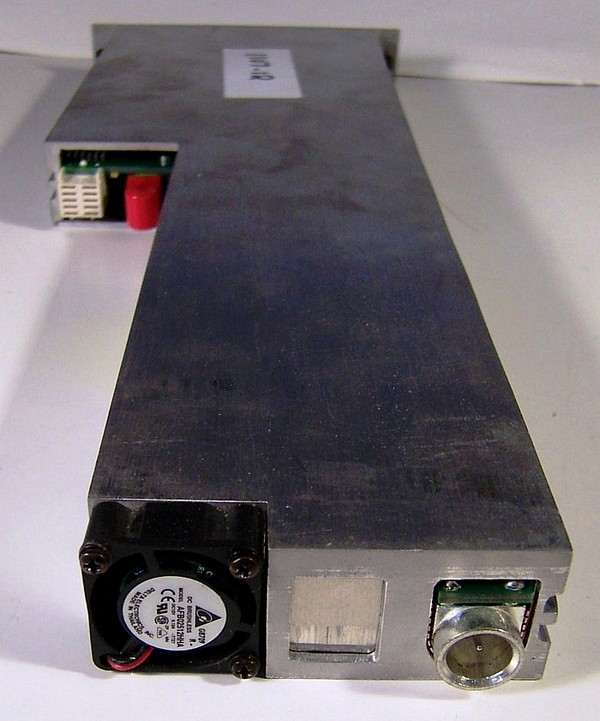

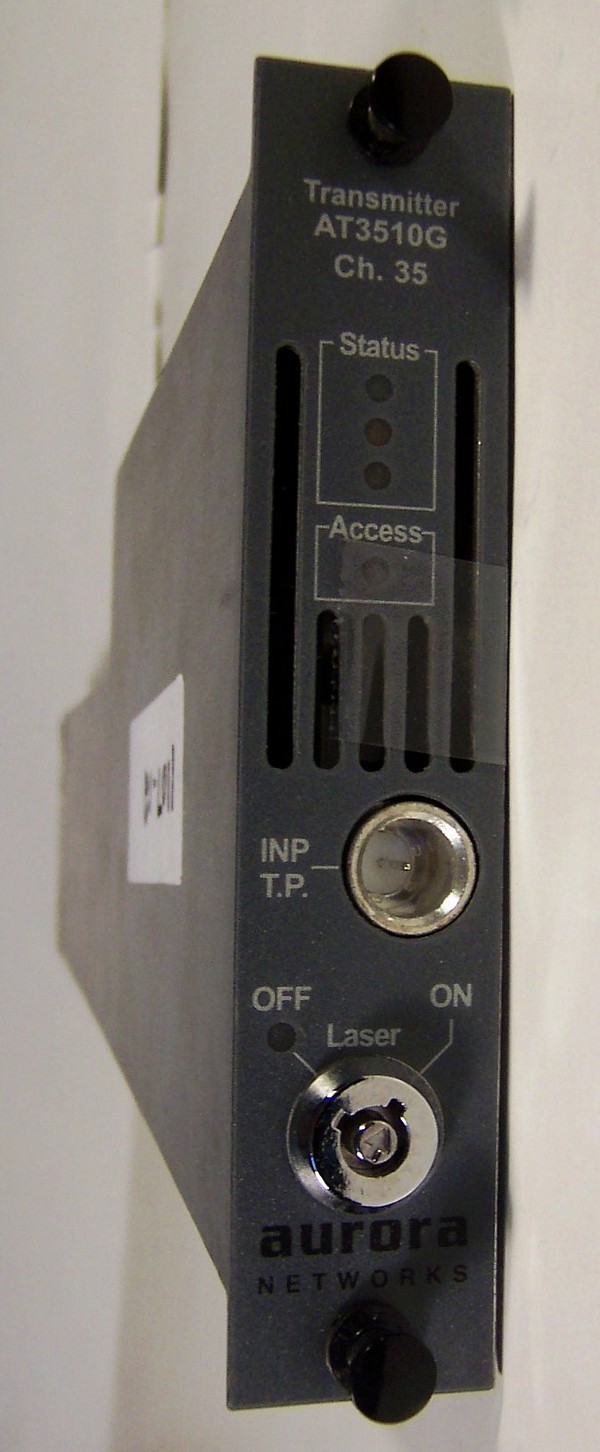

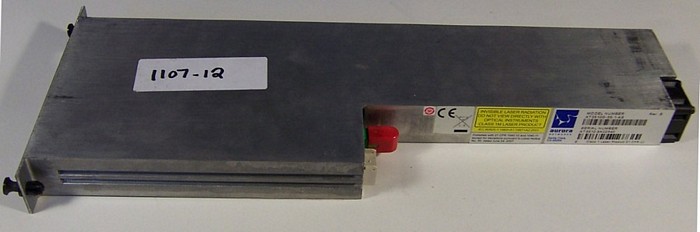

1549.32nm 10dBm narrowcast analog transmitter, With Ortel 10dBm 1751A-36BBSC10  laser. Aurora M/N: AT3510G-35-1-AS
Next image
Zoom image

1549.32nm 10dBm narrowcast analog transmitter, With Ortel 10dBm 1751A-36BBSC10 laser. Aurora M/N: AT3510G-35-1-AS


Not rated yet

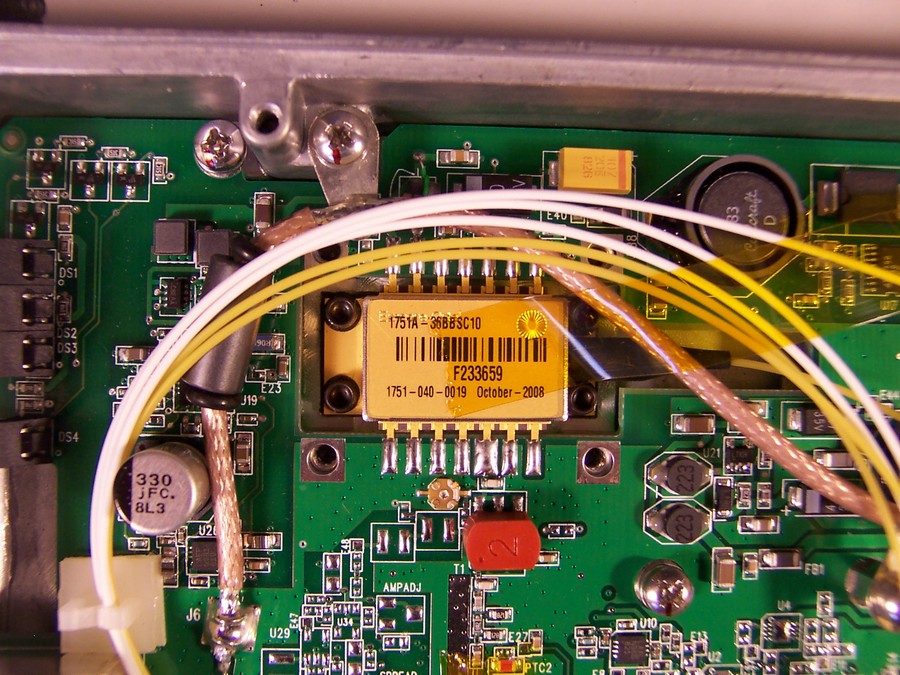

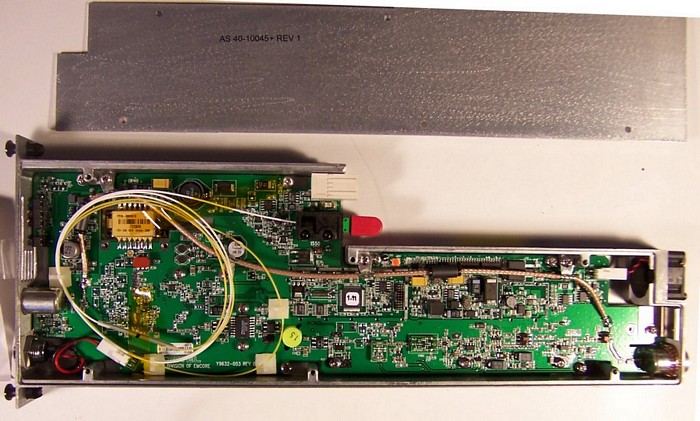

10dBm transmitter by Aurora. We opened the module only to verify the contents, as shown at last photo below. Without manufacture test data, last two pdf links below are from almost same modelof AT3510-xx-1-AS in store product code OMS-Tx-1550-220C.   By comparing with the test data of Scientific Atlanta reverse transmitter (P/N: PDMT1500-08SD-SA-IT23,  store product code OMS-Tx-1550-211C),  this should be also reverse transmitter. With Ortel 10dBm 1751A-36BBSC10 laser, see specification at the 3rd and 4th pdf links below.

With one SC/APC adapter.

We can remove laser from the transmitter module by desoldering machine with low-melting point solder, at extra $40 for the desoldering, testing, and packing work).

General Description:
AT3510 Series Narrowcast DWDM Transmitters provide high output power (+10dBm) from the Aurora universal chassis for long haul applications, and can overcome passive losses associated with optical broadcast narrowcast applications.

The AT3510 series high performance Analog Narrowcast Transmitters are a key element of Aurora Network's Passive HFC architecture and are designed for Dense Wave Division Multiplexing (DWDM) applications for forward path transmission of narrowcast digital services. Each transmitter's wavelength is specified as one of 40 wavelengths on the 100 GHz DWDM ITU grid (ITU-T G.694.1). AT3510G transmitters incorporate advanced predistortion circuitry to enable transmission of up to 16 or 32 QAM modulated channels per wavelength. Transmitter output power is 10 dBm for maximum network performance and application flexibility.

The unique mid-plane packaging of the AT3510G features both a compact one-module-width design and an integrated ''back plate'' multiplexer which eliminates the need for a separate platform or shelf for a typically packaged multiplexer.

This high density packaging enables network operators to install up to 14 transmitters per 3RU chassis, all of which can be monitored remotely or locally from the power supply module. The compact design minimizes rack space requirements in headends or hubs and enhances deployment of traditional HFC, passive HFC and fiber to the home (FTTH) networks.
----------------------------------------------------------------


Features
• 10 dBm optical output power
• DWDM transmitter, 40 wavelengths on ITU grid
• Optimized for 16 or 32 channels of 6 MHz 256QAM per wavelength
• Superior flatness and stability
• Industry’s highest rack density (14 transmitters per 3RU chassis)
• Front access –20dB input test point
• Front panel laser On/Off interlock switch
• Hot plug in/out
• Local and remote status monitoring features
• Occupies one full-depth slot

In stock (Only 1 left in stock)
  • US$380.00
Qty:
Add a different product to compare
    CONDITION:

    good cosmetic condition, without test data. We do not know how to use it and unable to verify its working condition. You may try it and return if you are not satisfied, but two-way shipping fee is not refundable.


  • DIM Weight
    1.5000 kg
  • Store Part No.
    OMS-Tx-1550-221C
  • Manufacturers
    • Manufacturer
      Aurora
