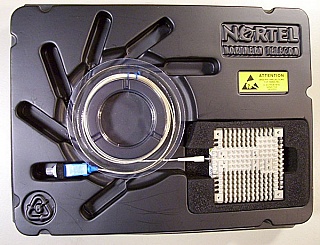

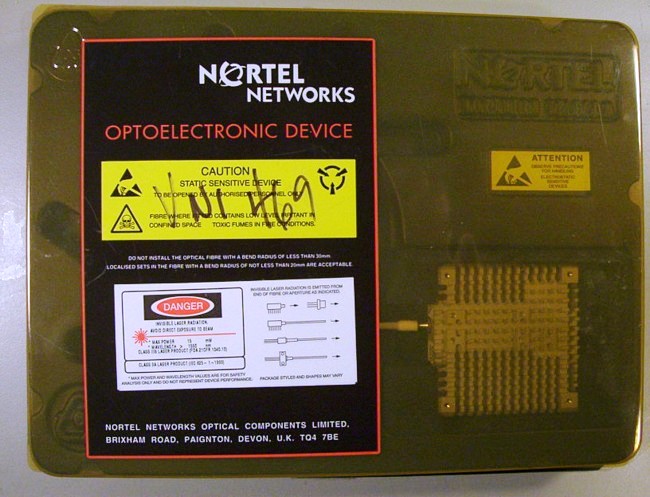

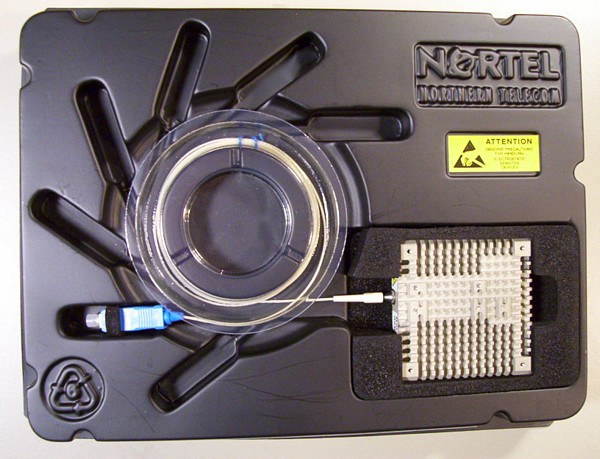

1552.52nm WDM transmitter module. Type: MDTL162W3504-135C28

WDM/DWDM transmitter module. Mean output power (SOL): min: 1.5dBm, max: 2.5dBm. Center wavelength stability over temperature: min: -50 C, max: +50 C degree. With SC/PC connector. 20-PIN. 3.3V and 5V power supplies required. Up to 80km optical link length. ITU 200GHz grid compliant. 14-page datasheet including pin-out info available upon request(we can photo or fax some pages to you upon request), the data sheet is for model MDTL162Wxxxx - 135 . Tested result in our lab without modulation for another sample: output power : 2.64dBm, output power is very stable, variation is <=0.001dB within few minutes.
