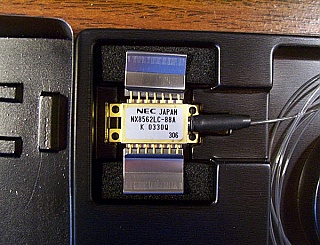

1554.8nm or 1556.4nm isolated 14-pin butterfly, Pf
Next image
Zoom image

1554.8nm or 1556.4nm isolated 14-pin butterfly, Pf


Not rated yet
CW source for external modulator. PMF FC/PC@slow axis. Typical linewidth: 1MHz. These two laser samples requires higher drive current, see their actual test sheets at the photos below. The manufacture testsheet tested at 12.5mW and 16mW, it seems cannot be able to work at 20mW at <167mA, so it cannot meet general datasheet output power specification in the pdf link below for NX8562L series laser. Pinout: Type-1 or Type-3 (type-3 and type is same if laser is used only for general CW light). We tested sample by laser controller with type-1 pinout setup. Pin-out is different from pdf link below. Made in 2003.
Out of stock
  • US$245.00
Add a different product to compare
    CONDITION:

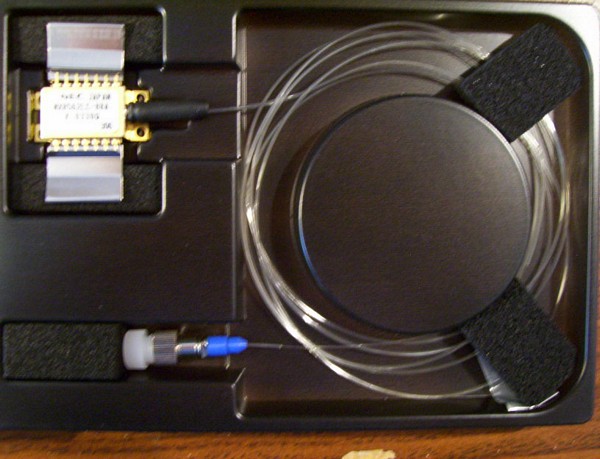

    new in original product case, with manufacture test sheet. These two laser samples requires higher drive current. It cannot get >20mW at 167mA, see our test resulf of one sample at last photo below. In this test, we use another laser controller with type-1 pinout setup.

  • DIM Weight
    0.2500 kg
  • Store Part No.
    OSC-LDPM-C-630E
  • Manufacturers
    • Manufacturer
      NEC
