155Mb/s optical PIN-TIA receiver. Bandwidth: 192MHz. 1.31/155um. Multimode fiber. With FC/PC connector. JDS model: ERM504 FJ-M FC/PC ARTEL V2
Next image
Zoom image

155Mb/s optical PIN-TIA receiver. Bandwidth: 192MHz. 1.31/155um. Multimode fiber. With FC/PC connector. JDS model: ERM504 FJ-M FC/PC ARTEL V2


Not rated yet

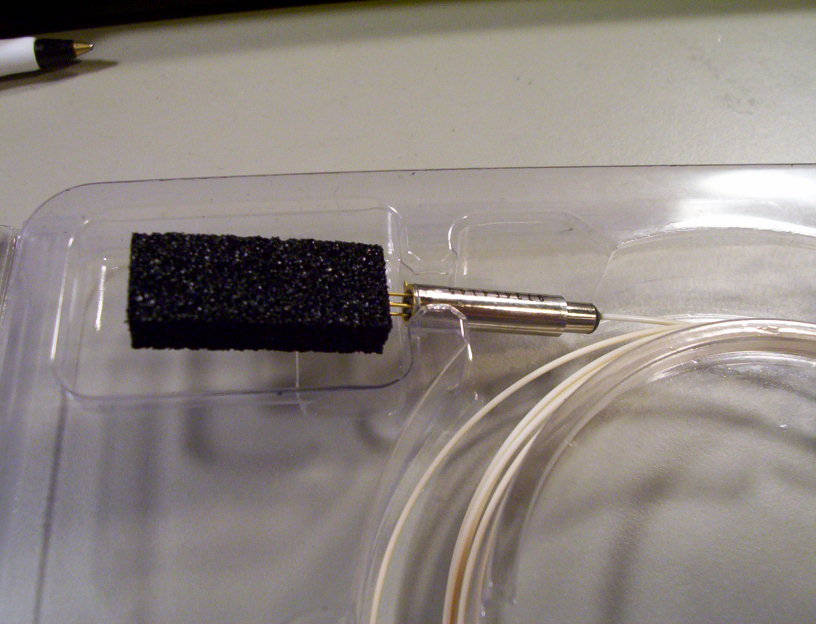

4-pin electrical leads. Multimode 900um-buffered fiber with FC/PC connector. Multimode fiber is verified by fiber scope at our lab, it looks 50/125um fiber. FJ-M in model number means multimode fiber jumper. See pin-out at 1st 2 pdf links and user guide at last pdf link below.

The ERM501 and ERM504 optical receiver modules include InGaAs PIN photodiode and GaAs transimpedance amplifiers for SONET applications. The ERM501 is designed for use in 51.84-Mbit/s systems and has a sensitivity of -43 dBm, while the ERM504 is designed for 155.52-Mbit/s transmission systems and has a sensitivity of -38 dBm. Each module requires only one +5V source and comes in a 4-pin fiber-pigtailed packaged.

In stock (Only 1 left in stock)
  • US$38.00
Qty:
Add a different product to compare
    CONDITION:

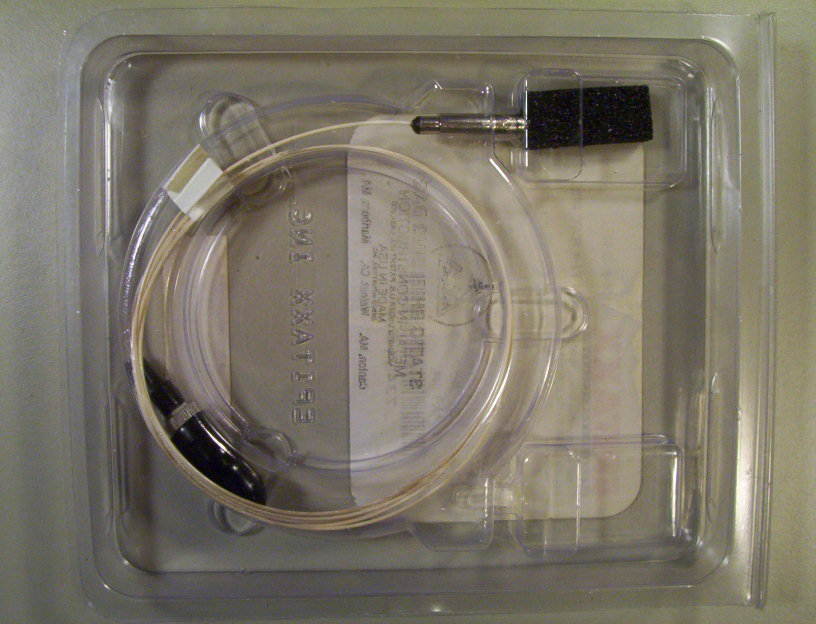

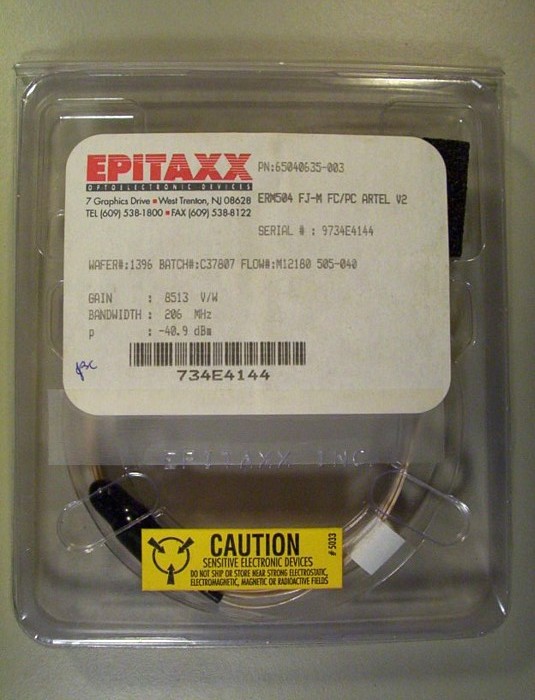

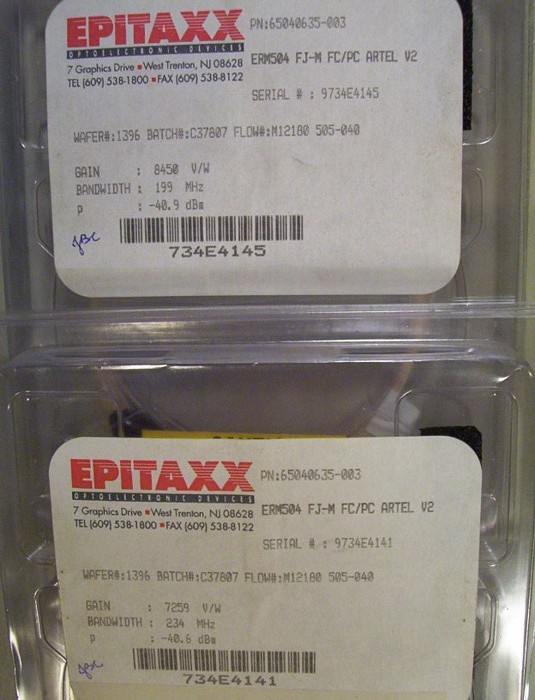

    new in original product case, with test sheet label


  • DIM Weight
    0.2000 kg
  • Store Part No.
    ODC-Rx-D-008D
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      EPITAXX
