Lightwavestore.com > Optical Transmitter Module > 1563.05nm or 1529.55nm, 1.7dBm 2.5 Gb/s Transmitter Module - DWDM, 100 GHz, Nortel P/N: MT25EW6305KA-C59, or MT25EW2955KA-C59

1563.05nm or 1529.55nm, 1.7dBm 2.5 Gb/s Transmitter Module - DWDM, 100 GHz, Nortel P/N: MT25EW6305KA-C59, or MT25EW2955KA-C59

1563.05nm or 1529.55nm, 1.7dBm 2.5 Gb/s Transmitter Module - DWDM, 100 GHz, Nortel P/N: MT25EW6305KA-C59, or MT25EW2955KA-C59

With MU fiber connector.

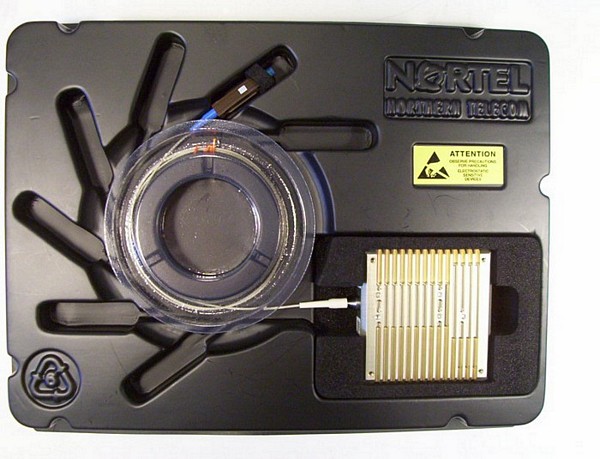

The MT25EW transmitter module provides an easy to use self-contained optical source for Dense Wavelength Division Multiplexed (DWDM) applications up to 2.7 Gb/s data rates. The module requires +5 V, +3.3 V, 0 V supplies and PECL/ECL data input to operate, and so allows non-DWDM optical links to be upgraded very easily. Internal control circuitry, including Etalon wavelength locking, ensures that the optical source remains within optical power and wavelength limits over variations in temperature, power, and over life. The MT25EW conforms to ITU-T G.692, ITU-T G.957, G.958 STM-16 Long Haul and Telcodia OC-48 Long Reach specifications for data links to 160 Km and beyond. Over 40 wavelengths are available, specified as per the ITU grid at 100 GHz channel spacing, covering the C-band EDFA window.

Features
• Up to 2.7 Gb/s
• ITU 100 GHz grid compliant
• 0 to +70°C operation
• High reliability optical components
• Optical link lengths to 3000 ps/nm & beyond
• Monitor functions for laser status
• Laser disable function and automatic mean power control
• Source wavelengths available covering the C-band EDFA window

PDF datasheet 18.8 kB
