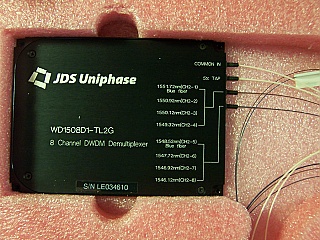

1x8 8 Channel C-band 100GHz DWDM demux with 5% tap. 8 channels are from 1546.119nm to 1551.721nm. JDS P/N: WD1508D1-TL2G
Next image
Zoom image

1x8 8 Channel C-band 100GHz DWDM demux with 5% tap. 8 channels are from 1546.119nm to 1551.721nm. JDS P/N: WD1508D1-TL2G


Not rated yet
8 demux channel wavelengths. Common fiber port and tap port are with SC/APC connectors, in 900um buffer. Other 8 fibers are in 4-fiber ribbon without fiber connector. Fiber: Corning SMF-28 (9/125/900um). There is floppy disk at 3rd photo below, not sure if ths disk is still working. All-optical passive module.
In stock (Only 1 left in stock)
  • US$230.00
Qty:
Add a different product to compare
    CONDITION:
    new in original product pack, with manufacture test data, see last pdf link above at 55C, 25C, 75C temperature.

  • DIM Weight
    1.5000 kg
  • Store Part No.
    FFC-MUX-036C4
