1x8 and 8x1 8-channel C-band 100GHz DWDM mux/demux pair. 8 channels are from 1530.33nm to 1535.82nm. With two SC/APC and two MPO/APC connectors. OPLINK P/N: DWDM108C59TLB04
Next image
Zoom image

1x8 and 8x1 8-channel C-band 100GHz DWDM mux/demux pair. 8 channels are from 1530.33nm to 1535.82nm. With two SC/APC and two MPO/APC connectors. OPLINK P/N: DWDM108C59TLB04


Not rated yet

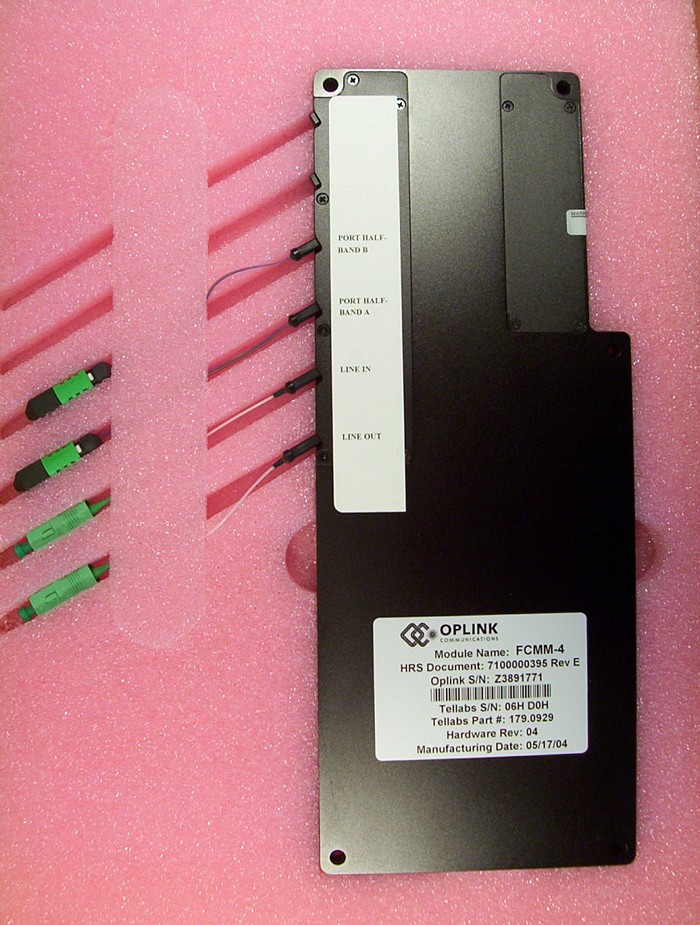

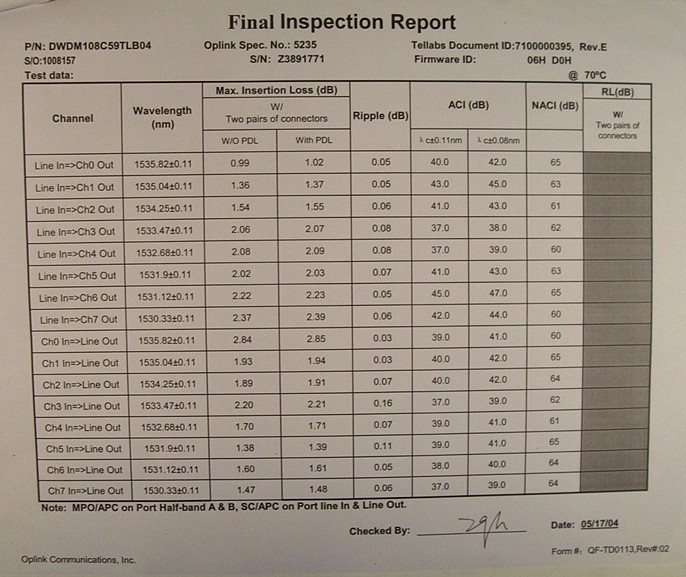

It includes one 1x8 100GHz DWDM demux module and one 8x1 mux module. With two SC/APC connectors on Port In and Out, and two MPO/APC 8-fiber ribbon connectors on Port Half-band A and B. Module name: FCMM-4. See actual test sheets at last pdf link below for one sample and also last three photos for another sample, at -5 C, 23C, 70 C degree temperature. See ITU grid wavelength table at the 2nd pdf link below.
In stock (Only 4 left in stock)
  • US$445.00
Qty:
Add a different product to compare
    CONDITION:

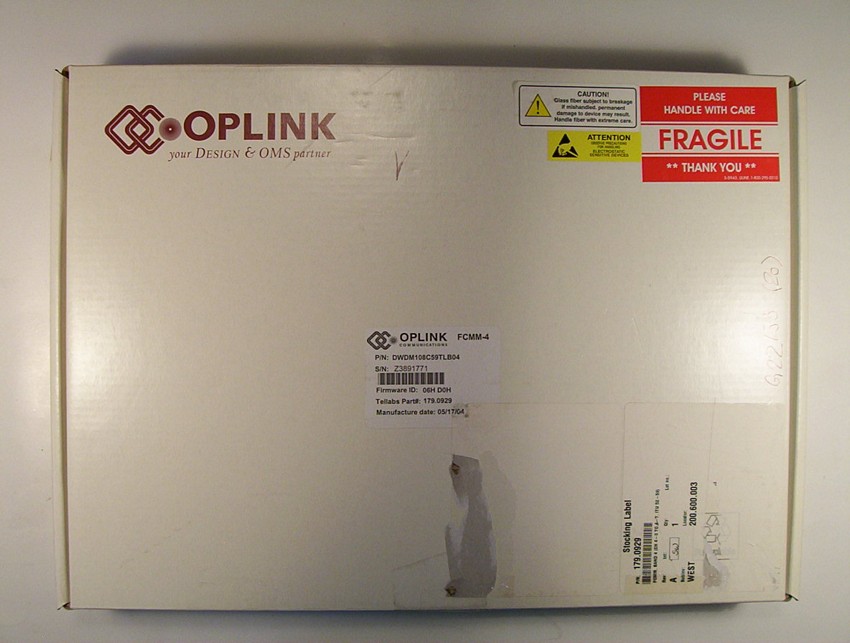

    new in product box, with individual manufacture test sheet, see last pdf link above for one sample, and last 3 photos below for another sample.

  • DIM Weight
    2.5000 kg
  • Store Part No.
    FFC-MUX-036F
  • Manufacturers
    • Manufacturer
      Oplink
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
