1x8 and 8x1 8-channel C-band 100GHz DWDM mux/demux pair. With two SC/APC and two MPO/APC 8-fiber connectors. Oplink module name: ECMM-3 module. 'Sell AS IS'.
Next image
Zoom image

1x8 and 8x1 8-channel C-band 100GHz DWDM mux/demux pair. With two SC/APC and two MPO/APC 8-fiber connectors. Oplink module name: ECMM-3 module. 'Sell AS IS'.


Not rated yet

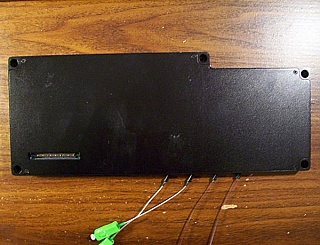

Oplink Optical line interface module. There are are also two SC/APC connectors. Comparing with our store product:FFC-MUX-036F, we believe it includes one 1x8 100GHz DWDM demux module and one 8x1 mux module. With two SC/APC connectors on Port In and Out, and two MPO/APC 8-fiber ribbon connectors on Port Half-band A and B. Module name: ECMM-3. See ITU grid wavelength table at last pdf link below.

In stock (Only 1 left in stock)
  • US$90.00
Qty:
Add a different product to compare
    CONDITION:

    Looks unused. Without test sheet. We do not have MPO/APC adapter, so we are unable to test and figure out the channel wavelength of this module. So this item is "Sell AS IS". You can try and return it, but two-way shipping fee is not refundable.


  • DIM Weight
    0.8000 kg
  • Store Part No.
    FFC-MUX-036G
