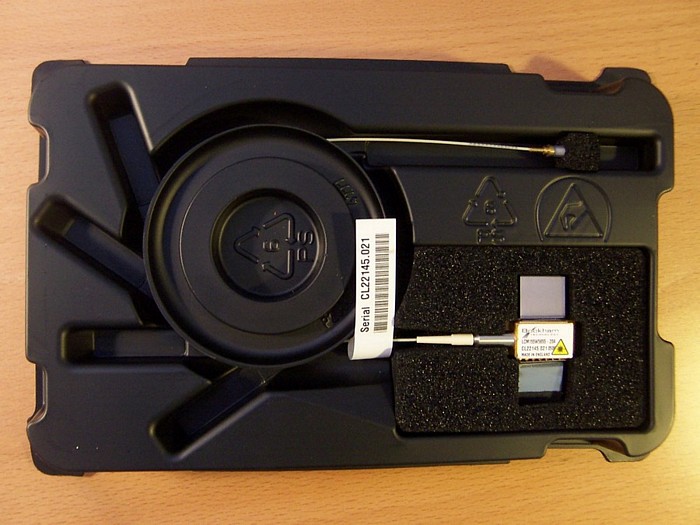

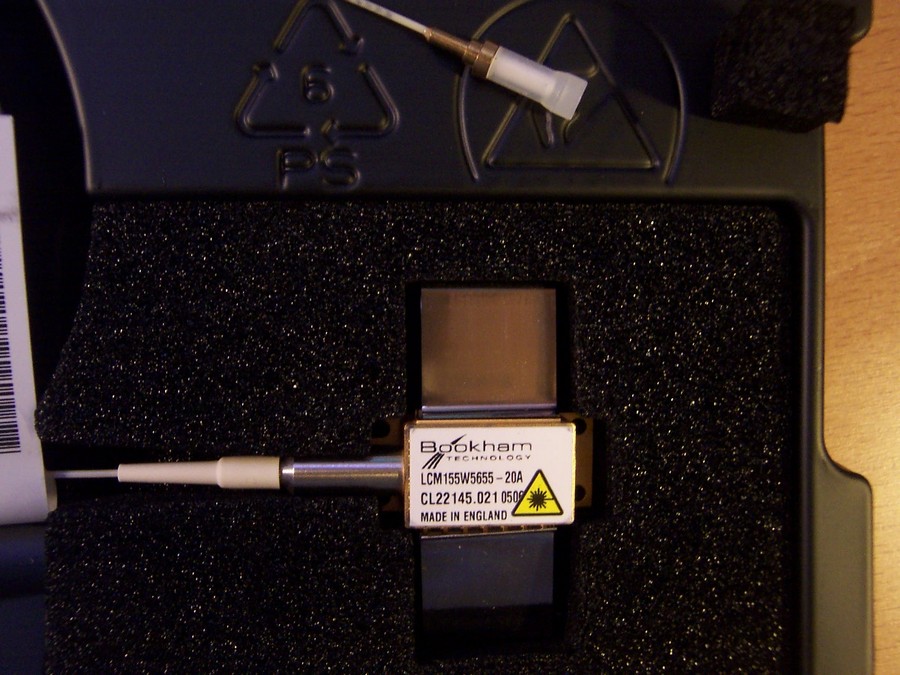

2.5 Gb/s Co-packaged Etalon Stabilised Laser and III-V Mach-Zehnder modulator, Bookham (Nortel) model: LCM155W5655-20A (1556.55nm)

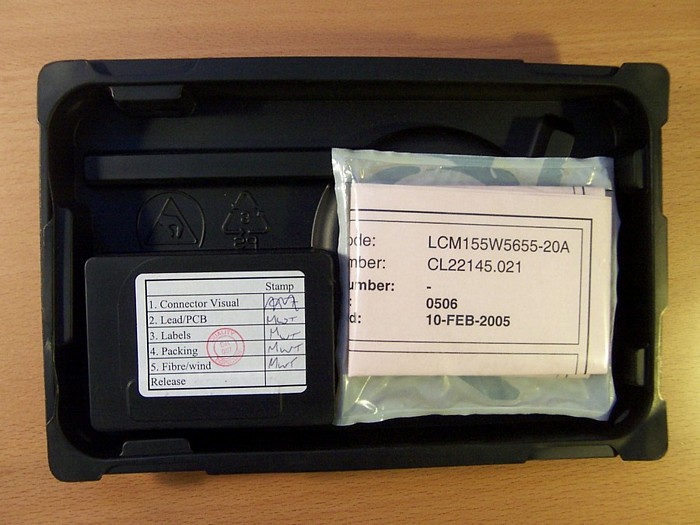

With flat-end CT fiber connector (only 2.5mm ferrule, see 4th photo below, it is also called as 2.5mm universal connector). With 900um-buffered fiber.

With actual test data, as shown at last two pdf links below.

Available wavelength:
1pc for LCM155W5655-20A (1556.55nm)

Applications
Long and very long reach SONET/SDH STM16/OC48 systems DWDM systems to 50GHz channel spacing

Description
Designed for long reach 2.5Gb/s DWDM systems, the LCM155W-20A comprises a wavelength stabilized Laser, an integral
III-V Mach-Zehnder modulator and voltage-controlled output power. The device incorporates two monitor photodiodes, each with a different spectral characteristic. When used with closed loop control, wavelength stability of ±20pm may be achieved.
The voltage controlled attenuator function may be used to set the desired output power. When used on standard fibre (or any
fibre with a positive dispersion coefficient), a 1dB dispersion penalty is achieved with 12800ps/nm dispersion.

PDF datasheet 19.6 kB
Manufacturer test data of sample 1 19.6 kB
Manufacturer test data of sample 2 19.6 kB

Manufacturers
- Manufacturer
  Bookham
