2.5Gb Fujitsu FRM5W231DR APD receiver with Lucent LG1600FXH Clock and Data Regenerator and NLG4901 pulse driver, 1.3/1.55um
Next image
Zoom image

2.5Gb Fujitsu FRM5W231DR APD receiver with Lucent LG1600FXH Clock and Data Regenerator and NLG4901 pulse driver, 1.3/1.55um


Not rated yet

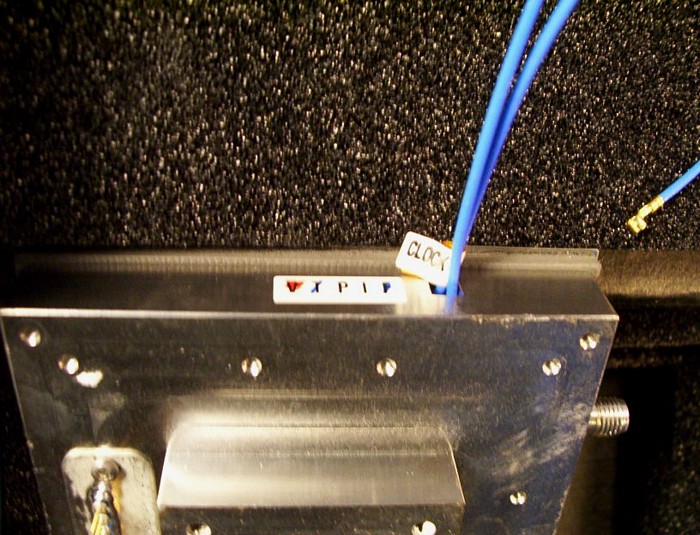

It comes with two RF jumpers for DATA -, CLOCK - outputs (CLOCK + output adapter is also available internally as shown in the last photo and you access it by extra RF jumper) . SMA connector connects to NLG4901 pulse driver which would amplify the DATA + output from Lucent LG1600FXH Clock and Data Regenerator. We open the module only to try to figure out what is inside. MMF 900um-buffer pigtail with SC fiber connector. Made by Pirelli in Italy. See pin-out info in the 1st pdf link below. The pdf datasheet for Lucent LG1600FXH Clock and Data Regenerator is available upon request (450KB).
Out of stock
  • US$650.00
Add a different product to compare
    CONDITION:
    we believe it is unused

  • DIM Weight
    0.5000 kg
  • Store Part No.
    ODC-Rx-APD-015C
  • Manufacturers
    • Manufacturer
      Pirelli
