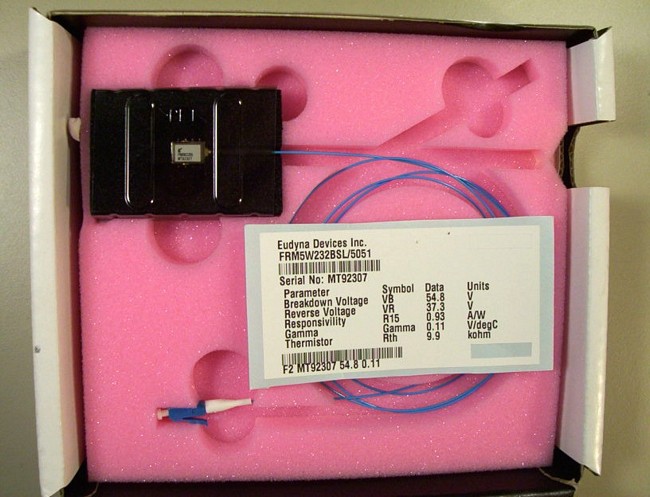

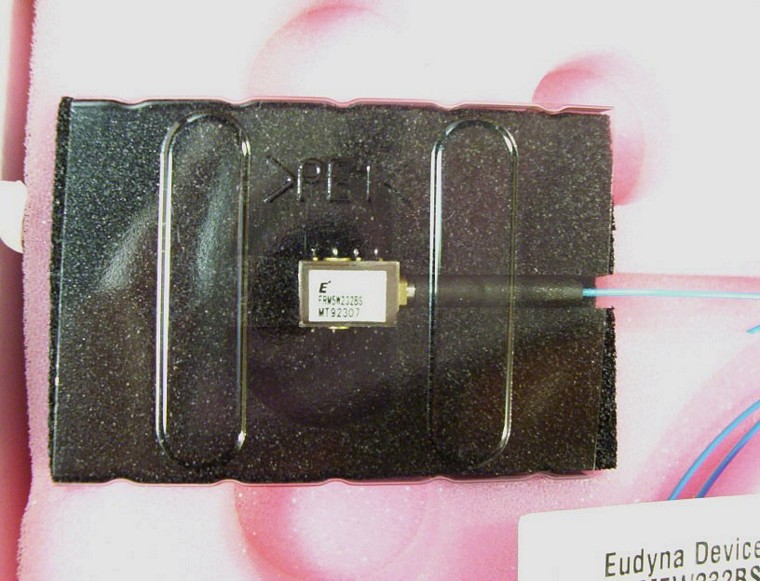

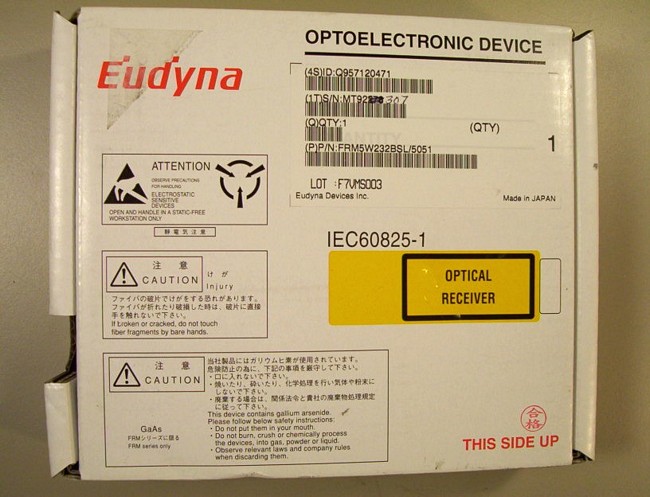

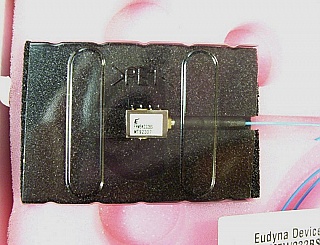

2.7Gb Fujitsu APD receiver module, model: FRM5W232BSL/5051. 1.3/1.55/1,61um, mini-dil package

Long haul receiver. -34dBm sensitivity. Single-mode fiber pigtail with LC/PC connector. Board Mount Type. FRM5W232BS is composed of 3.3V GaAs IC and InGaAs APD / PIN chip in Mini-DIL type package, optimized up to 3.2 Gbit/sec. These devices are in compliance with ITU-T recommendations and Telcordia requirement.

Features
• Mini-DIL package type preamplifier modules
• Built in InGaAs APD / PIN and GaAs IC preamplifier
• Bandwidth: 2.2 GHz (Min.)
• Minimum sensitivity: APD; -34 dBm (Typ.)
• Overload input power: APD; -5 dBm (Min)
• Wide operating temperature: -40°C ~ 85°C

PDF datasheet 17.2 kB
