25.26km SMF-28 bare fiber spool with 2 SC/PC connectors

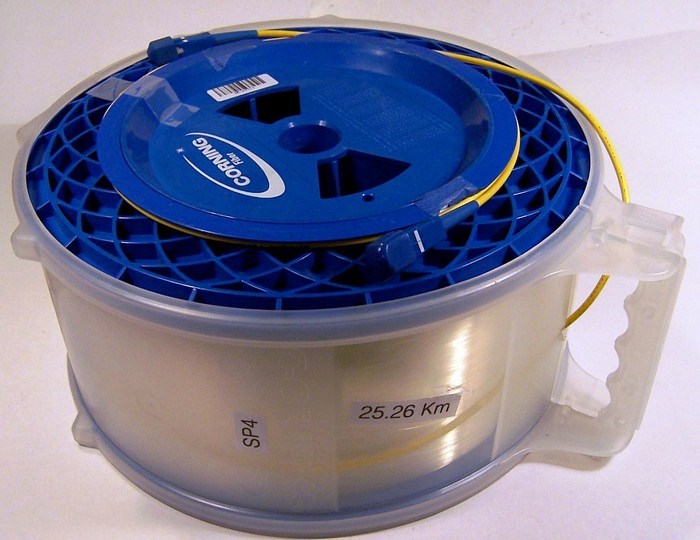

With hard plastic cover over the fiber roll, and there is handle on the plastic cover(see photos at last pdf link below), so you can easily move the spool around your lab. Both internal end and external end connectors of fiber spool are accessible outside plastic cover, so you can use it like mini test box for optical transmission test. All spools are with SC/PC fiber connectors in 3mm cable at both fiber ends. We can change connector type by fusion splice, and you need add $15 for each splice, see details at http://www.lightwavestore.com/store/product.php?productid=19062&cat=494&page=1 See year 2002 datasheet in 1st pdf link and year 2000 datasheet in 2nd pdf link below.

CONDITION:

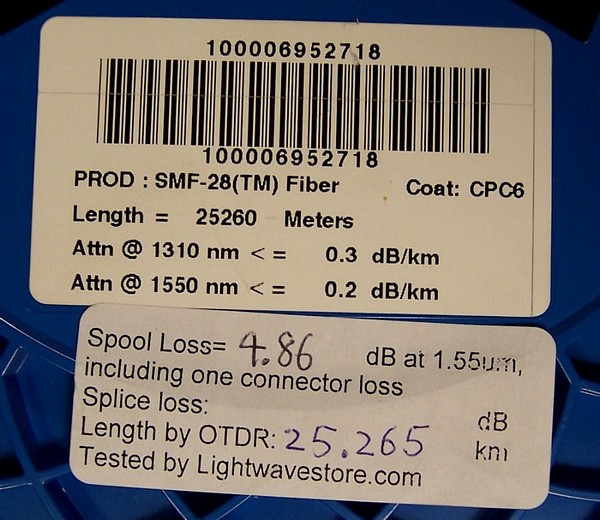

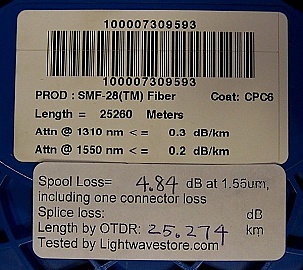

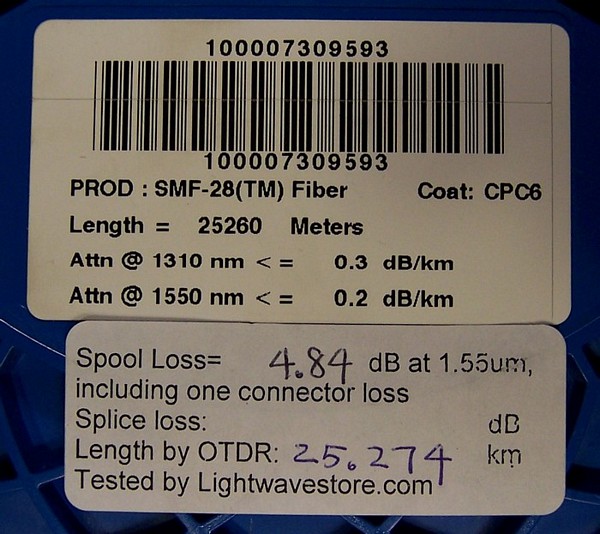

Very good cosmetic condition. Fiber roll is neatly and closely winded on the drum. Two fusion-splices are well protected and taped on the drum. Fiber loss is verified very good and matches the product label well within test accuracy tolerance (from 4.84dB to 5.05dB). All fiber spools are in original full length. Tested fiber length is very close to 25.26km by OTDR at our lab, which is within instrument accuracy, considering the factors of group index of refractive deviation (we set Neff as 1.4682) and extra fiber pigtail length spliced on each end of fiber spool. So we verified that fiber spool is in original full length 25.26km. See our loss and length test results at the labels of last two photos below.

DIM Weight

3.5000 kg

Store Part No.

FSC-SMF-SPOOL-153C

Manufacturers
- Manufacturer
  Corning
