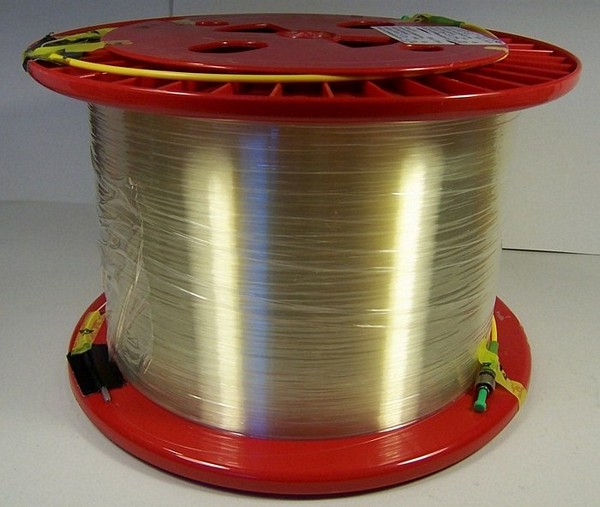

25.8km Lucent standard SM fiber spool. It is Matched-Cladding standard SM Fiber, type: MC-SM.
Next image
Zoom image

25.8km Lucent standard SM fiber spool. It is Matched-Cladding standard SM Fiber, type: MC-SM.


Not rated yet

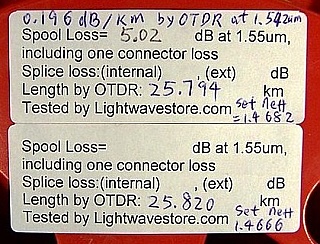

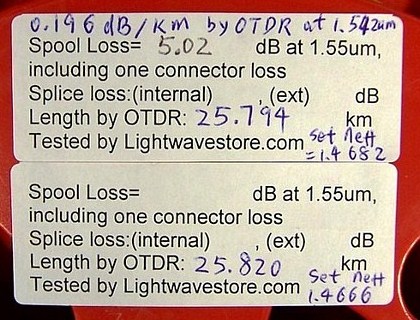

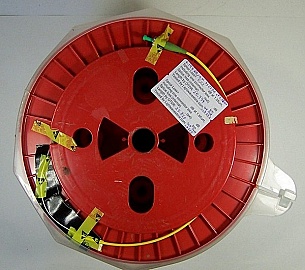

This spool came together with our store product code FSC-SMF-SPOOL-351C, so we believe it is also 'Lucent Matched-Cladding standard SM fiber spool, 8.3/125/245 um, Fiber type: MC-SM, Lucent P/N: LUC25MCSMA'. There are two FC/APC connectors in 3mm cable. We tested spool loss is 5.02dB at 1.55um. We measured the fiber attenuation is only 0.196dB/km by OTDR. Fiber length is measured as 25.820, assuming effective refractive index is same as Lucent normal SM fiber 1.4666.

Zero dispersion wavelength: 1315.05nm, dispersion slope at zero dispersion wavelength: 0.0855 ps /(nm2*km), spool length: 25.794km, tested by our local dispersion-test contractor at last pdf link below (see spool 19 in test report), with GN Nettest dispersion receiver FD440 RX and transmitter FD440 TX, in July 2013. So it is G.652 fiber, i.e, standard SMF.

Specification from page 19 of last pdf link below :
Lucent Matched Cladding (MC) SMF –G.652
Attenuation @ 1310nm (dB/km): 0.35 - 0.4 (customer specified)
Attenuation @ 1550nm (dB/km): <=0.21 – 0.3 (customer specified)
Attenuation @ water peak: 1383 +/- 3nm < 2 dB/km
Attenuation vs Wavelength: 1285-1330nm Max difference 0.1 db/km (Ref. 1330nm)
Attenuation vs Wavelength: 1525-1575nm Max difference 0.05 db/km (Ref. 1550nm)
Mode Field Diameter @1310nm: 9.3 +/- 0.5 um
Mode Field Diameter @1550nm: 10.5 +/- 1.0 um
Effective Area 87 um2
Typical Core Diameter: 8.3 um
Zero Dispersion Wavelength: 1300nm <= WL0<= 1322nm
Dispersion coefficient at 1550nm: 18 ps/nm*km
Zero Dispersion Slope @ WL0: S0 <= 0.088 ps/km*nm2
In stock (Only 1 left in stock)
  • US$610.00
Qty:
Add a different product to compare
    CONDITION:

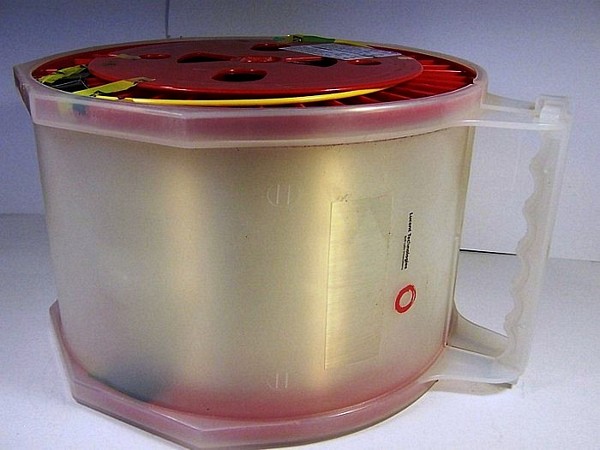

    Very good cosmetic condition. With plastic cover. With actual dispersion test data, see last pdf link above (spool 19 in test report).

  • DIM Weight
    6.3000 kg
  • Store Part No.
    FSC-SMF-SPOOL-351D
