2mW 1310 nm InGaAsP MQW-FP laser diode coaxial module for 2.5 Gb/s. NEC model: NX8300BE-CC
Next image
Zoom image

2mW 1310 nm InGaAsP MQW-FP laser diode coaxial module for 2.5 Gb/s. NEC model: NX8300BE-CC


Not rated yet

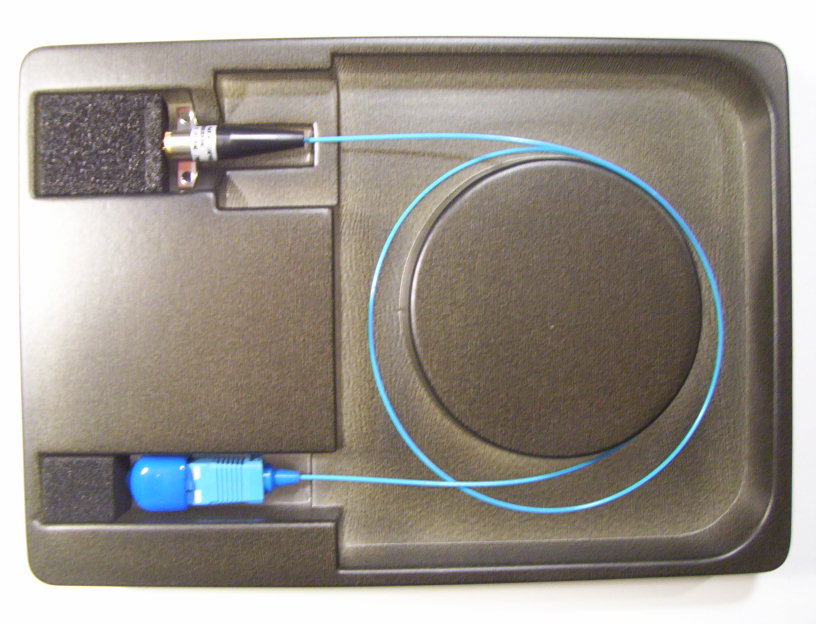

With SC/PC SM fiber connector. The NX8300BE-CC and NX8300CE-CC are 1 310 nm Multiple Quantum Well (MQW) structured Distributed Feed- Back (DFB) laser diode coaxial modules with an internal optical isolator. These modules are ideal as a light source for Synchronous Digital Hierarchy (SDH) system, STM-16, short-haul S- 16.1 and long-haul L-16.1 ITU-T recommendations. FEATURES • Internal optical isolator • High-speed response tr = 40 ps, tf = 100 ps • Peak emission wavelength ?p = 1 310 nm • Optical output power Pf = 2.0 mW • Wide operating temperature range TC = 0 to +75°C • InGaAs monitor PIN-PD • With SC-UPC connector • Based on Telcordia reliability
Out of stock
  • US$47.00
Add a different product to compare
    CONDITION:

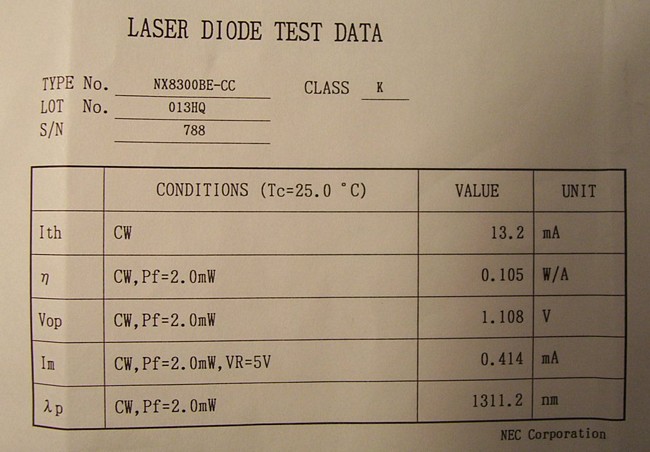

    new in original product pack, with actual test sheet.

  • DIM Weight
    0.2000 kg
  • Store Part No.
    OSC-LDS-D1300-022C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      NEC
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
