3.6km to 26km Lucent/AT&T standard SM bare fiber spool. Low attenuation.
Next image
Zoom image

3.6km to 26km Lucent/AT&T standard SM bare fiber spool. Low attenuation.


Not rated yet

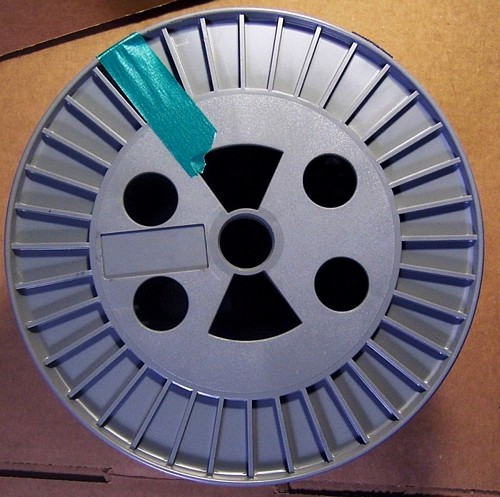

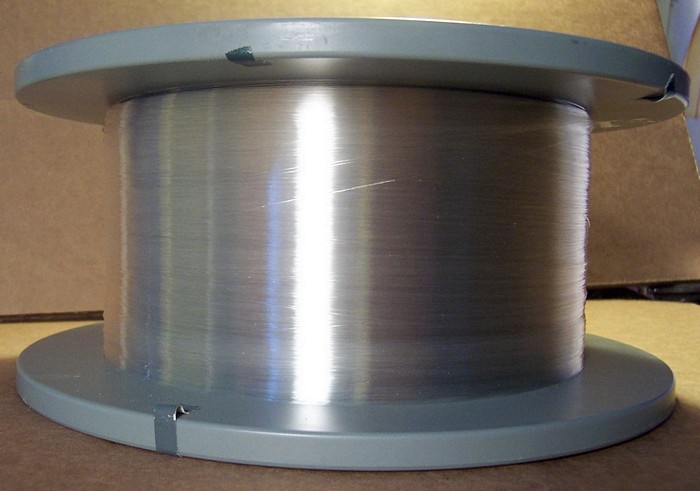

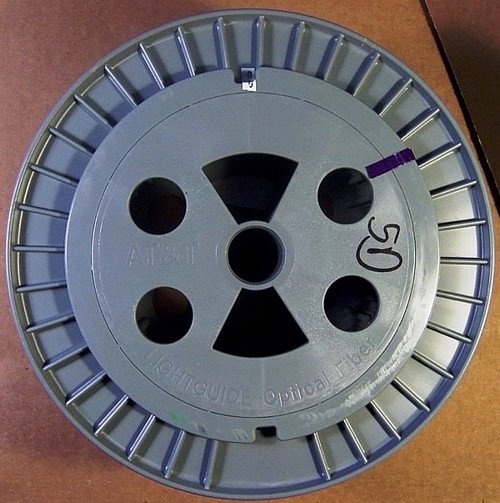

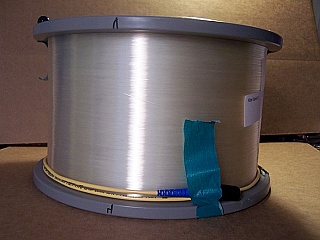

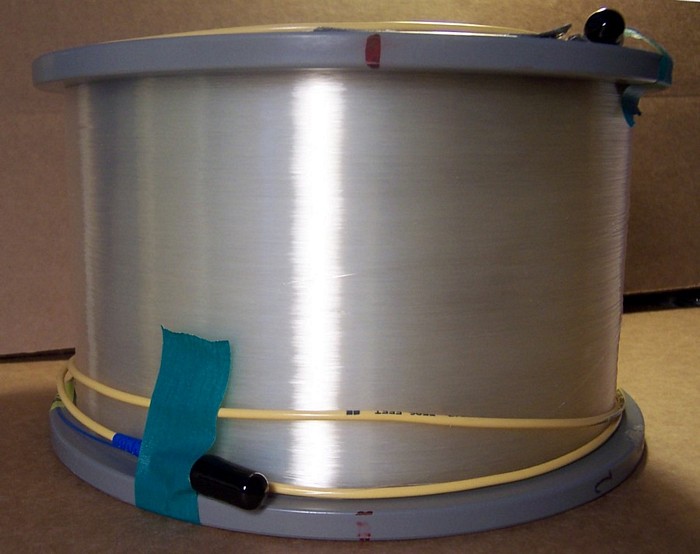

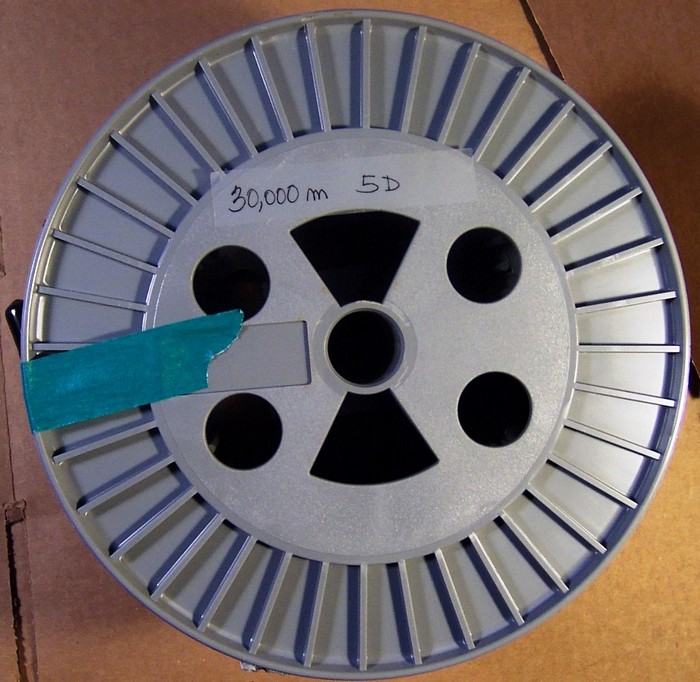

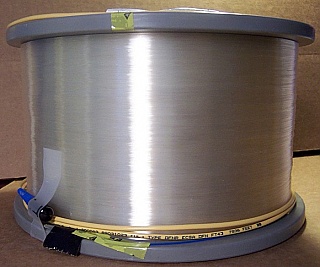

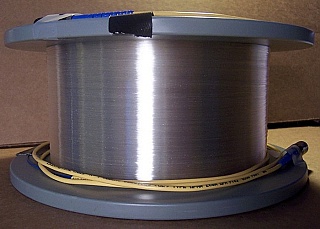

On sample A, B, C, D in photos 1-17 in sequence, we fusion-spliced two FC/PC connectors in 3mm-cables. See sample E without fiber connectors at last 4 photos.

Based on following tested zero dispersion wavelength data on Sample-A and Sample B, we conclude that it is G.652 fiber (see G.652 fiber info at 2nd pdf link and also at 1st pdf link below) : Zero dispersion wavelength: 1306.44 nm or 1304.09nm, dispersion slope at zero dispersion wavelength: 0.0876 or 0.0869 ps /(nm2*km), tested by our local dispersion-test contractor at last pdf link below (see spool 1 and spool 2 in test report), with GN Nettest dispersion receiver FD440 RX and transmitter FD440 TX, in July 2013.

Spools of Samples C, D, E are came with Sample A and Sample B together, we believe they are also standard SM fiber. But we cannot guarantee this. You can try Samples C, D, E, but two-way shipping fee is not refundable.

Store Part No. Choose spool sample Qty Price Buy

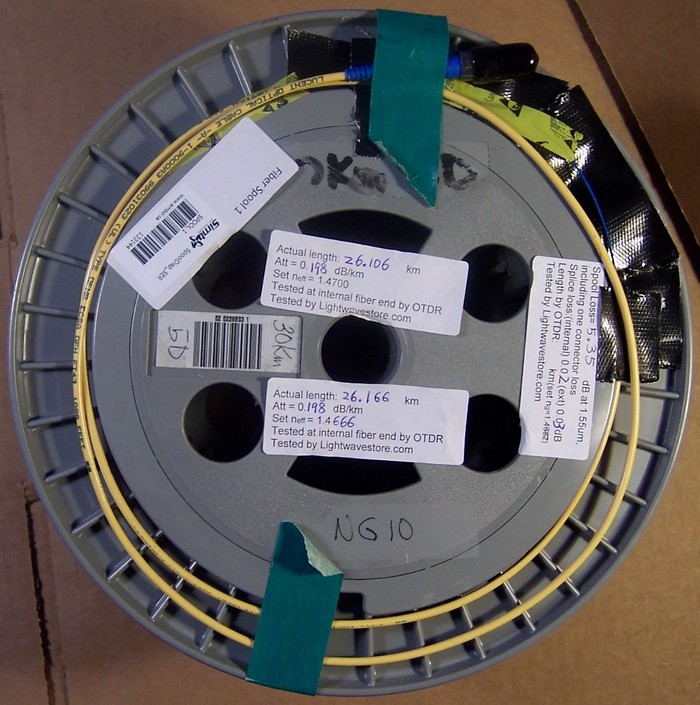

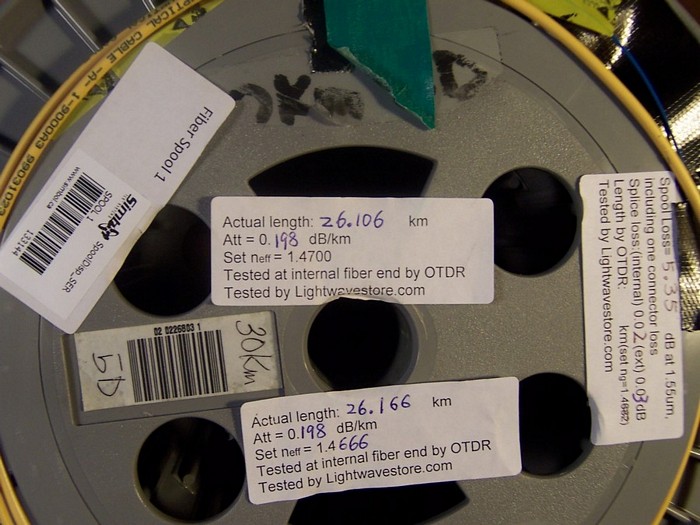

FSC-SMF-SPOOL-360CA Sample A, 26.1km, with 2 FC/PC connectors, with actual dispersion test data and our lab loss/attenuation test data. Very low loss. 1 US$600.00 + -

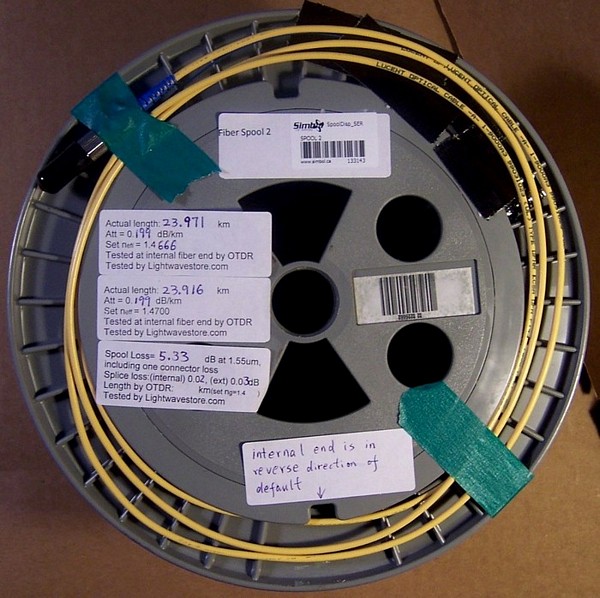

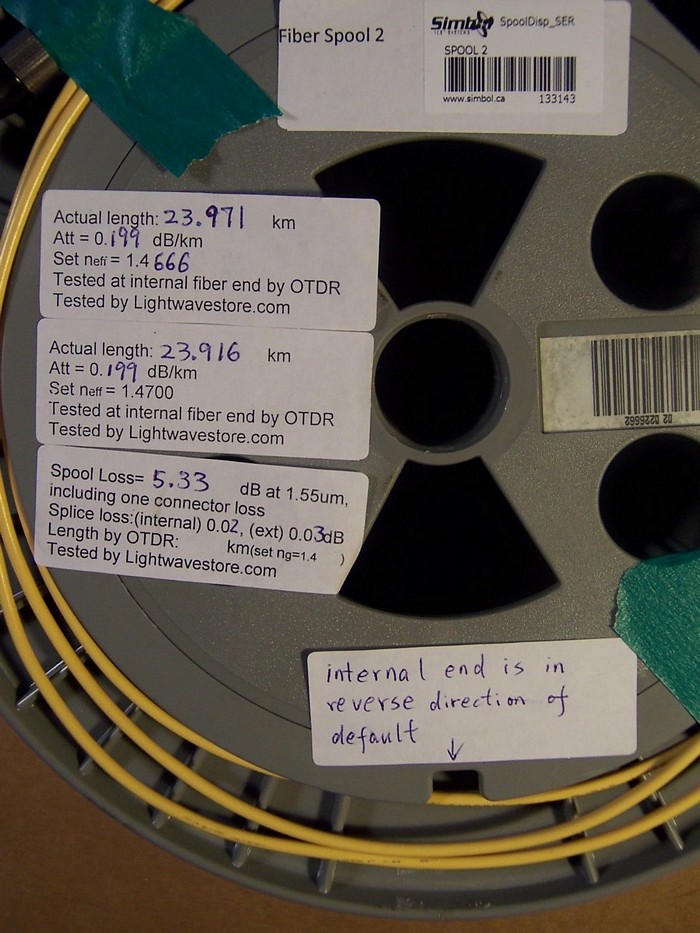

FSC-SMF-SPOOL-360C0 Sample B, 23.9km, with 2 FC/PC connectors, with actual dispersion test data and our lab loss/attenuation test data. Spool loss is not bad, though there there is little bending loss at internal end. 1 US$555.00 + -

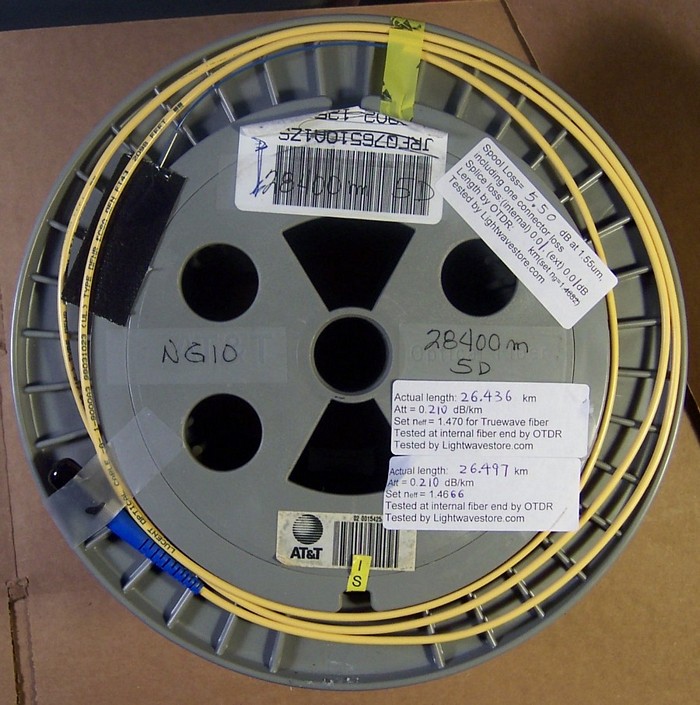

FSC-SMF-SPOOL-360C1 Sample C, 26.4km, with 2 FC/PC connectors, with our lab loss/attenuation test data. Low loss. 1 US$515.00 + -
Add a different product to compare
    CONDITION:

    Good cosmetic condition, fiber roll looks good or very good. Without any test data from manufacturer. Attenuation and fiber length is tested good from internal fiber end of each spool by OTDR at our lab, so each spool can be used for optical transmission test. See dispersion test data on Sample A Sample B at last pdf link above (spool 1 and spool 2 in test report).


  • DIM Weight
    4.0000 kg
  • Store Part No.
    FSC-SMF-SPOOL-360CA
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Choose spool sample

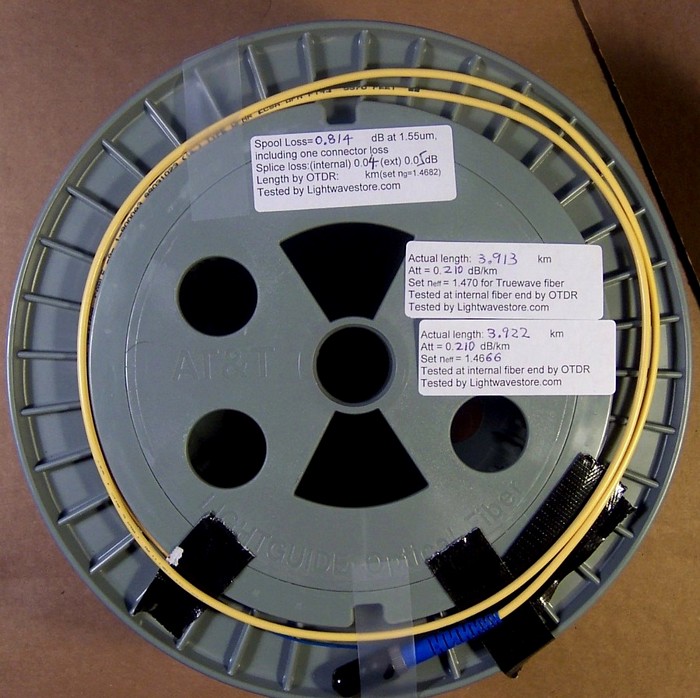

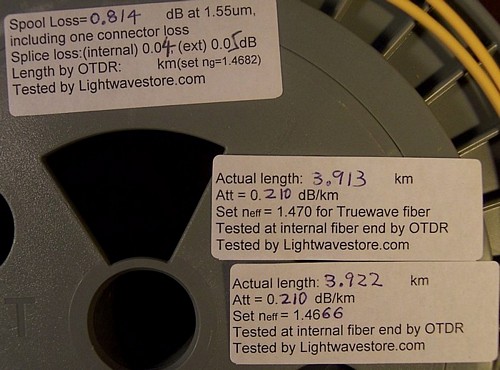

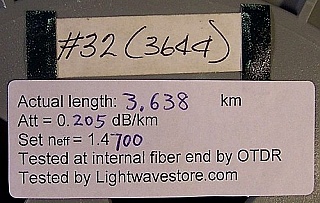

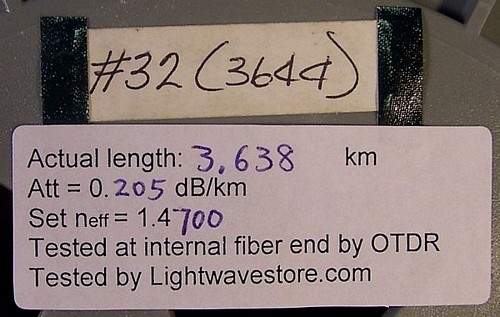

    Sample E, 3.6km, without fiber connectors. Low-height-version spool drum. With our lab attenuation test data., Sample D, 3.9km, with 2 FC/PC connectors, with our lab loss/attenuation test data. Low-height-version spool drum. Very low loss., Sample C, 26.4km, with 2 FC/PC connectors, with our lab loss/attenuation test data. Low loss., Sample B, 23.9km, with 2 FC/PC connectors, with actual dispersion test data and our lab loss/attenuation test data. Spool loss is not bad, though there there is little bending loss at internal end., Sample A, 26.1km, with 2 FC/PC connectors, with actual dispersion test data and our lab loss/attenuation test data. Very low loss.
  • Manufacturers
    • Manufacturer
      Lucent
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
