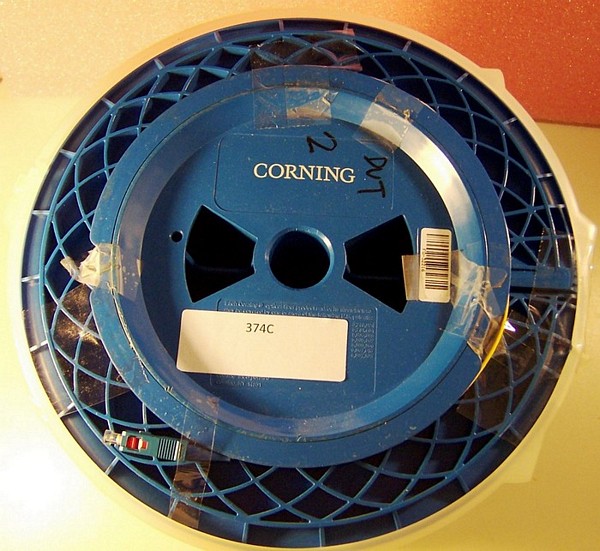

34.41km SMF-28 bare fiber spool, with one SC/PC and one LC/PC connector

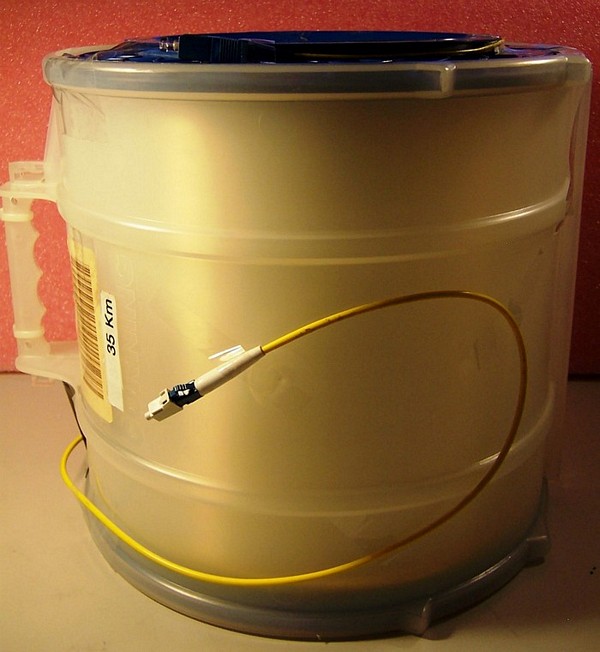

With hard plastic cover over the fiber roll, and there is handle on the plastic cover, so you can easily move the spool around your lab. Both internal end and external end connectors of fiber spool are accessible, so you can use it like mini test box for optical transmission test. With one SC/PC and one LC/PC connector in 1.6mm or 3mm cable at two ends.

See year 2002 datasheet in 1st pdf link and year 2000 datasheet in 2nd pdf link below.

PDF datasheet 20.9 kB
Similar-model PDF datasheet 20.9 kB

CONDITION:

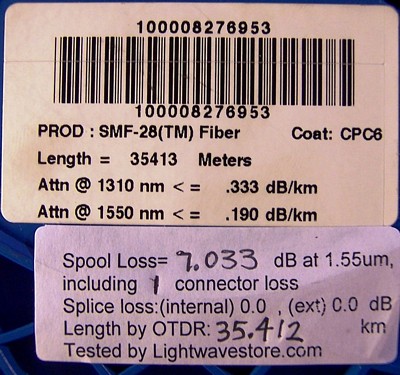

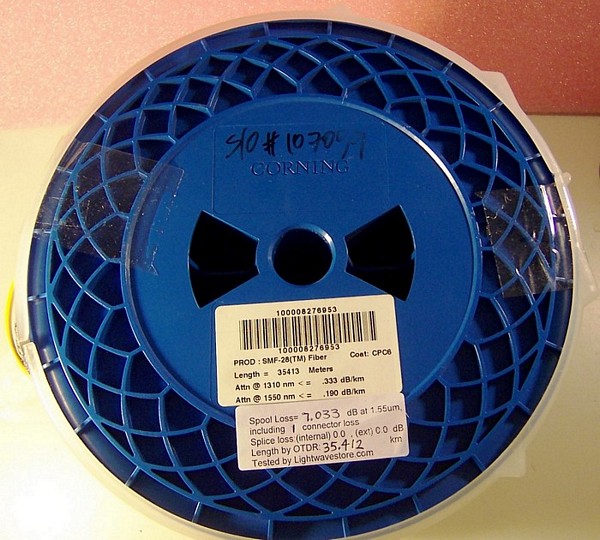

Good cosmetic condition. There is some cracks on plastic cover, but the cover and handle are still ok. Fiber roll is well winded on the drum. Fiber loss is verified well and matches the product label well (7.033 dB). Tested fiber length is 35.412km by OTDR at our lab, which is within instrument accuracy, considering the factors of group index of refractive deviation (we set Neff as 1.4682) and extra fiber pigtail length spliced on each end of fiber spool. So fiber length is in full original length. See our loss and length test result at the label of last photo.

DIM Weight

7.3000 kg

Store Part No.

FSC-SMF-SPOOL-374C

Manufacturers
- Manufacturer
  Corning
