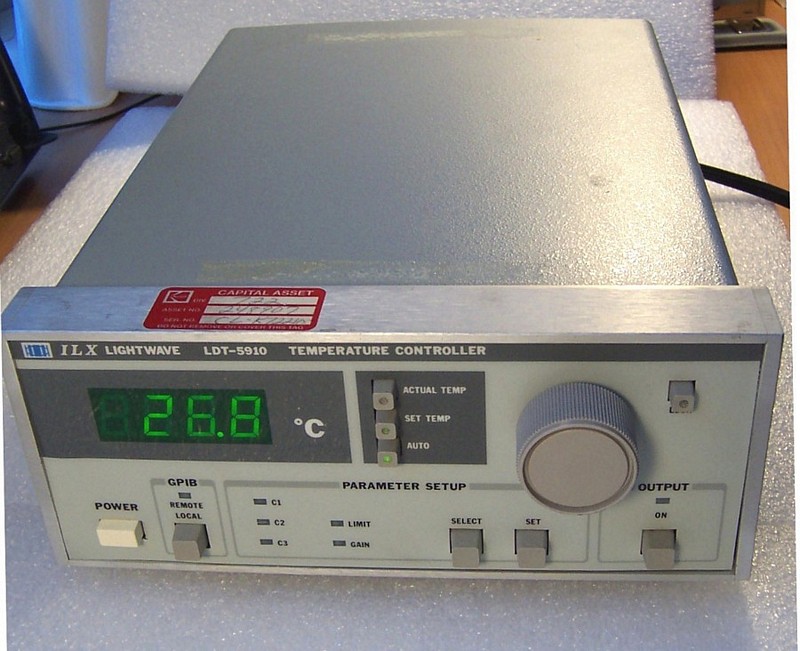

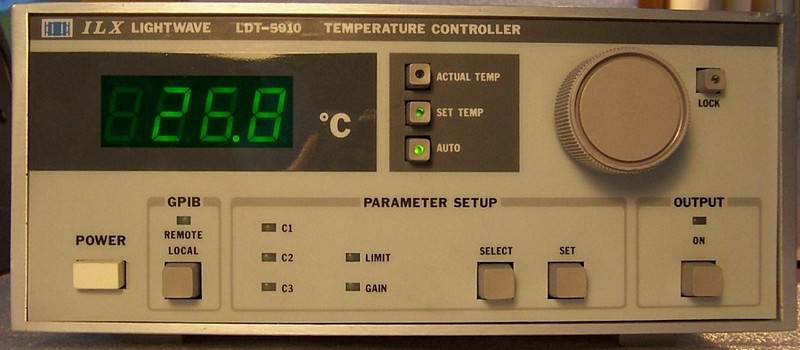

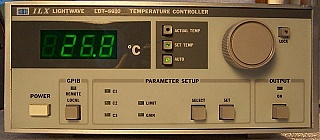

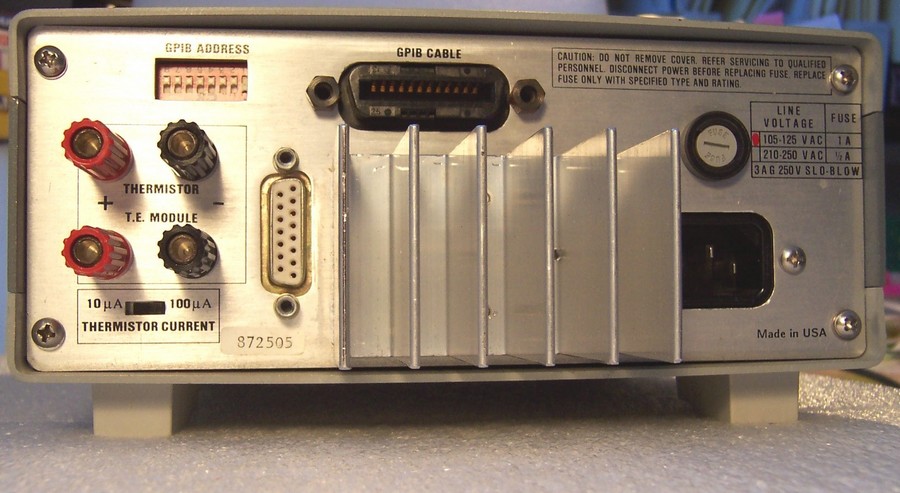

4.6A, 15W, 0.1C temperature controller. ILX model: LDT-5910. Tested working to drive laser temperature. The Internal power supply may produce some electrical noise. You can return if not satisfied, but 2-way shipping fee is not refundable.

Features
•Max Current Output: 4.6 A
•Max Output Power: 15 W (Typical)
•Display Resolution of 0.1 Degree Centigrade
•Output Current Limit Control to Safely Operate all TE Coolers
•Configurable for a Variety of Thermal Sensors

Description

The ILX Lightwave LDT-5910 The LDT-5910 is a microprocessor-based, precision thermoelectric temperature controller designed for temperature control of laser diodes, detectors and other temperature sensitive devices. The LDT-5910 can be used for laser diode testing, laser diode frequency stabilization, IR detector cooling, and to determine the characteristics of electronic devices.

The LDT-5910 combines high analog stability with the versatility of a microprocessor-based instrument. The internal microprocessor controls the operation of the LDT-5910 and performs the non-linear conversion of thermistor resistance to temperature based on three user-defined constants. You can configure the LDT-5910 to operate with a wide variety of thermistor temperature sensors and TE modules. The model 1227 GPIB/IEEE-488 interface allows remote programming and completely automated control of the LDT-5910.

PDF user guide 20.1 kB

Manufacturers
- Manufacturer
  ILX
