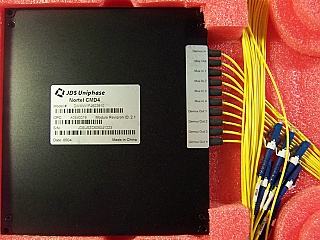

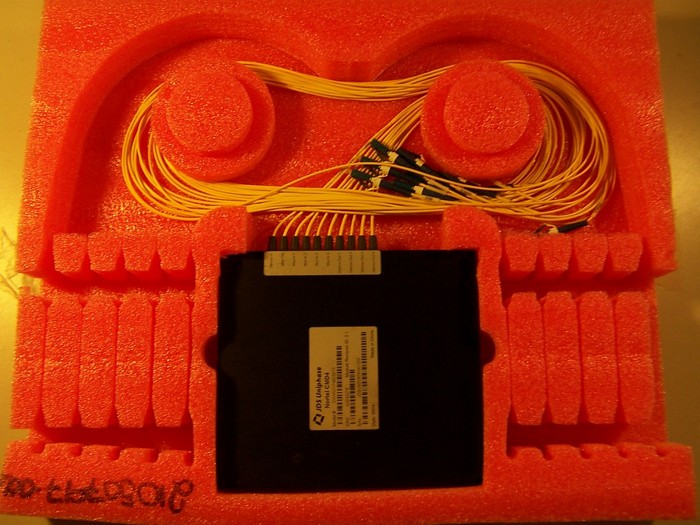

4 Channel 100GHz Mux and Demux Module with VOA. It includes one 1x4 100GHz mux and one 1x4 100GHz demux, and built-in VOA. Nortel CMD4. JDS P/N: DWMW1F4603910. "Sell As Is".

All fibers are in 1.6mm cable and with LC/PC connectors. By comparing with other similar model test data, we guess "430" in model number means 19460-19490 GHz, i.e., 4 channel wavelengths: from 1538.19 to 1540.56nm. But we cannot guarrantee this. There is electrical interface at botton of module (see last photo below). We do not know how to use it, so it is "Sell As Is". You may return, but two way shipping fee is not refundable.

Manufacturer test data of sample 1 20.8 kB
Manufacturer test data of sample 2 20.8 kB
