40dB IR safety filter, KG-3. Avoid 1.0-1.6um light. For Noyes handheld fiber optic microscope

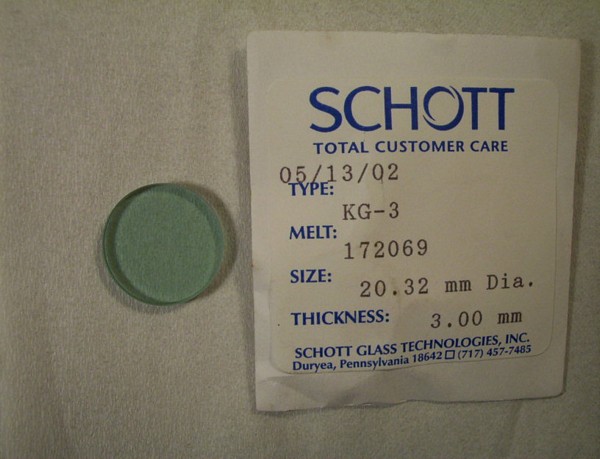

SCHOTT KG3 filter. With 1.1-1.6um light in fiber, you can still check the fiber connector safely. This filter looks transparent or light green. It is most useful if optical fiber is launched with 1.3um/1.55um telecom light. It can also eliminate 980nm light, but we recommend to use SG39 filter instead (see store product code: OLTP-FIB-SCOPE-030C).

Note: It is not safe enough if there is high power laser inside fiber.

Colored glass filters are made from optically polished highest quality Schott colored optical glass. The spectral properties of these filters are uniform over the entire aperture and independent of angle of incidence. Colored glass filters can be used alone or in conjunction with monochromators or interference filters to isolate various spectral regions.

HTML datasheet 17.9 kB
