50GHz C-band interleaver. Model: FS50W-LT3C. with RTD-based internal TEC. Operating at 71.7 C degree temperature

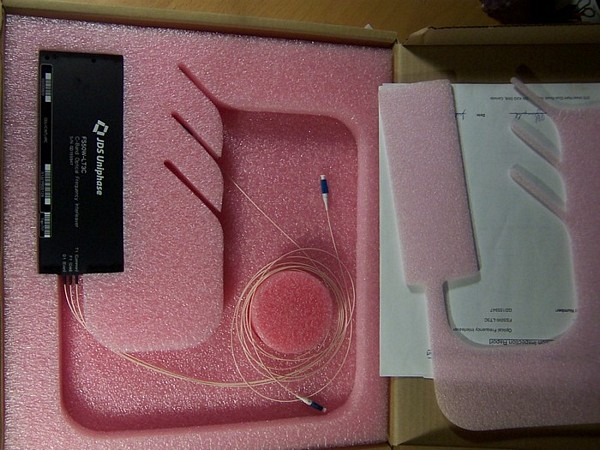

100GHz-to-50GHz C-band interleaver. With 3 LC/PC connectors. See photos belows from actual module for more info.

We verified that Pin3: RTDB1 and Pin4: RTDB2 are internally connected. So the pinout is same as the 1st pdf link below. Basically you need connect two heater pins and two RTD tempearture-sensor pins to your temperature controller (many types of temperature controllers support RTD temperature sensor). Then you can easily set interleaver to required temperature (71.7 C).

PDF user guide 20.1 kB
Manufacturer test data of sample 1 20.1 kB
Manufacturer test data of sample 2 20.1 kB

Manufacturers
- Manufacturer
  jds
