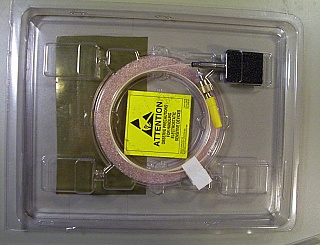

51.84Mb/s optical PIN-TIA receiver. Bandwidth: 49MHz. 1.31/155um. Single-mode fiber. With HMS connector. JDS model: ERM501 FJ-S / HMS

4-pin electrical leads. Single-mode 900um-bufferred fiber with HMS connector. Single-mode fiber is verified by fiber scope at our lab. FJ-S in model number means single-mode fiber jumper. See pin-out at 1st pdf link and user guide at 2nd pdf link below. The ERM501 and ERM504 optical receiver modules include InGaAs PIN photodiode and GaAs transimpedance amplifiers for SONET applications. The ERM501 is designed for use in 51.84-Mbit/s systems and has a sensitivity of -43 dBm, while the ERM504 is designed for 155.52-Mbit/s transmission systems and has a sensitivity of -38 dBm. Each module requires only one +5V source and comes in a 4-pin fiber-pigtailed packaged.

Similar-model PDF datasheet 18 kB
PDF user guide 18 kB

Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal	Discount
From $500	2 %
From $750	3 %
From $1000	4 %
From $1250	5 %
From $1500	6 %
From $1750	7 %
From $2000	8 %
From $2500	9 %
From $3000	10 %

Manufacturers
- Manufacturer
  EPITAXX
