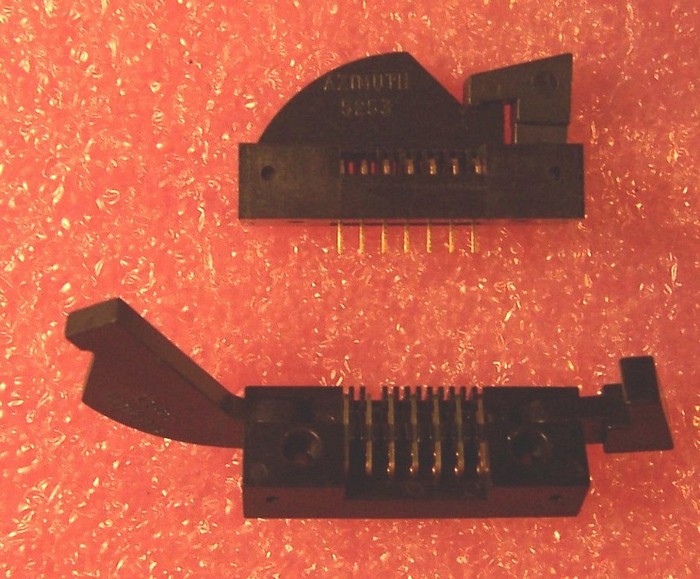

7-pin butterfly terminal/socket with clamp, to make 7-pin or 14-pin butterfly laser mount. Azimuth P/N: P/N: 5253-100-7-S2. One plastic teeth is missing or heavily bent. `Sell As Is`, `No Return`.
Next image
Zoom image

7-pin butterfly terminal/socket with clamp, to make 7-pin or 14-pin butterfly laser mount. Azimuth P/N: P/N: 5253-100-7-S2. One plastic teeth is missing or heavily bent. `Sell As Is`, `No Return`.


Not rated yet
Pin pitch is 0.1", so it fits standard proto-board and breadboard. You may use them to make customized 7-butterfly laser mount, such as 10Gb EML. Price is for one 7-pin terminal/socket only. Note: The leads of this 5253-100-7-S2/R2 are only 1/8” , 0.125” long. The diagram in 1st pdf link of specification is for general features. 0.25” long leads is true for 5253-100-7-S/R (see http://www.lightwavestore.com/store/product.php?productid=20982&cat=363&page=1 ), not for this 5253-100-7-S2/R2. It would be same as the socket used in Newport 740 series and ILX LDM 4980 series 14-pin butterfly laser mounts (see last 2 pdf links below), but you may not be able to simply replace the sockets of Newport or ILX laser mount. There are three different pin version/profiles 5253-100-7-S/R, 5253-100-7-S1/R1, 5253-100-7-S2/R2, you have to check your PCB of laser mount to figure out which version fits your PCB.
Out of stock
  • US$5.50
Add a different product to compare
    CONDITION:

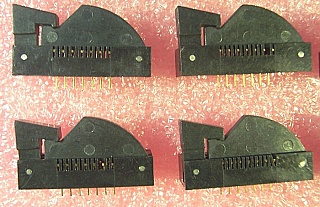

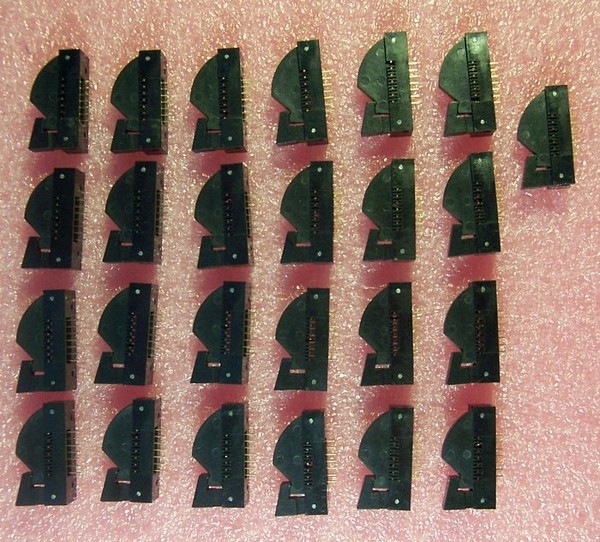

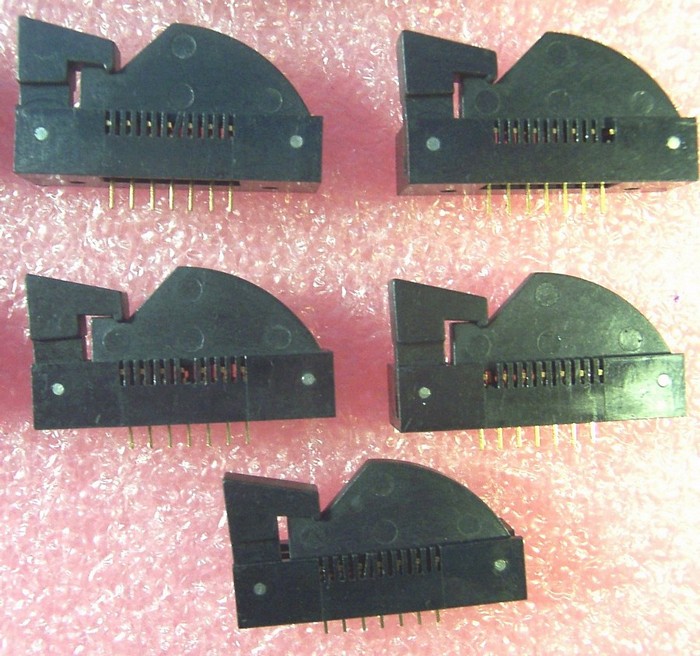

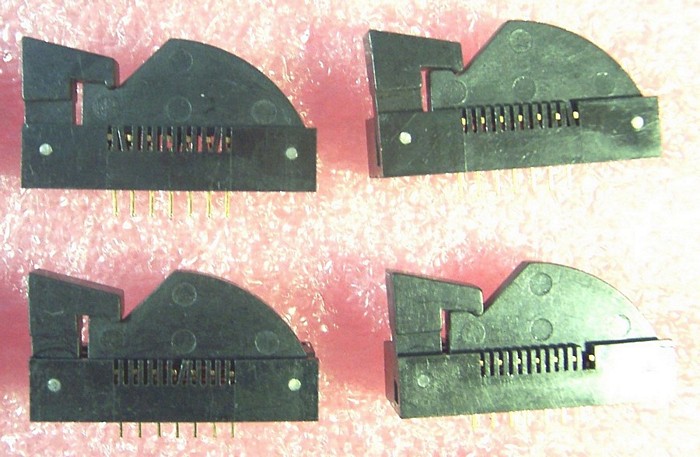

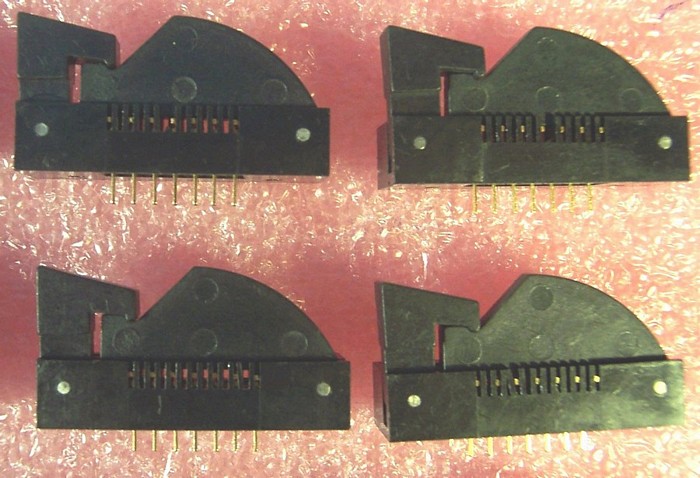

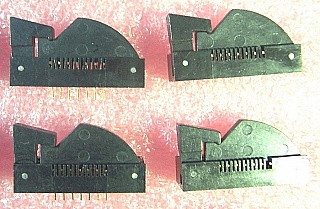

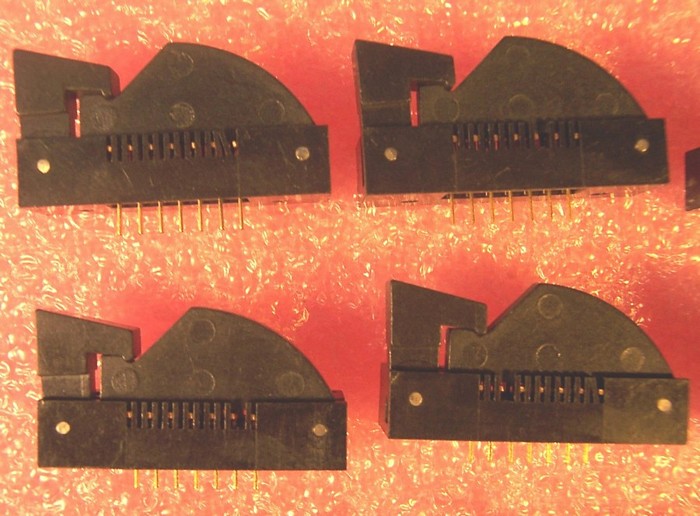

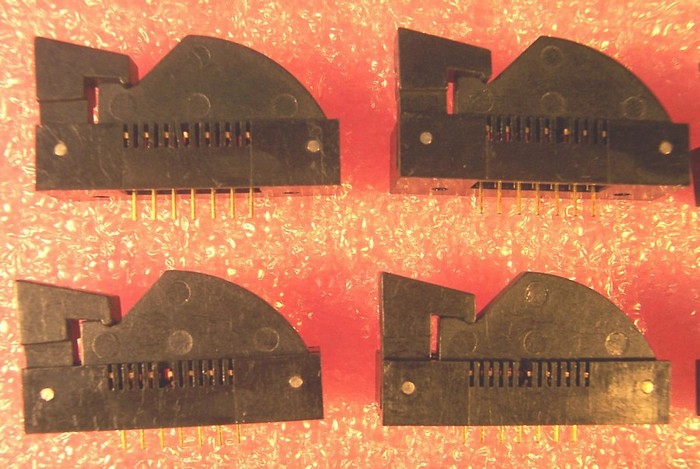

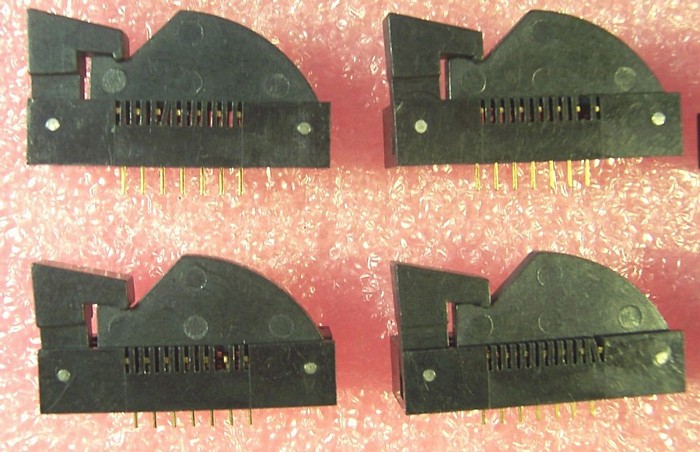

    Though they are not used, but due to previous poor packing, one plastic teeth is missing or heavily bent, see last 7 photos below for actual items. Ìt would be still ok for your research. `Sell As Is`, `No Return`.

  • DIM Weight
    0.0300 kg
  • Store Part No.
    OTI-LDC-504E
