Kink-free power > 250mW, operating power > 230mW. Peak wavelength: min: 973.5nm, max: 975.0nm. 250um-coating bare fiber pigtail without connector.

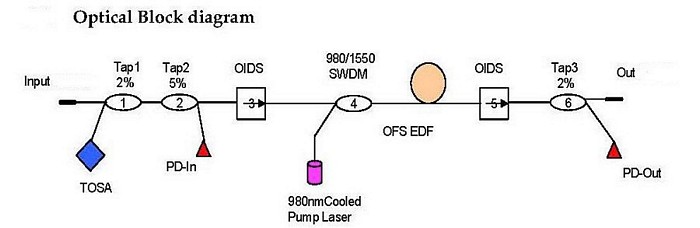

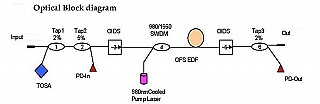

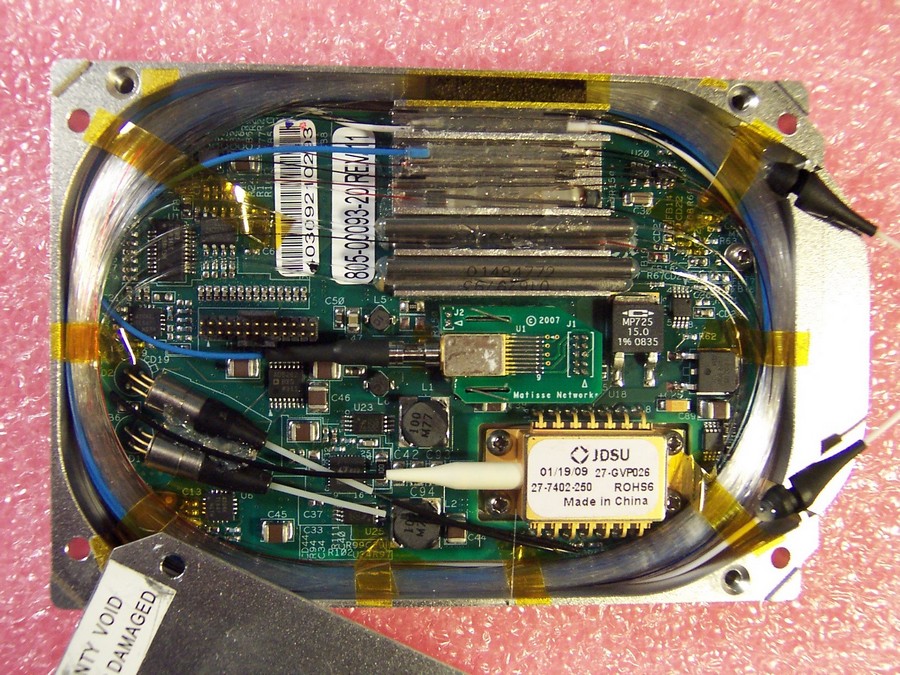

This laser is inside unused EDFA module. You will buy whole EDFA module. We tried 15pc of 70pc EDFA module inventories, all these 15pc were verified working, but we cannot guarantee they can meet your requirement, so we sell it as parts. EDFA module was made by Oplink, it includes 974nm laser, er-doped fiber, two 2-stage isolators, 980/1550nm WDM, photodiodes, etc. See optical components at last photo below. There is also 2.5Gb DWDM TOSA 120KM transmitter module with 9 electrical leads at the middle of the module, one sample shows marking "Cyoptics 1610F042" (most of samples do not have this mark), we cannot find pdf specification. We sell EDFA module only for parts.
The JDSU 2700 Series of 980 nm pump modules utilizes a planar construction with chip on subcarrier. The high power JDSU laser chip is hermetically sealed in a low-profile, epoxy-free and flux-free 14-pin butterfly package, fitted with a thermistor, thermoelectric cooler, and monitor diode. The module meets the stringent requirements of the telecommunications industry, including Telcordia™ GR-468-CORE for hermetic 980 nm pump modules.
The 2700 Series pump module uses fiber Bragg grating stabilization to "lock" the emission wavelength and provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback.Wavelength selection is available for applications requiring the highest performance in spectrum control with the highest powers available.
Key Features
High kink-free powers to 300 mW
Low-profile, epoxy-free, and flux-free 14-PIN butterfly planar package
Fiber Bragg grating stabilization
Wavelength selection available
Integrated thermoelectric cooler, thermistor, and monitor diode
High dynamic range
Excellent low power stability
Applications
Dense wavelength division multiplexing (DWDM) EDFAs for small package designs
High bit rate, high channel count EDFAs
CATV distribution
Compliance
Telcordia GR-468-CORE
