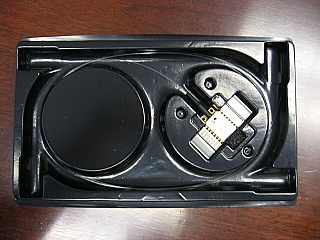

977nm 160mW pump laser with FBG stabilizer. JDSU(SDL) product code: SDLO-26-7715-180-KE. Good test result but kink-free power is not perfect
Next image
Zoom image

977nm 160mW pump laser with FBG stabilizer. JDSU(SDL) product code: SDLO-26-7715-180-KE. Good test result but kink-free power is not perfect


Not rated yet

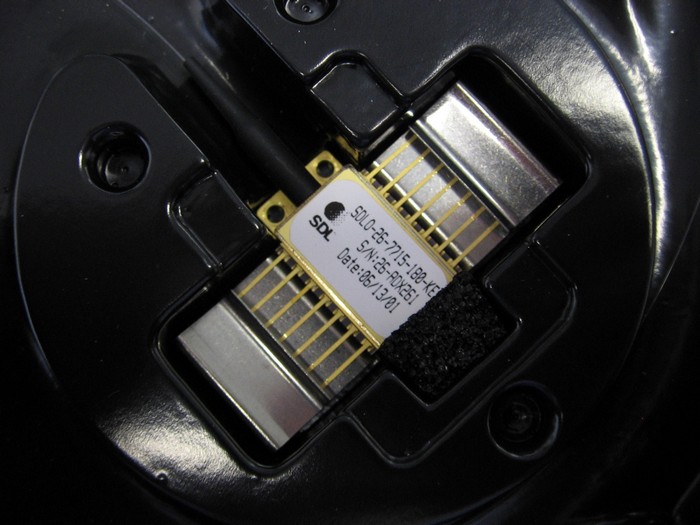

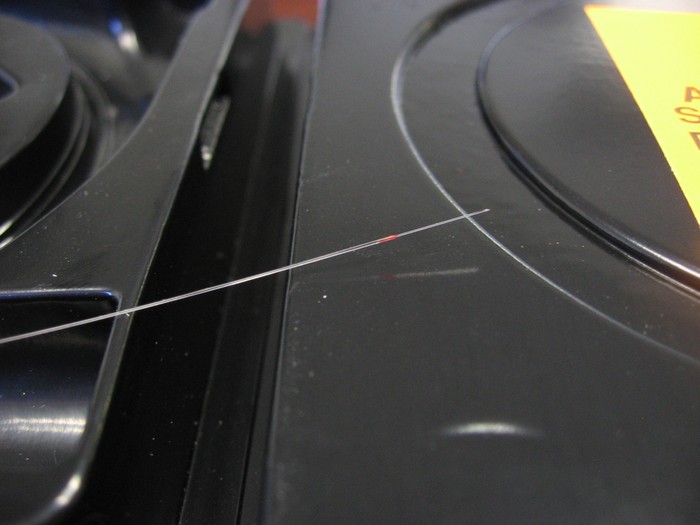

Operating power : 160mW. Peak wavelength is around 977.0nm +/-1nm. 250um-coating bare fiber pigtail without connector. The JDSU 2600 Series of 980 nm pump modules utilizes a planar construction with chip on subcarrier. The high power JDSU laser chip is hermetically sealed in a low-profile, epoxy-free and flux-free 14-pin butterfly package, fitted with a thermistor, thermoelectric cooler, and monitor diode. The module meets the stringent requirements of the telecommunications industry, including Telcordia™ GR-468-CORE for hermetic 980 nm pump modules.The 2600 Series pump module uses fiber Bragg grating stabilization to “lock” the emission wavelength and provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback.Wavelength selection is available for applications requiring the highest performance in spectrum control with the highest powers available.Key FeaturesHigh kink-free powers to 180 mW Low-profile, epoxy-free, and flux-free 14-PIN butterfly planar package Fiber Bragg grating stabilization Wavelength selection available Integrated thermoelectric cooler, thermistor, and monitor diode High dynamic range Excellent low power stabilityApplicationsDense wavelength division multiplexing (DWDM) EDFAs for small package designs High bit rate, high channel count EDFAs CATV distributionComplianceTelcordia GR-468-CORE
Out of stock
  • US$250.00
Add a different product to compare
    CONDITION:

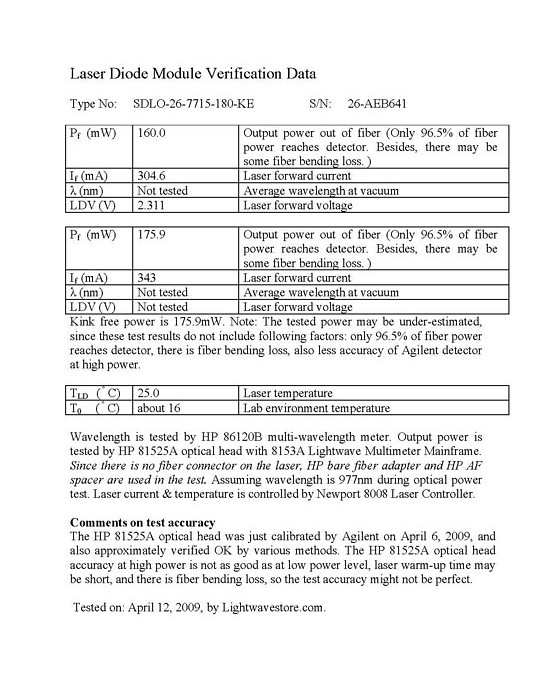

    new in original product case, without manufacture test sheet. All lasers are tested OK our lab, operating output power and drive current meet specification, sample average wavelength is about 976.4nm at our lab. Kink-free power of each laser is verified is near 180mW (>168mW at least) at our lab. See our test reports at last two photos below.

  • DIM Weight
    0.4500 kg
  • Store Part No.
    OSC-PUMP-980-020D
