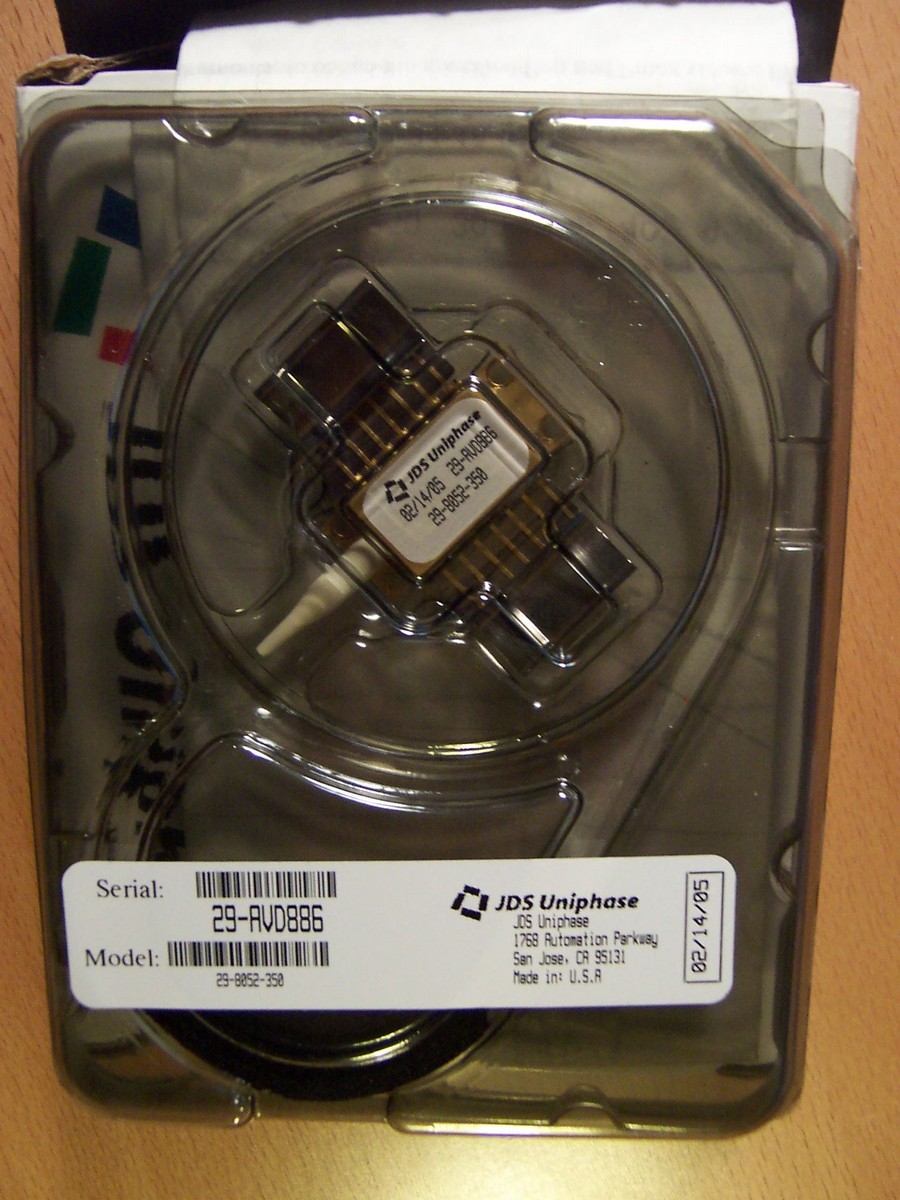

Kink-free power > 350mW, operating power : 315mW. Peak wavelength: 980.84nm. 250um-coating bare fiber pigtail without connector. Made in USA.Fiber Bragg Grating Stabilized 980 nm Pump Modules The JDSU 2900 Series 980 nm pump module utilizes a planar construction with chip on subcarrier. The high power JDSU laser chip is hermetically sealed in a low-profile, epoxy- and flux-free 14-pin butterfly package and fitted with a thermistor, thermoelectric cooler, and monitor diode. This product uses a polarization maintaining fiber (PMF) pigtail that allows excellent side mode supression ratios (SMSR) over a very wide dynamic range. The 2900 Series pump module uses PM fiber Bragg grating stabilization to “lock” the emission wavelength. It provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback. Wavelength selection is available for applications that require the highest performance in spectrum control with the highest available powers.Key FeaturesVery high kink-free powers to 500 mW Low-profile, epoxy-free, and flux-free 14-pin butterfly planar package with PM fiber Fiber Bragg grating stabilization Wavelength selection available Integrated thermoelectric cooler, thermistor, and monitor diode High dynamic range Excellent low power stabilityApplicationsNext generation dense wavelength division multiplexing (DWDM) erbium doped fiber amplifiers (EDFAs) requiring the highest power with “locked” wavelength emission Reduced pump-count EDFA architectures Very long distance cable television (CATV) trunks and very high node count distributionComplianceTelcordia GR-468-CORE
