About-825nm near-2mW SLD.   14-pin DIL package.  Superlum model: SLD-381
Next image
Zoom image

About-825nm near-2mW SLD. 14-pin DIL package. Superlum model: SLD-381


Not rated yet

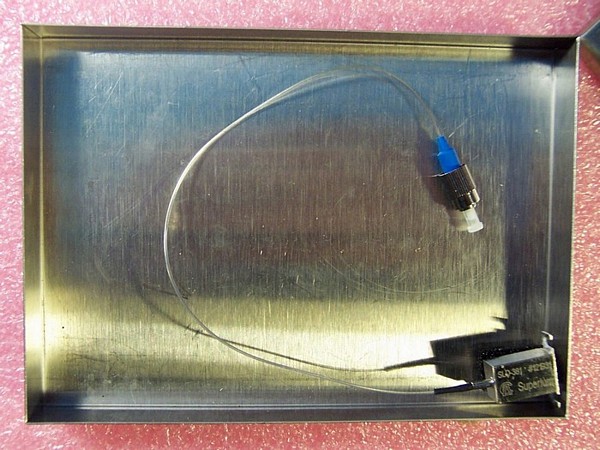

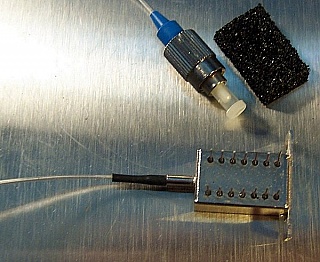

SM 900um-bufferred fiber with FC/PC connector. DIL module package.

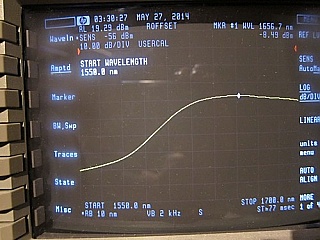

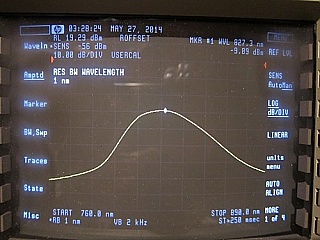

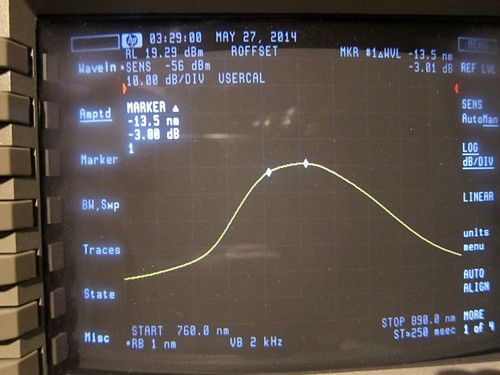

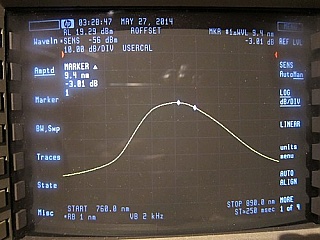

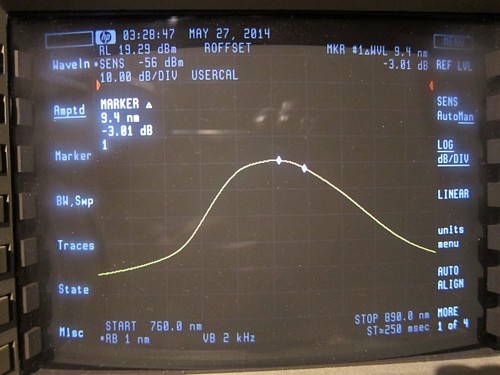

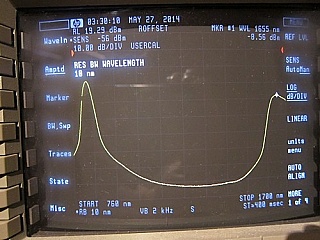

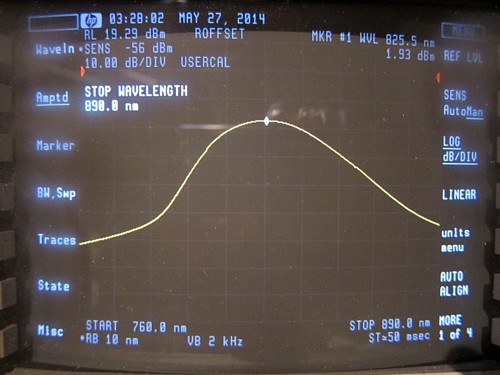

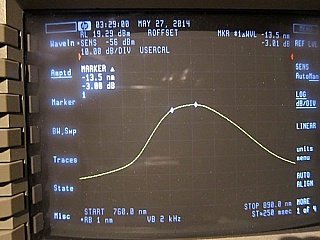

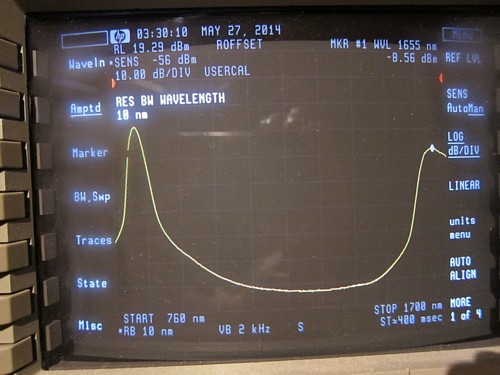

See general specification at 1st and 2nd pdf links below. 3-dB bandwidth specification: typical 20nm. See pinout at the 4th pdf link below. We do not know full P/N, To be safe, we assume it is medium power version SLD-381-MP (see specification at 1st pdf link below) rather than high power version SLD-381-HP (see specification at 2nd pdf link below). With Superlum PILOT-2 laser controller of our Store Product Code: OTI-LDC-070C, we tested it at 140mA, with FC/PC-FC/APC SMF-28 fiber jumper (FC/APC connector can avoid power instability due to 4% endface reflection in power measurement). See our test results at last 7 photos below. Center wavelength is about 825.5nm. There is near 10dB-lower 2nd peak at 1657nm. Tested total power is about 2.49dBm, so actual output power in fiber around main peak would be a little more than 2dBm after deducting 2nd peak power and one connector loss of FC/PC-FC/APC jumper. Our OSA instrument is not fully calibrated, so this test result is only approximate.

In stock (Only 1 left in stock)
  • US$760.00
Qty:
Add a different product to compare
    CONDITION:

    Seems unused, without product pack, without manufacture test data.


  • DIM Weight
    0.5000 kg
  • Store Part No.
    OSC-SLD-SLED-002F
