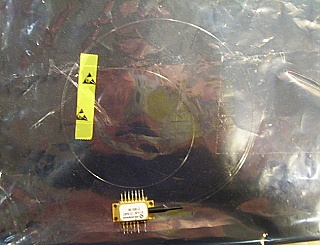

about-980.5nm 300mW kink-free pump laser with FBG stabilizer. JDSU product code: 27-8052-300. Pin-13(case ground) is missing

Kink-free power > 300mW, operating power : 280mW. Peak wavelength: min: 979.5nm, max: 981.5m. JDSU product code: 27-8052-300. 250um-coating bare fiber pigtail without connector. The JDSU 2700 Series of 980 nm pump modules utilizes a planar construction with chip on subcarrier. The high power JDSU laser chip is hermetically sealed in a low-profile, epoxy-free and flux-free 14-pin butterfly package, fitted with a thermistor, thermoelectric cooler, and monitor diode. The module meets the stringent requirements of the telecommunications industry, including Telcordia™ GR-468-CORE for hermetic 980 nm pump modules.The 2700 Series pump module uses fiber Bragg grating stabilization to "lock" the emission wavelength and provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback.Wavelength selection is available for applications requiring the highest performance in spectrum control with the highest powers available.Key FeaturesHigh kink-free powers to 300 mW Low-profile, epoxy-free, and flux-free 14-PIN butterfly planar package Fiber Bragg grating stabilization Wavelength selection available Integrated thermoelectric cooler, thermistor, and monitor diode High dynamic range Excellent low power stabilityApplicationsDense wavelength division multiplexing (DWDM) EDFAs for small package designs High bit rate, high channel count EDFAs CATV distributionComplianceTelcordia GR-468-CORE

CONDITION:

Removed from EDFA module, desoldered. Tested good at our lab. See our test report at last photo (wavelength was not tested). Pin-13 (case-ground) is broken when we removed laser from EDFA module, but you can connect laser case by screw instead, so it will not change performance at all. 14-pin leads are long enough to fit on Newport 14-pin laser mount. Without prduct pack. Fiber is 60cm long without connector.

DIM Weight

0.3000 kg

Store Part No.

OSC-PUMP-980-015E

PDF datasheet 18.2 kB
PDF user guide 18.2 kB

Manufacturers
- Manufacturer
  jds
