AFC EDFA module, L-band. P/N: SDFA1590RDM0PP. Saturated power at 1590nm: 91.65mW
Next image
Zoom image

AFC EDFA module, L-band. P/N: SDFA1590RDM0PP. Saturated power at 1590nm: 91.65mW


Not rated yet
Including one 1.48um 140mW Fitel pump laser and one 0.98um 160mW Corning Lasertron pump laser. With two FC/PC fiber connectors.We opened this module to debug the laser pinout. There is a isolator at input and another one at output port. There is no elecric chip inside. Pinout at pdf link below. To run this EDFA amplifier, you only need drive two pump lasers in the same way as to drive any standard 14-pin butterply lasers.
Out of stock
  • US$515.00
Add a different product to compare
    CONDITION:

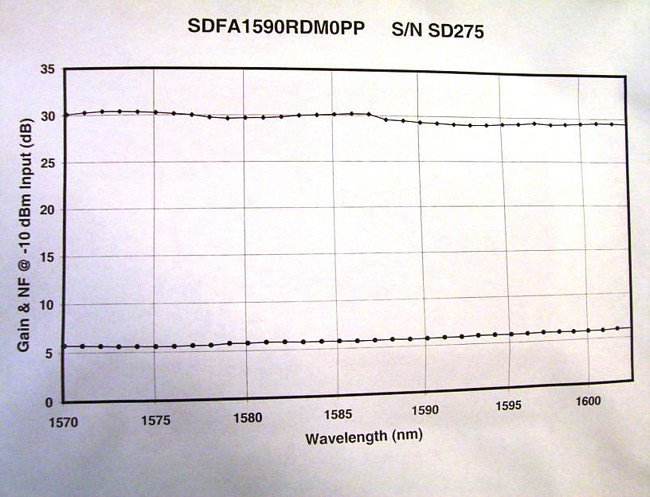

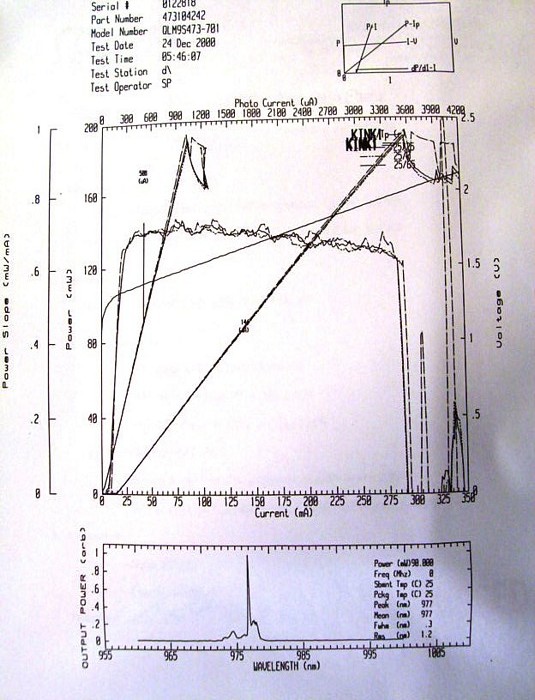

    In original product box. We opened this module to debug the laser pinout, so it is not brand new. With actual test sheets. Sample is verified working. About 18dBm output at -1dBm 1575nm input.

  • DIM Weight
    1.5000 kg
  • Store Part No.
    OMS-OAM-005E
