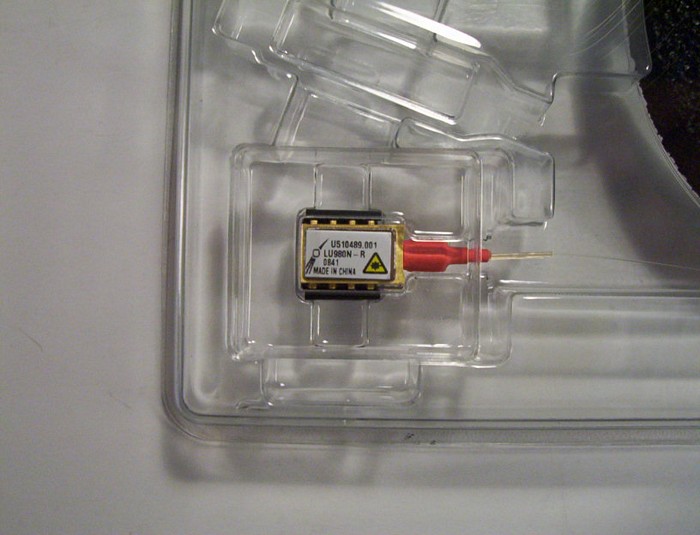

Kink free power >240mW. Operating output power 200mW (end of life). 8-pin minidil package. Bare fiber without fiber connectors. Last 12 photos below are tests sheets of two samples.General description:The Bookham LU9**X 980nm Pump Laser Module is the second generation uncooled pump module providing higher power for highly reliable amplification for metro, cross-connect or other single/multi-channel amplification applications. The LU9**X uses a Mini-DIL package enabling low-cost and small form-factor. The G07 ridge-waveguide laser diode inside has been designed for uncooled operation at high temperature and power levels. Submarine qualification of the G07 chip ensures high reliability even at 200mW, 70°C. External Fiber Bragg Grating (FBG) stabilization provides excellent wavelength and power stability over the entire temperature operating range.Features:• Operating temperature range from 0°C to +70°C (case)• 120 – 240mW linear power range over full temperature range• Polarization maintaining (PM) fiber• Low power dissipation• Mini-DIL housing for small size• G07 ridge-waveguide laser chip inside with Telecom reliability• Wavelength stabilized by fiber Bragg grating over entire operating range• Center wavelength at 974, 976 and 980nm• Telecordia GR-468-CORE compliant• RoHS compliantApplications:• EDFA's or EWDA's requiring low-to-medium power 980nm pump modules with low power consumption, small form-factor and low costData Sheet
