Avanex Powershaper FDS Dispersion Compensation Module (DCM) for 60km SMF in 1.55um C-band DWDW 50GHz-spacng, Type: SMF 60 Slope 50 GHz C-band.
Next image
Zoom image

Avanex Powershaper FDS Dispersion Compensation Module (DCM) for 60km SMF in 1.55um C-band DWDW 50GHz-spacng, Type: SMF 60 Slope 50 GHz C-band.


Not rated yet

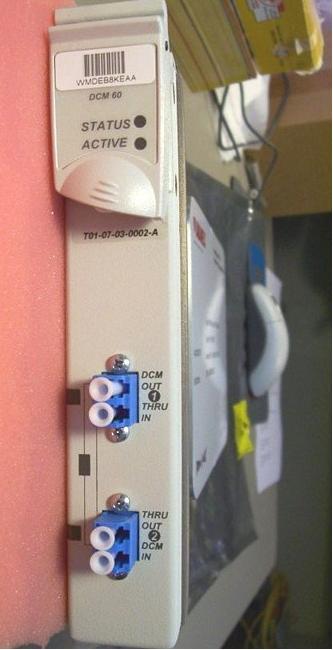

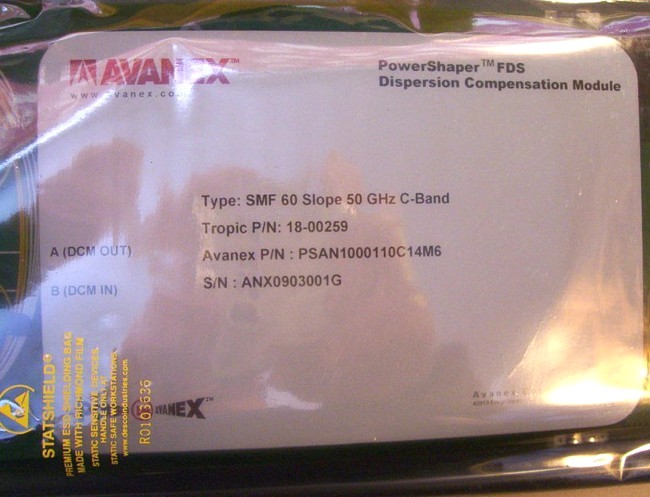

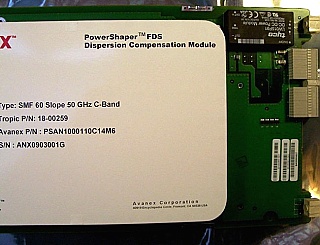

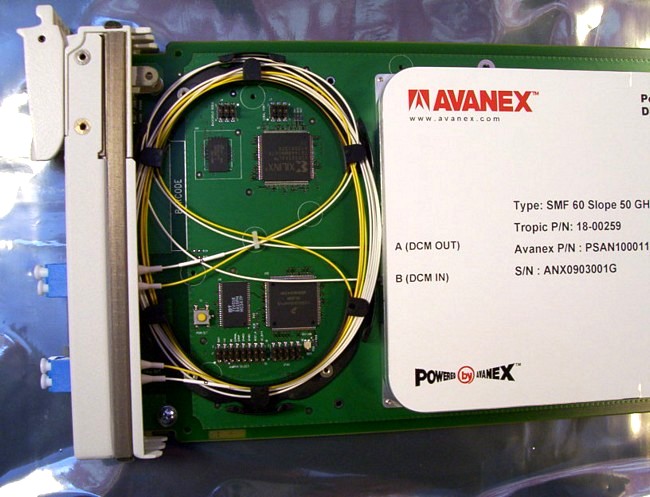

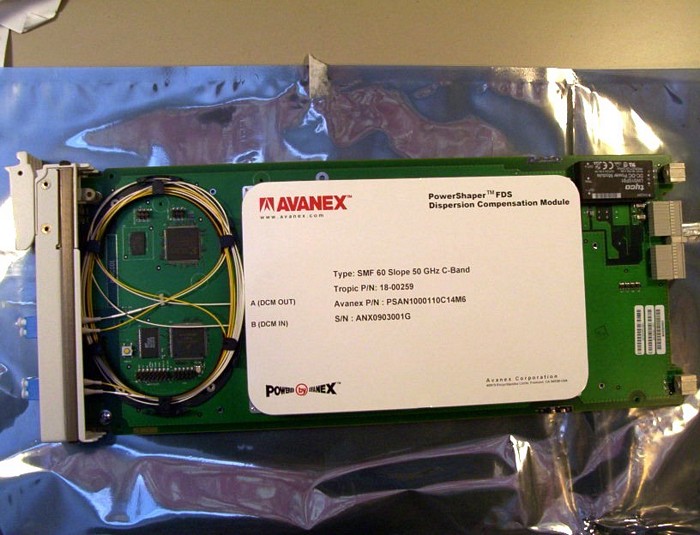

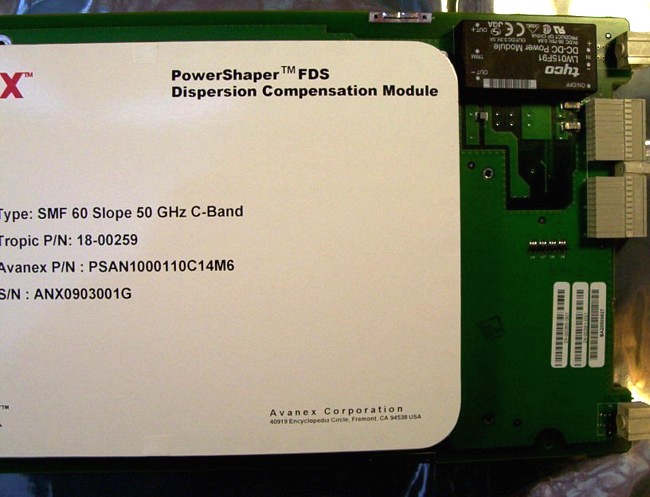

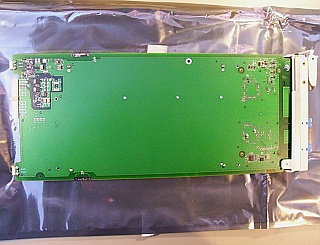

Tropic DCM 60 card. Card P/N: T01-07-03-0002-A.  Card model: WMDEB8KEAA. Used in Scientific Atlanta networks. Avanex Powershaper FDS Dispersion Compensation Module is within Tropic DCM card. FDS means Frequency Dispersion Synthesizer. Avanex module P/N: PSAN1000110C14M6, Tropic module P/N: 18-00259. There is an internal LC/-LC fiber jumper, its connectors mount on THROU-IN and THROU-OUT ports of front panel. There are no other optical parts on the PCB.

After reviewing the general datasheet in the pdf link below, we conclude that this Avanex DCM is fixed dispersion compensator with 100% slope compensation, compensating 60km standard single-mode fiber, for 50-GHz DWDM 1.55um C-band.

The Avanex PowerShaper™ Fixed Dispersion Etalon Compensator is an innovative chromatic dispersion compensation module based on Avanex’s patented cascaded Gires Tournois etalon technology. The device provides 100% slope and dispersion compensation for all fiber types or flat dispersion slope with low insertion loss and PMD. In addition, the product has an extremely small form factor and high input power handling. The PowerShaper™ Fixed Dispersion Etalon Compensator has passed rigorous system testing and evaluation by major system OEMs and Telcordia GR-1221 qualification.

FEATURES
• Small Form Factor
• Flat-Slope or 100% Slope
Compensation
• High Power Handling
• Totally Passive
• Versatile Design

In stock (Only 2 left in stock)
  • US$145.00
Qty:
Add a different product to compare
    CONDITION:

    new within original anti-static bag. Tested sample insertion loss in our lab meets specification (<6dB)


  • DIM Weight
    2.4000 kg
  • Store Part No.
    FSC-DCM-021C
Global Discount Details:

This product is qualified for global discount. The subtotal below is only for global discount enabled products

Subtotal Discount
From $500 2 %
From $750 3 %
From $1000 4 %
From $1250 5 %
From $1500 6 %
From $1750 7 %
From $2000 8 %
From $2500 9 %
From $3000 10 %
  • Manufacturers
    • Manufacturer
      Avanex
Customer reviews
Please sign in to add review
There are no comments yet. Be the first to leave a comment

We deliver worldwide mostly by Fedex air. Fedex priority: next day to USA, 1-3 day to other countries; Fedex economy: 2 day to USA, 2-5 day to other countries.

In Canada domestic shipping, we use UPS, Canada Post, or purolator express.

Same day shipping (Exception: Following categories: Passive Fiber Components, Fiber/Cable Spools, Part of Fiber Filter Components, Part of Fiber Patchcords/Pigtails, are in new location. We will ship in 0-2 days.)

We accept the following payment methods:Image result for visa mastercard discover logo, check, wire transfer for large order, paypal for small order, etc.
